Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

Test Meter PRO
SKU: TMP837
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

In Stock - Available Next Day
Recommended Add-ons
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 79 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • 1000A AC/DC Current Measurement with True RMS Accuracy
  • Advanced Diagnostics Including LoZ Voltage, Peak Capture and NCV Detection
  • Designed for Industrial Maintenance and Fault Finding Applications

Related Categories

AC/DC Clamp Meters
Description

Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

The Test Meter PRO TMP837 expands on the capabilities of the TMP520 by introducing DC current measurement together with advanced diagnostic functions for industrial maintenance. Suitable for electrical contractors, facilities engineers and maintenance technicians, it delivers accurate True RMS measurements on both linear and non-linear loads. LoZ voltage measurement, peak capture, temperature measurement and non-contact voltage detection help simplify fault diagnosis on motors, drives, distribution equipment and control panels while maintaining a compact, ergonomic design for everyday use.

Part number: TMP837

Comparison Across the Test Meter PRO Clamp Meter Range

Feature

TMP520

TMP837

TMP1500

Max AC Current

600A

1000A

2000A

DC Current

–

✓

✓

True RMS

✓

✓

✓

1000V AC/DC

✓

✓

✓

LoZ

–

✓

✓

Inrush

✓

✓

✓

Temperature

✓

✓

✓

NCV

✓

✓

✓

Ideal For

Domestic / Commerical

Industrial

Solar PV

FAQs

Why choose a True RMS clamp meter?

True RMS technology provides accurate readings on distorted and non-linear waveforms commonly found in modern electrical installations.

Which model is right for me?

The TMP837 is best suited to commercial & industrial maintenance. See the comparison table above to compare the range.

Can this clamp meter be used for commercial work?

Yes. The meter is suitable for domestic, commercial and industrial applications within its specification.

Typical Applications

  • Electrical installation
  • Inspection & Testing
  • Fault finding
  • Preventative maintenance
  • Industrial control panels
  • Motors & drives

Key Features

  • 1000A AC/DC current
  • 1000V AC/DC
  • True RMS
  • LoZ
  • Peak
  • Inrush
  • Temperature
  • NCV
  • Live wire detection

What's In The Box?

  • Clamp meter
  • Test leads
  • K-type temperature probe
  • Carry case
  • Batteries
  • User manual
Specification
Show Trustpilot Reviews
Specification
Yes
  • Display: 6,000 Count LCD
  • Current Measurement: AC/DC Current up to 1000A
  • Voltage Measurement: AC/DC Voltage up to 1000V
  • True RMS: Yes
  • LoZ Voltage: Yes
  • Resistance: Up to 60MΩ
  • Continuity: Audible continuity buzzer
  • Diode Test: Yes
  • Capacitance: Yes
  • Frequency: 10Hz – 10MHz
  • Duty Cycle: Yes
  • Temperature: K-Type Thermocouple
  • Inrush Current: Yes
  • Peak Measurement: Yes
  • VFC Mode: Yes
  • NCV Detection: Yes
  • Live Wire Detection: Yes
  • Data Hold: Yes
  • MAX/MIN Recording: Yes
  • Relative Mode (REL): Yes
  • Auto Range / Manual Range: Yes
  • Auto Power Off: Yes
  • Torch: Integrated LED
  • Jaw Capacity: Approx. Ø42.5mm
  • Display Backlight: Yes
  • Safety Rating: CAT IV 600V / CAT III 1000V
  • Power Supply: 3 × AAA Batteries
Reviews
Trustpilot

Kit Options

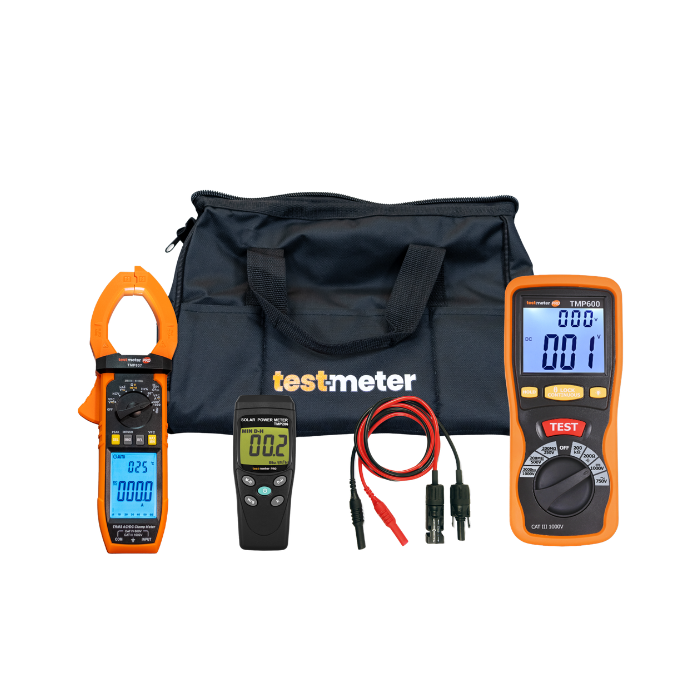

TMPV3 - Solar PV Testing Kit
Kit Option
£295.00 (ex VAT)
£354.00 (inc VAT)
In Stock - Available Next Day

Kit

1 x Test Meter PRO TMP206 Solar Irradiance Meter

1 x TMPVTL - MC4 Solar Test Leads

1 x Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

1 x Test Meter PRO TMP600 CAT III 1000V Electrical Insulation Tester

More Info & Buy chevron-right

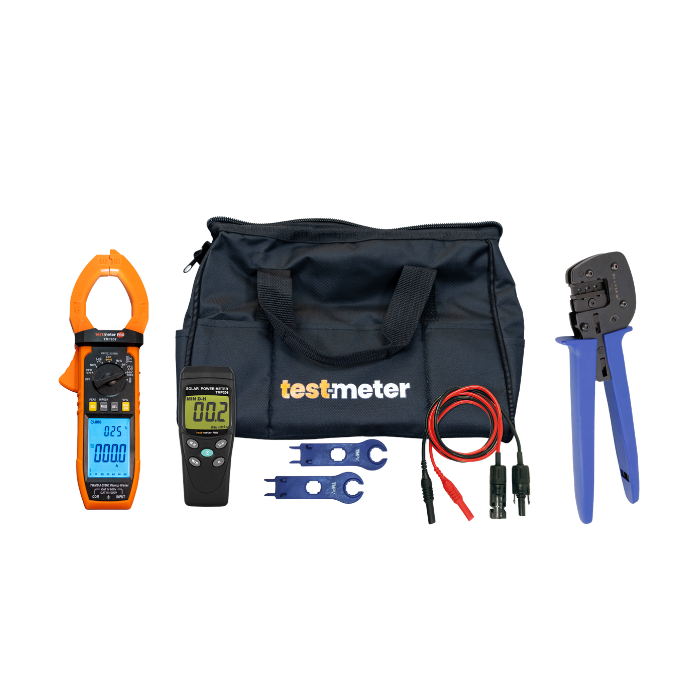

TMPV2 - Solar PV Testing & Tool Kit
Kit Option
£245.00 (ex VAT)
£294.00 (inc VAT)
In Stock - Available Next Day

Kit

1 x Test Meter PRO TMP206 Solar Irradiance Meter

1 x Professional MC4 Solar Crimping Tool

1 x MC4 Solar Spanners (Pair)

1 x TMPVTL - MC4 Solar Test Leads

1 x Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

More Info & Buy chevron-right

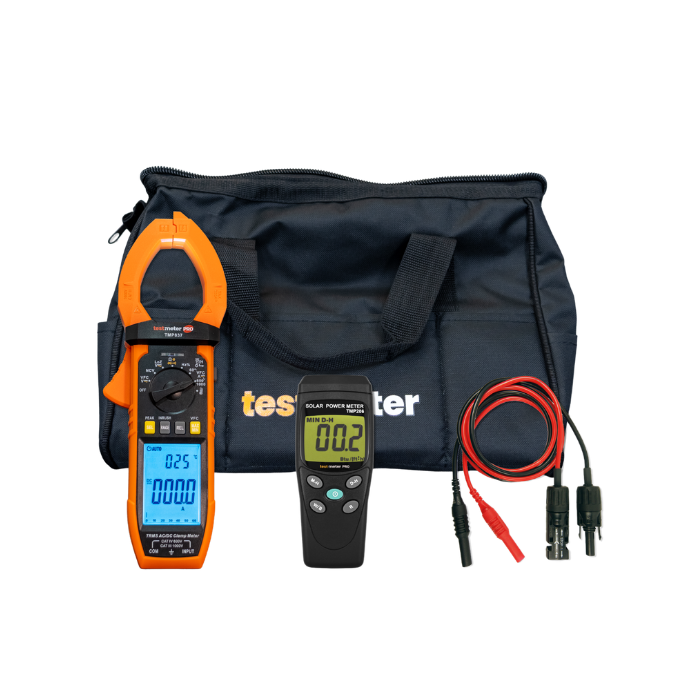

TMPV1 - Solar PV Testing Kit
Kit Option
£195.00 (ex VAT)
£234.00 (inc VAT)
In Stock - Available Next Day

Kit

1 x Test Meter PRO TMP206 Solar Irradiance Meter

1 x Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

1 x TMPVTL - MC4 Solar Test Leads

More Info & Buy chevron-right

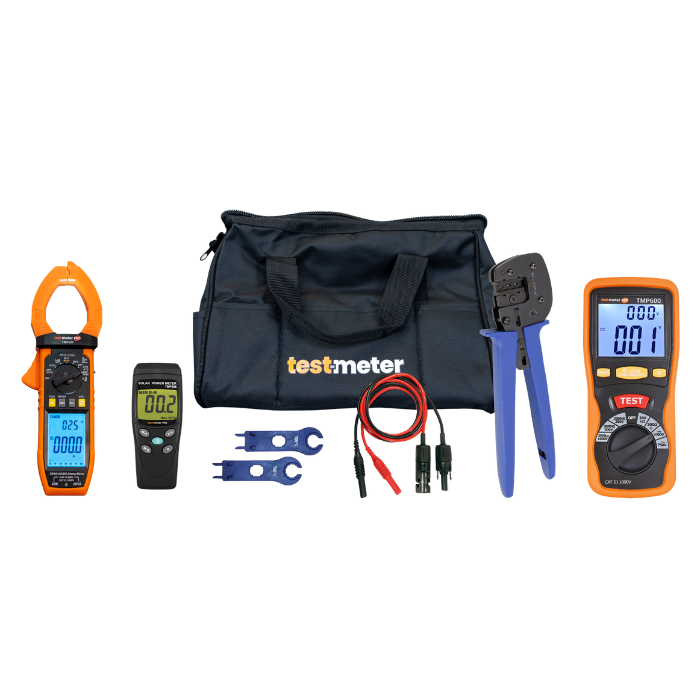

TMPV4 - Solar PV Testing & Tool Kit
Kit Option
£335.00 (ex VAT)
£402.00 (inc VAT)
In Stock - Available Next Day

Kit

1 x Test Meter PRO TMP206 Solar Irradiance Meter

1 x Professional MC4 Solar Crimping Tool

1 x MC4 Solar Spanners (Pair)

1 x TMPVTL - MC4 Solar Test Leads

1 x Test Meter PRO TMP837 1000A True RMS AC/DC Clamp Meter

1 x Test Meter PRO TMP600 CAT III 1000V Electrical Insulation Tester

More Info & Buy chevron-right
