Testo 150 TC4 Data Logger Module

Testo
SKU: TESTO150TC4
  • 4 thermocouple inputs for flexible multi-point temperature measurement
  • Ideal for industrial applications and monitoring extreme conditions
  • DIN EN 12830:2018 certified with local alarm indication
More Info
Typically ships in 5-7 working days

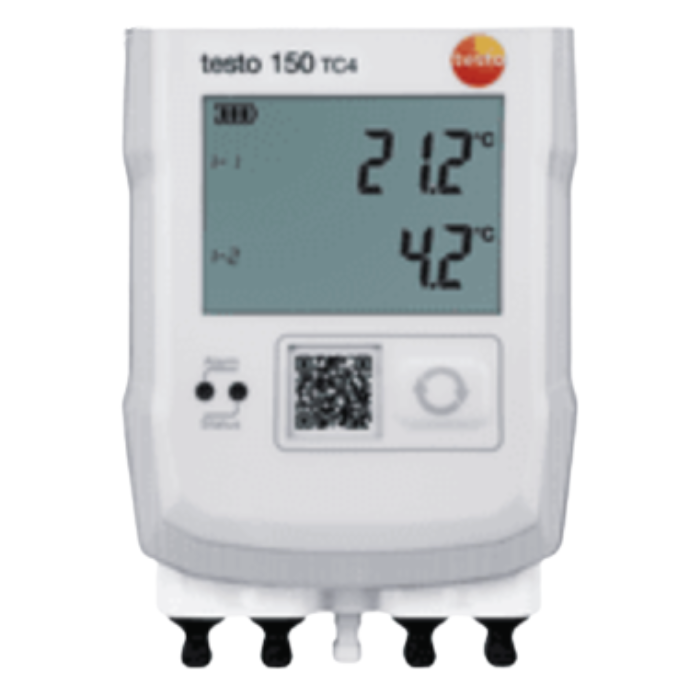

Testo 150 TC4 Data Logger Module

The Testo 150 TC4 Data Logger Module is designed for reliable temperature monitoring in demanding and professional environments where robust data capture is critical. Featuring an integrated display and 4 connections for thermocouples, it is particularly well suited to industrial applications and the measurement of extreme conditions, giving users a flexible and dependable solution for multi-point temperature monitoring.

As part of the Testo 15 Data Logger range, the TC4 delivers automated, uninterrupted, no-loss recording of measurement data, helping users maintain clear oversight of critical environment or process values. It local display allows readings to be checked directly on the logger, while built-in alarm indication on the device itself helps alert users quickly if limit values are exceeded. This makes it a practical choice for applications where a fast visual overview and immediate response to changing conditions are important.

The Testo 150 TC4 can also be integrated into wider monitoring systems for more advanced data management and transmission. It can be combined with compatible Testo communication modules for transmission via WLAN, Ethernet or Testo UltraRange technology, making it suitable for both standalone and networked monitoring setups. With dependable documentation support, alarm handling and DIN EN 12830:2018 certification, the TC4 is a strong option for organisations that need accurate, scalable and compliant temperature monitoring in regulated or industrial settings.

Testo part number: 0572 3330

Key Features

  • 4 thermocouple connections for flexible multi-point temperature monitoring
  • Integrated display for quick on-site viewing of measured values
  • Ideal for industrial applications and measurement in extreme conditions
  • Designed for automated, uninterrupted, no-loss recording of measurement data
  • Local alarm indication on the logger itself when limit values are exceeded
  • Can be combined with Testo communication modules for WLAN, Ethernet or UltraRanfe data transmission
  • Supports reliable alarm handling and documentation with the Testo 150 / Saveris 1 monitoring system
  • Suitable for use in regulated monitoring environments
  • DIN EN 12830:2018 certified

What's In The Box?

  • Testo 150 TC4 Data Logger Module
  • Wall bracket
  • Batteries
  • Calibration protocol
Specification

Display

  • Display Type – Segment display
  • Display functions – Display of 2 measurement channels, limit value violations, connection status, signal strength, battery status, display can be disabled

Physical Specifications

  • Housing Material – PC/PET (front) / ABS+PC+10% GF/PET (rear)
  • Size (W x H x L) – 69.3 x 89.3 x 29.0mm
  • Measuring Range:
    - 1. TC Type K: -200 to +1350°C
    - 2. TC Type J: -100 to +750°C
    3. TC Type T: -200 to +400°C
  • Accuracy (±1 digit) - ±(0.5°C + 0.5% of measured value)
  • Resolution – 0.1°C
  • Weight – Approximately 255g
  • IP Protection Class – IP 67 & IP 65 (with mounted Testo UltraRange and WLAN communication module), IP 30 (Ethernet) (in each case without probe)

Operating and Storage Conditions

  • Storage Temperature - -40 to +60°C
  • Operating Temperature - -40 to +50°C

Power

  • Power Supply – Optionally via mains unit & micro USB (0572 5004)
  • Battery Type – 4 x AA alkaline manganese batteries, at temperatures below +10°C, the use of Energizer Li batteries is recommended (0515 0572)
  • Battery Life:
    - Testo UltraRange: Up to 6.4 years
    - WLAN: 3.3 years (1h communication cycle, 15 min measurement, +25°C, 1 Type K probe connected)

Interfaces

  • Connections – 4 x thermocouple (Type K, J, T) micro USB TCI (Testo Communication Interface)

Measurement Data Storage

  • Measuring Interval – (see communication modules)
  • Channels – 4
  • Internal Memory (Per Channel) – Minimum 64,000 readings
