Testo 176-T4 Temperature Data Logger

SKU: TESTO176T4
  • Measure temperature through up to four Type T, K or J thermocouples
  • Large digital screen clearly shows current temperature values
  • Stores up to 2 million values with options for USB and SD-card data transfer
More Info
In Stock - Available Next Day

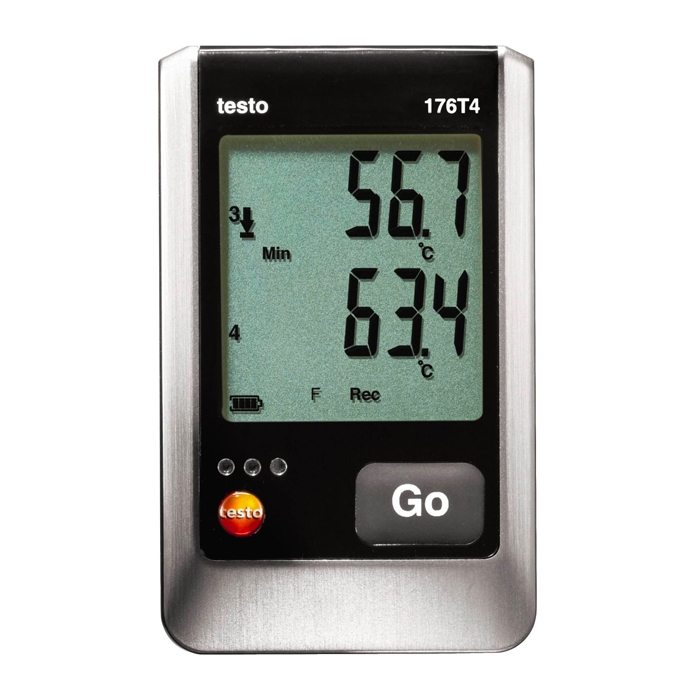

Testo 176-T4 Temperature Data Logger

The Testo 176-T4 Temperature Data Logger is a four-channel temperature monitor capable of measuring temperature through type T, type J or type K thermocouples. It has a maximum temperature range of -195˚C to 1000˚C with best accuracy of ±0.3˚C and precision of 0.1˚C, thus allowing accurate, reliable temperature readings at four points throughout an industrial process. Please note that probes are not included as standard with the monitor.

Current temperature readings are shown on the Testo 176-T3’s large digital display so a passer by can immediately see the temperature and act if the value is too high or too low. Otherwise measurements are saved to the large internal memory which has space for 2 million values. The user can adjust the measurement rate between once a second and once a day for intensive or extensive monitoring. Data can be transferred using a standard SD card or USB cable (not included) and then analysed using a free ComSoft Basic software package.

The Testo 176-T4 has an eight-year battery life and it is IP65 waterproof rated so it is appropriate for a range of settings across several industries. It is supplied with a wall bracket so it can be easily fitted into position and then locked in place. Other accessories include a calibration protocol and batteries.

Testo part number: 0572 1764

Key Features

  • Four-channel measurement
  • Compatible with Type T, J and K probes
  • Max range: -295˚C to 1000˚C
  • Best accuracy: ±0.3˚C
  • Resolution: 0.1˚C
  • Large digital screen
  • Large internal memory
  • USB and SD card interface
  • IP65 waterproof rated
  • 8-year battery life

What's In The Box?

  • Testo 176-T4 Temperature Data Logger
  • Instructions for Testo 176-T4
  • Wall bracket
  • Lock
  • Battery
  • Calibration protocol
Specification

Temperature - TC Type K (NiCr-Ni)

  • Measuring range: -195 to +1000 °C
  • Accuracy: ±1 % of mv (-195 to -100.1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +1000 °C)
  • Resolution: 0.1 °C

Temperature - TC Type T (Cu-CuNi)

  • Measuring range: -200 to +400 °C
  • Accuracy: ±1 % of mv (-200 to -100.1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +400 °C)
  • Resolution: 0.1 °C

Temperature - TC Type J (Fe-CuNi)

  • Measuring range: -100 to +750 °C
  • Accuracy: ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70.1 to +750 °C)
  • Resolution: 0.1 °C

General technical data

  • Dimensions: 103 x 63 x 33 mm
  • Operating temperature: -20 to +70 °C
  • Protection class: IP65
  • Channels: 4 external
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years at 15 min. meas. rate
  • Memory: 2,000,000 measuring values
  • Storage temperature: -40 to +85 °C
