Testo 184-G1 Freight Temperature, Humidity and Shock Data Logger

Testo
SKU: TESTO184G1
  • Measures temperature, humidity and shock across transits of food and drugs
  • Has a 64,000-reading internal memory and 120-day battery life
  • Universally compatible PDF format requires no special software
More Info
Typically ships in 2-4 working days

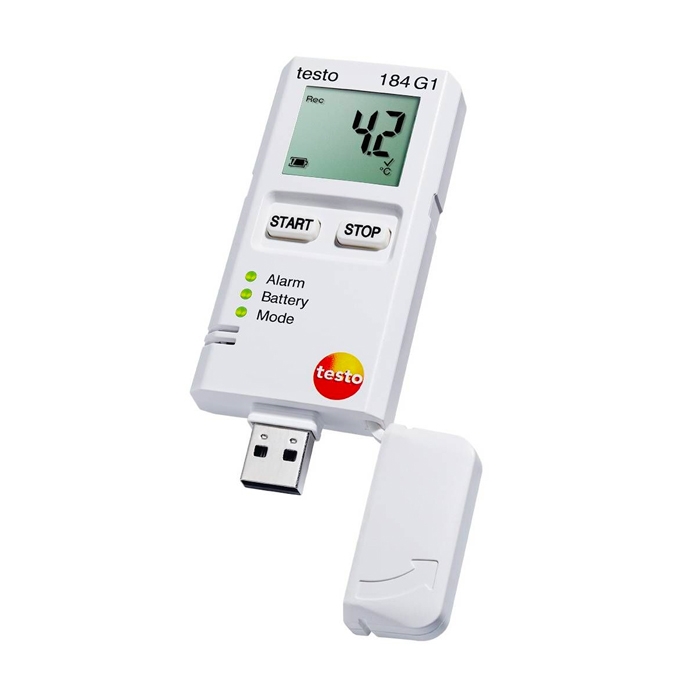

Testo 184-G1 Freight Temperature, Humidity and Shock Data Logger

The Testo 184-G1 Freight Temperature, Humidity and Shock Data Logger is a comprehensive measuring device that can be included with shipments of food and pharmaceuticals to make sure they are transported in the right climate and handled appropriately. The temperature range goes from -20˚C to 70˚C, the humidity range goes from 0 to 100% and the shock range goes from 0 to 27g so measurement is comprehensive. The user can set the measurement rate between 1min and 24h for both intensive and extensive monitoring.

Current readings are shown on the Testo 184-G1’s clear digital display and it also has LED alarms for when adjustable limit values are exceeded. The user has the option to set cumulative alarms and even set alarms to trigger according to mean kinetic temperature values. Every time an alarm is triggered, this is recorded to the monitor’s memory.

The Testo 184-G1 is suited to monitoring long-haul transits thanks to its large internal memory which has space for 64,000 readings for humidity and temperature as well as an additional 1,000 shock readings. The exchangeable battery can power the data logger for 120 days so it can operate independently throughout a transit.

The user can download a report on the transit via the Testo 184-G1’s universally compatible USB port which is protected by a cap when not in use. Reports are available in a PDF format so no specialist software is required and PDF forms are also used to configure the monitor before being dispatched. The configuration is very simple and easy for new users. The data logger meets HACCP standards for use in the food industry.

Testo part number: 0572 1846

Key Features

  • Temperature range: -20˚C to 70˚C
  • Temperature accuracy: ±0.5˚C
  • Temperature resolution: 0.1˚C
  • Humidity range: 0 to 100%
  • Humidity accuracy: ±1.8% RH
  • Humidity resolution: 0.1% RH
  • Shock range: 0 to 27g
  • Shock accuracy: ±0.1g + 5%
  • Shock resolution: 0.1g
Specification

Temperature - NTC

  • Measuring range: -20 to +70 °C
  • Accuracy: ±0.5 °C (0 to +70 °C); ±0.8 °C (-20 to +0 °C)
  • Resolution: 0.1 °C

Humidity - Capacitive

  • Measuring range: 0 to 100 %RH
  • Accuracy: ±1.8 %RH + 3 % of mv at +25 °C (5 to 80 %RH); ±0.03 %RH/K (0 to +60 °C)
  • Resolution: 0.1 %RH

Shock

  • Measuring range: 0 to 27 g; 0 to 265 m/s²
  • Accuracy: ±(0.1 g + 5 % of mv); ±1 / 1 / 1 m/s²
  • Resolution: 0.1 g; 1 m/s²

General technical data

  • Dimensions: 44 x 12 x 97 mm
  • Operating temperature: -20 to +70 °C
  • Protection class: IP30
  • Operating time: Unlimited
  • Alarm signal: By LED and Display
  • Battery type: Lithium battery CR2450, 3V, exchangeable
  • Battery life: 120 days (at +25 °C and 15 min. meas. cycle)
  • Memory: 64,000 measurement values (temperature and humidity); 1,000 measurement values (shock)
  • Storage temperature: -55 to +70 °C
  • Weight: 45 g
Label Type Size Download
pdf Testo 184 Datasheet pdf 2.3 MB Download
