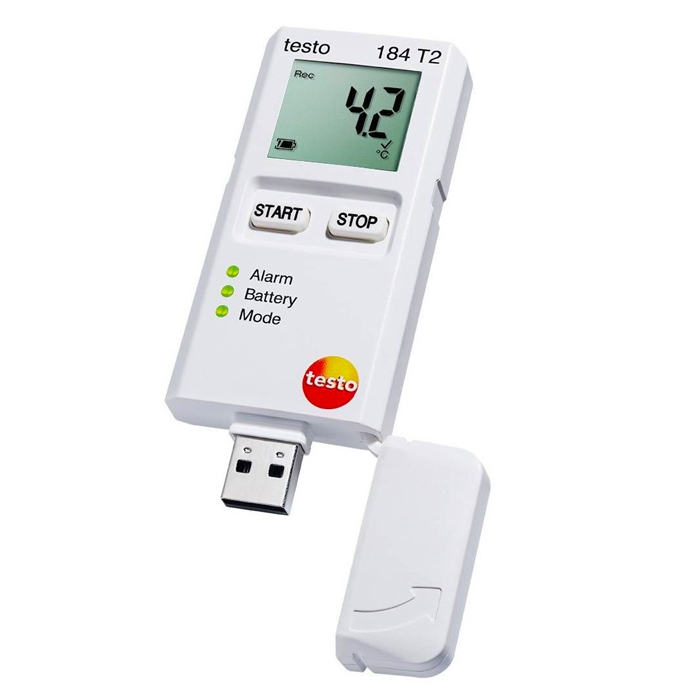

Testo 184-T2 Freight Temperature Data Logger

SKU: TESTO184T2
  • Monitor temperature in transit between -35˚C and 70˚C with ±0.5˚C accuracy
  • Alarms with mean kinetic temperature (MKT) values
  • 150-day operation and large internal memory for 40,000 readings
More Info
In Stock - Available Next Day

Testo 184-T2 Freight Temperature Data Logger

The Testo 184-T2 Freight Temperature Data Logger is a single-use temperature monitor designed to be used in medicine and food transport where goods are temperature sensitive. It can measure temperature between -35˚C and 70˚C with ±0.5˚C accuracy and 0.1˚C resolution and is therefore suitable for making sure that freight is transported at the appropriate temperature. The user can set the monitor to record at different rates from once per minute to once per day.

The data logger has multiple alarm limits and the user can set cumulative alarms, for example to sound when the temperature rises above 8˚C for 30 minutes or more. A visual warning will be triggered when limits are exceeded and the exact time will be noted in the report on the journey. In addition, the Testo 184-T2 can give values and set alarms for mean kinetic temperature (MKT) so that the cumulative effect of temperature variations on pharmaceutical goods can be expressed simply.

The Testo 184-T2 has a clear digital display that shows the current temperature for when an inspection is performed mid-transit. Temperature measurements from the entire journey can be saved to the internal memory which has enough space for up to 40,000 readings. A full report of the transit will be provided to the recipient in PDF format and all the user needs to do is plug the data logger into the USB port of a PC to access its files and configure it for the journey. No additional software is needed and the monitor also connects to an optional Testo fast printer for instant hard copies.

An operating time of 150 days makes the Testo 184-T2 suitable for almost all cold-chain monitoring for both food and medicine and the user can rely on the IP67-rated casing to protect the instrument from water or dust ingress. It is certified under standards including HACCP, EN12830 and ISO9001:2008.

Testo part number: 0572 1842

Key Features

  • Temperature range: -35˚C to 70˚C
  • Accuracy: ±0.5˚C
  • Resolution: 0.1˚C
  • Suitable for monitoring freight
  • Instant and cumulative alarms
  • Mean kinetic temperature (MKT)
  • Clear digital display
  • Internal memory: 40,000 reading
  • User-friendly operation
  • No additional software required
  • USB port to connect to PC
  • IP67 rated with 150-day operation
Specification

Temperature - NTC

  • Measuring range: -35 to +70 °C
  • Accuracy: ±0.5 °C
  • Resolution: 0.1 °C

General technical data

  • Dimensions: 44 x 12 x 97 mm
  • Operating temperature: -35 to +70 °C
  • Protection class: IP67
  • Standards: EN 12830
  • Certificate type: Certified by HACCP International
  • Measuring rate: 1 min - 24 h
  • Operating time: 150 days
  • Alarm signal: By LED and Display
  • Battery type: Lithium battery non exchangeable
  • Memory: 40,000 measuring values
  • Storage temperature: -55 to +70 °C
  • Weight: 45 g
Label Type Size Download
pdf Testo 184 Datasheet pdf 2.3 MB Download
