Testo 184-T3 Freight Temperature Data Logger

SKU: TESTO184T3
  • Monitors temperature conditions in freight from -35˚C to 70˚C
  • Large internal memory for 40,000 readings with PDF configuration and reports
  • 500-day battery life from exchangeable 3V Lithium battery
More Info
In Stock - Available Next Day

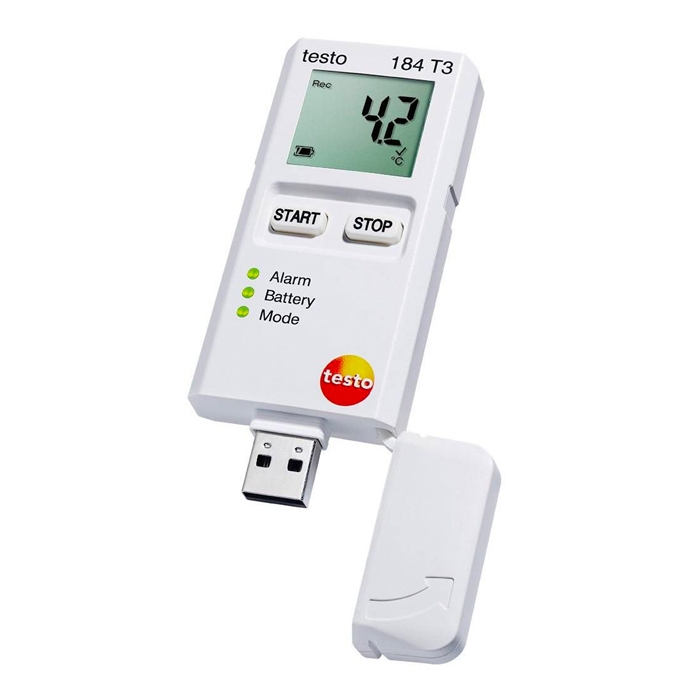

Testo 184-T3 Freight Temperature Data Logger

The Testo 184-T3 Freight Temperature Data Logger is designed to accompany temperature-sensitive shipments of medicine and food in order to certify that the cold chain has been maintained throughout transit. The internal sensor has a measurement range of -35˚C to 70˚C with ±0.5˚C accuracy and 0.1˚C resolution and the user can adjust the measurement rate between 1min and 24h.

The Testo 184-T3 can express values in terms of mean kinetic temperature (MKT) to assess the overall impact of temperature fluctuations and the alarms can be set to trigger on the basis of normal temperature or MKT. The user can also set a cumulative alarm whereby an LED and screen warning are triggered when temperature rises over a certain point for period of time. If the alarm is triggered, the time will be recorded in the final report.

A simple USB port connects the Testo 184-T3 quickly and easily to the user’s PC. As it uses PDF files for configuration and reporting, no specialist software is required and the configuration process is extremely straightforward. The monitor has a clear digital screen that shows the current temperature reading for anyone checking during transit and up to 40,000 readings can be saved to the internal memory.

The Testo 184-T3 has an IP67 rating which means that it is suitable for a range of challenging conditions when included with a shipment. It has a 500-day battery life operating from an exchangeable 3V lithium battery so it is suitable for an extremely long cold chain process. It complies with HACCP regulations, ISO9001:2008 and EN12830.

Key Features

  • Temperature range: -35˚C to 70˚C
  • Temperature accuracy: ±0.5˚C
  • Temperature resolution: 0.1˚C
  • Measurement rate: 1min to 24h
  • Mean kinetic temperature values
  • Cumulative and LED alarms
  • LED alarms and LCD screen
  • USB connection to PC
  • PDF operation and reporting
  • Internal memory: 40,000 readings
  • 500-day battery life
  • Exchangeable battery
Specification

Temperature - NTC

  • Measuring range: -35 to +70 °C
  • Accuracy: ±0.5 °C
  • Resolution: 0.1 °C

General technical data

  • Dimensions: 44 x 12 x 97 mm
  • Operating temperature: -35 to +70 °C
  • Protection class: IP67
  • Standards: EN 12830
  • Certificate type: Certified by HACCP International
  • Measuring rate: 1 min - 24 h
  • Operating time: Unlimited
  • Alarm signal: By LED and Display
  • Battery type: Lithium battery CR2450, 3V, exchangeable
  • Battery life: 500 days (at +25 °C and 15 min. meas. cycle)
  • Memory: 40,000 measuring values
  • Storage temperature: -55 to +70 °C
  • Weight: 45 g
Label Type Size Download
pdf Testo 184 Datasheet pdf 2.3 MB Download
