Testo 420 Differential Pressure Measuring Instrument

Testo
SKU: TESTO420U
  • Measure differential pressure and absolute pressure up to 120Pa
  • Calculate flown velocity and volume flow
  • Large display with a user friendly menu guidance
More Info
In Stock - Available Next Day

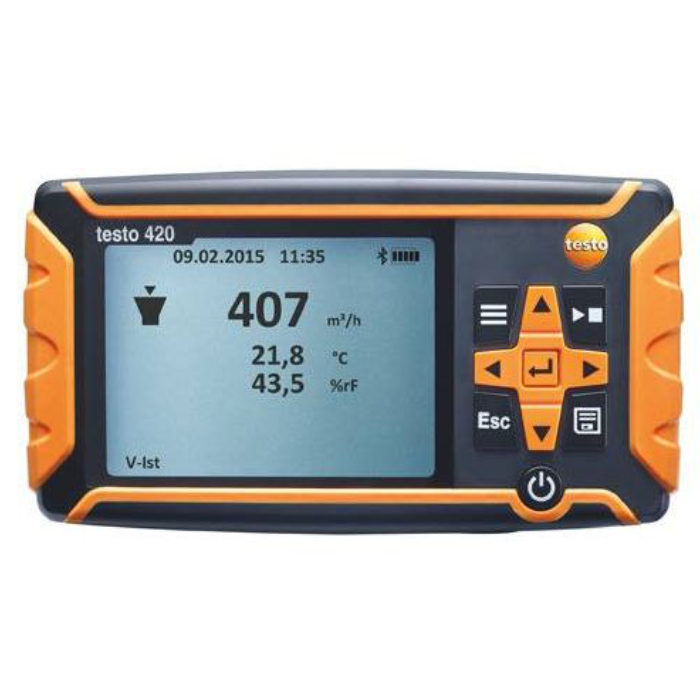

Testo 420 Differential Pressure Measuring Instrument

The Testo 420 Differential Pressure Measuring Instrument can be used to measure differential and absolute pressure up to 120Pa. Using a compatible connection hose alongside a pivot tube, users are able to measure flow velocity and volume flow in ventilation ducts. The Test 420 is highly accurate for low pressures thanks to the automatic zeroing process.

Timed and multi-point mean calculation, as well as a combination of the two, allow for support for measurements in ducts thanks to the simple input of the duct geometry. The large backlit display allows measurement data and calculations to be viewed clearly.

Measurements and calculations can be stored on the Test 420's 2GB internal memory for analysis and documentation. Data can be easily transferred and managed on a PC without any additional software, thanks to the plug and play function of the Testo 420.

Key Features

  • Measure absolute and differential pressure up to 120Pa
  • Using a compatible hoses and a Pitot hose, flow velocity and volume flow can be calculated
  • Highly accurate for low pressure thanks to automatic zeroing
  • Simple input of duct geometry
  • Timed and multi point calculation
  • 2GB internal storage for documentation and data analysis
  • Easily manage data on a PC thanks to the Plug and Play function
  • Large backlit display

Testo Part number: 0560 0420

What's In The Box?

  • Testo 420 Differential Pressure Measuring Instrument
  • AA batteries
  • Calibration Protocol
Specification

Differential Pressure- Piezoresistive

  • Measuring Range: -120 to 120n Pa/ +0.1 to +14m/s
  • Accuarcy: ±2 % of mv + 0.5 Pa at +22 °C, 1013 hPa
  • Resolution: 0.001 Pa/ 0.01 m/s
  • reaction time: 1s (t₉₀)

Absolute Pressure

  • Measuring Range: 700 to 1100 hPa
  • Accuracy: ±3 hPa
  • Resolution: 0.1 hPa
  • Reaction Time: 1s

General Technical Data

  • Dimensions: 150 x 85 x 35mm
  • Operating Temperature:v -5 to 50ºC
  • EU/EG Guidelines: EU guidlines 2014/30/EU
  • Battery Type: Alkali manganese, mignon, type AA
  • Battery Life: 40 hours
  • Display Size: 3.5 inches
  • Display Function: Dot Matrix
  • Display Lighting: With illumination
  • Interface: Micro-USB
  • Memory: 2GB (internal)
  • Storage Temperature: -20 to 60ºC
