Testo 440 16mm Telescopic Vane Kit

Testo
SKU: TESTO44016MMKIT
  • Complete 16mm vane kit for professional duct airflow measurement
  • Telescopic probe extends to 0.85m for easier access in ducts
  • Testo 440 stores readings and exports results via USB for reporting
More Info
Typically ships in 5-7 working days

Testo 440 16mm Telescopic Vane Kit

The Testo 440 16mm Telescopic Vane Kit is a practical solution for measuring air velocity, volume flow and wider IAQ parameters in ventilation ducts. Supplied with the Testo 440 Air Velocity and IAQ measuring instrument and a wired 16mm vane probe, it is well suited to HVAC professionals who need accurate, repeatable airflow measurements in day-to-day commissioning, servicing and troubleshooting work.

A key strength of the kit is its suitability for duct measurements in harder-to-reach areas. The vane probe features an integrated telescope extendable to 0.85m, helping users position the sensor more effectively in ducts and at height. Combined with the Testo 440’s structured measurement menus for duct air velocity and volume flowm this helps make on-site measurements faster, more consistent and easier to carry out.

The Testo 440 platform also adds useful long-term flexibility. It can be used with a range of additional Bluetooth and wired probes for other IAQ measurements, while the instrument can store up to 7,500 readings and export results via USB as CSV files for reporting and analysis. Supplied in a basic case, the kit offers a convenient and expandable setup for professional airflow measurement.

Testo part number: 0563 4401

Key Features

  • Complete kit with Testo 440 measuring instrument and wired 16mm vane probe for duct airflow measurement
  • Measures air velocity, volume flow and IAQ parameters in ventilation applications
  • Telescopic probe extends to 0.85m for improved access in ducts and higher measurement points
  • Structured measurement menus support straightforward duct air velocity and volume flow checks
  • Testo 440 supports additional Bluetooth and cable-based probes for wider IAQ work
  • Instrument stores up to 7,500 readings and exports data via USB as CSV files
  • Vane probe measuring range of 0.6 to 50m/s with 1.7m fixed cable and 16mm probe head

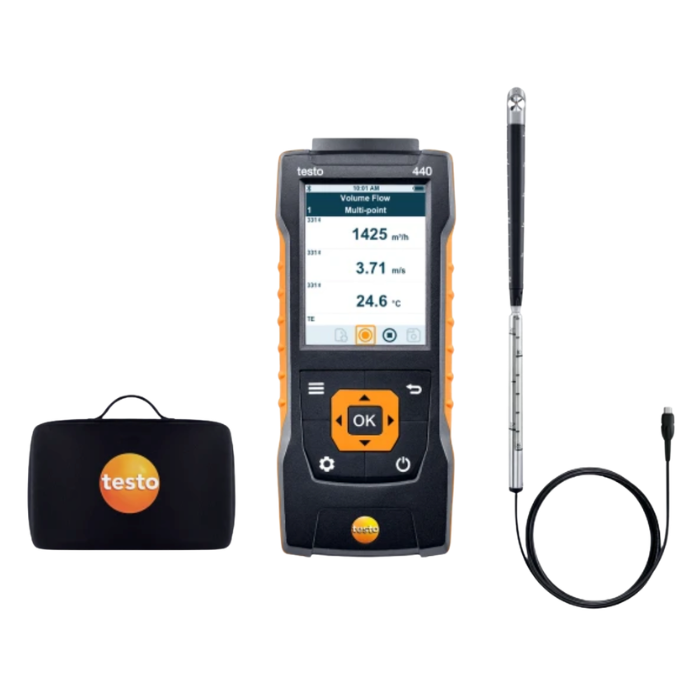

What's In The Box?

  • Testo 440 Air Velocity and IAQ Measuring Instrument
  • Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m)
  • Basic case for Testo 400 and 1 probe
  • 3 x AA batteries
  • USB cable
  • Calibration protocol for Testo 400
  • Calibration protocol for Vane probe
Specification

Testo 440

Temperature – NTC

  • Measuring Range - -40 to +150°C
  • Accuracy:
    - ±0.4°C (-40 to -25.1°C)
    - ±0.4°C (+75 to +99.9°C)
    ±0.5% of mv (Remaining Range)
    ±0.3°C (-25 to +74.9°C)
  • Resolution – 0.1°C

Temperature – TC Type K (NiCr-Ni)

  • Measuring Range - -200 to +1370°C
  • Accuracy - ±(0.3°C + 0.3% of mv)
  • Resolution – 0.1°C

General Technical Data

  • Weight – 250g
  • Dimensions – 154 x 65 x 32mm
  • Operating Temperature - -20 to +50°C
  • Connectable Probes – 1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or Testo Smart Probe, 1 x Temperature TC Type K
  • Product Colour – black/orange
  • Battery Type – 3 x AA mignon 1.5V
  • Battery Life – 12h (typically vane measurement)
  • Interface – Bluetooth®; USB
  • Storage Temperature - -20 to +50°C

Vane probe

Velocity / Volume Flow

  • Measuring Range – 0.6 to 50m/s
  • Accuracy:
    - ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
    - ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
  • Resolution – 0.1m/s

General Technical Data

  • Storage Temperature - -10 to +70°C
  • Weight – 150g
  • Dimensions – 330 x 16 x 16mm
  • Operating Temperature - -10 to +70°C
  • Cable Length – 1.7m
  • Length Telescope – 850mm
  • Probe Head Diameter – 16mm
  • Diameter Telescope – 12mm
  • Product Colour – Black; silver
