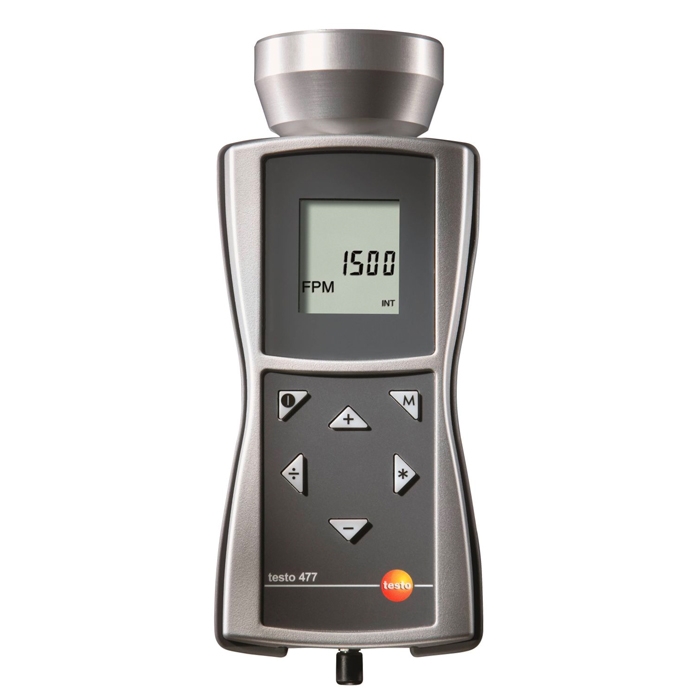

Testo 477 LED Handheld Stroboscope

SKU: TESTO477
  • Measure rpm of high frequency cycles up to 300,000 rpm with ±0.02% accuracy
  • Micro flashes of high intensity light (50µs) via 1500 Lux LED lamp
  • ‘Slow down’ high frequency cycles to produce stationary image
More Info
Typically ships in 2-4 working days

Testo 477 LED Handheld Stroboscope

The Testo 477 LED Handheld Stroboscope performs non-contact rpm measurement of rotating components like propellors and flywheels via a high intensity (1500Lux) LED flash. The light is capable of up to 300,000 flashes per minute (fpm) with 0.02% accuracy and 0.1/1 fpm resolution. The flashing LED makes fast-moving mechanisms appear in slow motion meaning that any rotation and vibration can be measured and assessed during operation.

The Testo 477 has a trigger input and output which means it can be connected to an external sensor or system. It has a large digital display that shows the fpm value and the user can adjust the flash duration and frequency via the simple push-button interface.

A long 5-hour battery life is extremely practical and the Testo 477 also benefits from an IP65 ingress protection rating which makes it suitable for challenging environments. It is supplied with a battery, transport case, trigger signal connector and calibration protocol.

Testo part number: 0563 4770

Key Features

  • Measurement range: 300,000 fpm
  • Accuracy: ±0.02%
  • Resolution: 0.1/1fpm
  • 1500 Lux light intensity
  • LED lamp
  • IP65 rating
  • 5-hour battery life

What's In The Box?

  • Testo 477 LED Handheld Stroboscope
  • Battery
  • Transport case
  • Trigger signal connector
  • Calibration protocol
  • Instructions for Testo 477
Specification

rpm - LED

  • Measuring range: 30 to 300000 fpm
  • Accuracy: 0.02 % of mv
  • Resolution: ±0.1 (30 to 999 fpm); ±1 (1000 to 300000 fpm)

General technical data

  • Protection class: IP65
  • Flash duration: Can be adjusted
  • Flash intensity: 1500 Lux at 6000 FPM / 20 cm
  • Flash colour: Approx. 6500 K
  • Battery life: NiMH rechargeable battery: Approx. 11 h at 6000 fpm; Batteries: approx. 5 h at 6000 fpm (3 x AA)
  • Display type: LCD
  • Display size: Multiline
  • Reverse battery protection: Yes
  • Low level: < 1 V
  • Maximum current: 50 mA
