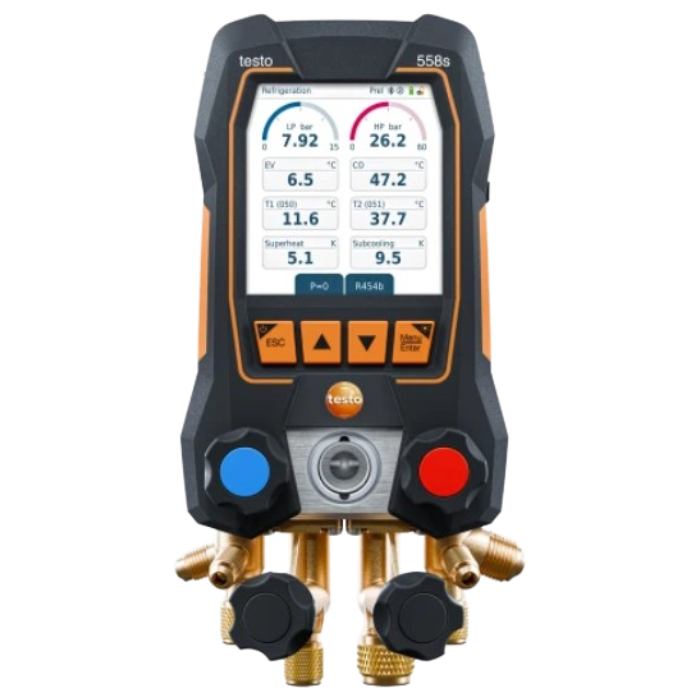

Testo 558s Smart Digital Manifold - Unit Only (0564 5581)

SKU: TEST05645581
  • Wireless operation through automatic Bluetooth connection
  • IP54 rated Digital Manifold with 4-way valve block
  • Compatible with Testo Smart App & Testo DataControl Software
More Info
In Stock - Available Next Day
Choose Your Free Gift

Get a FREE Testo Water Pump Plier Set with any Testo 558s Smart Digital Manifold Kit!
HURRY! While stocks last.

Testo 558s Smart Digital Manifold (Choice Of Kit)

The Testo 558s Smart Digital Manifold is an intuitive and robust instrument designed for the servicing, commissioning, and maintenance of refrigeration systems and heat pumps alike. Packed full of exciting and industry-leading features, the 558s is suitable for every situation. Offering ultimate control and maximum precision, with an intuitive touchscreen interface and flawless app connectivity, the 558s Digital Manifold is an all-in-one solution for HVACR professionals. User safety has been prioritised, with the manifold offering compatibility with Class A3 and A2L flammable refrigerants. With 96+ refrigerants available, the most common of these are stored in the manifold, with the most frequently used able to be marked as a 'favourite' for quick usage.

Readings can be recorded for up to 30 minutes and shown as trend curves, making it easier to detect anomalies. Optionally, the manifold's logging capacity can be extended to 72 hours. The readings can then be directly exported and, via the Testo Smart App, can be transported as a measurement report. This allows for documentation to be completed on site in just a few clicks. With an IP54 protection rating, the 558s is built to last, with heightened durability and versatility. Superheating and subcooling, tightness testing, Delta T, evacuation, or filling: these are all measurement programmes available on the 558s which, when coupled with seamless integration and connectivity to an entire refrigeration portfolio, ensures that all applications can be managed and documented through the manifold.

The Testo 558s is able to be updated and regularly maintained thanks to free OTA updates. This enables the addition of new refrigerants, for example, or for seamless connectivity with new products. This essentially ensures that the 558s is never outdated, with consistent updates and upgrades. To simplify everyday work, measurement results can be displayed on a large color screen with clear graphs and 30-minute trend curves. With a high measuring accuracy of 0.25% full scale, reliable evaluations and analysis can be performed, ensuring accuracy when it is needed most.

Testo Sightglass

All fourof this products kit options are now available with a Testo Sightglass, which allows for users to visusally observe the condition of refreigerant as it flows. This enables for analysis to be performed, with the colour of the liquid often indicating an issue is present. To order one of the kits with the Testo Sightglass, simply select an option from the drop down menu at the top of the page.

Testo Smart App

The Testo Smart App can be used in conjunction with the Testo 558s, ensuring that users can operate, measure and document test results, alongside all compatible Testo Bluetooth enabled measuring instruments. The user can maintain numerous sites through the Smart App, thanks to multi site measurement capabilities.

The app is user-friendly, featuring intuitive measurement menus for quick configuration and seamless documentation. All measurements can be accessed in just a few clicks, with data displayed in both graphical and tabular formats. Test measurements and customer data can be stored within the app, and reports can be easily generated and shared directly with customers and colleagues.

The Testo Smart App is free to download and use, with continuous updates and extensions ensuring it remains up to date. Additionally, data can be exchanged with the Testo PC software, DataControl.

Testo DataControl Software

Providing users with all the information available in a single click, the Testo DataControl Software features a highly intuitive user interface. Manage customer profiles, filter/sort measurements and assign measuring points to collected data. Export and save graphics, with up to 4 readings displayable at once in this professional-quality software.

Key Features

  • Touchscreen and graphical measurement visualisation makes for an intuitive feel to the instrument
  • Can be used in conjunction with Testo Smart App, and can be controlled via keypad should the user want
  • Trend curves of measured values over 30 minutes
  • All applications present in one manifold thanks to wireless connection to Testo Smart Probes, current clamp, vacuum pump, and refrigerant scale
  • Maximum safety is achieved thanks to A3 and A2L compatibility
  • Batteries and a USB-C rechargeable battery ensure that the instrument is always ready to go
  • Regular OTA updates ensure that the manifold always stays up to date
  • 96 refrigerants are stored in the manifold, with the ability for the most common to be stored for easy access
  • Has a bluetooth range of 150m

The Testo 558s Smart Digital Manifold Range

  Testo 558s Vacuum Kit Testo 558s Vacuum Kit with Hose Set Testo 558s Heat Pump Kit Testo 558s Heat Pump Kit with Hose Set Testo 558s Ultimate Refrigeration Kit
Order No. 0564 5582 02 0564 5583 02 0564 5585 02 0564 5586 02 300564 5000 04
Testo 558s Smart Digital Manifold
Testo 558s+ Transport Case
2 x Testo 115i Clamp Thermometers
Testo 552i Vacuum Probe
4-Piece Hose Filling Set - -
USB-C Cable
3 x AA Alkaline Batteries
Calibration Protocol for Testo 558s
Testo 560i + Refrigerant Valve - -
Testo TRMS Clamp Meter 770-3 - -
Testo 560i Scales + Refrigerant Valve - -
Testo 565i Vacuum Pump (low rate: 7 CFM (198 l/min)) - - - -
Testo 316-3 Refrigerant Leak Detector - - - -

What's In The Box?

Testo 558s Smart Vacuum Kit (0564 5582 02) includes:

  • Testo 558s Smart Digital Manifold
  • Testo 558s+ Transport Case
  • 2 x Testo 115i Wireless Clamp Thermometers
  • 1 x Testo 552i Wireless Vacuum Probe
  • USB-C Cable
  • Calibration Protocol
  • Instruction Manual
  • Testo Smart App (free download)

Testo 558s Smart Vacuum Kit with Hose Set (0564 5583 02)

  • Testo 558s Smart Digital Manifold
  • Testo 558s+ Transport Case
  • 2 x Testo 115i Wireless Clamp Thermometers
  • 1 x Testo 552i Wireless Vacuum Probe
  • 3 x Hose Charging Set with Valve 1/4" - 1/4" SAE (7/16" - 7/16" UNF)
  • 1 x Vacuum Hose 3/8" SAE (5/8" UNF)
  • USB-C Cable
  • Calibration Protocol
  • Instruction Manual
  • Testo Smart App (free download)

Testo 558s Heat Pump Kit (0564 5585 02)

  • Testo 558s Smart Digital Manifold
  • Testo 558s+ Transport Case
  • 2 x Testo 115i Wireless Clamp Thermometers
  • 1 x Testo 552i Wireless Vacuum Probe
  • 1 x Testo 560i Refrigerant Scale and Valve
  • 1 x Testo 770-3 Clamp Meter with Bluetooth
  • USB-C Cable
  • Calibration Protocol
  • Instruction Manual
  • Testo Smart App (free download)

Testo 558s Heat Pump Kit with Hose Set (0564 5586 02)

  • Testo 558s Smart Digital Manifold
  • Testo 558s+ Transport Case
  • 2 x Testo 115i Wireless Clamp Thermometers
  • 1 x Testo 552i Wireless Vacuum Probe
  • 1 x Testo 560i Refrigerant Scale with Valve
  • 1 x Testo 770-3 Clamp Meter
  • 1 x 4-piece Hose Set with Valve
  • USB-C Cable
  • Calibration Protocol
  • Instruction Manual
  • Testo Smart App (free download)

Testo 558s Ultimate Refrigeration Kit (300564 5000 04)

  • 1 x testo 558s Smart Digital Manifold
  • 2 x Testo 115i Wireless Clamp Thermometers
  • 1 x Testo 770-3 Clamp Meter
  • 1 x Testo 552i Wireless Vacuum Probe
  • 1 x Testo 560i Refrigerant Scale with Valve
  • 1 x Testo Refrigerant Valve
  • 1 x Testo 565i Vacuum Pump (Flow rate: 7 CFM (198 l/min))
  • 1 x Testo 316-3 Refrigerant Leak Detector
Specification

General Technical Data

  • Operating Temperature - -20 to +50 °C
  • Storage Temperature - -20 to +60 °C
  • Battery Type - Built-in rechargeable battery (USB-C): LI battery I8650, Replaceable battery: 3 AA alkaline batteries
  • Battery Life with Backlighting and Bluetooth® - ≤ 70 hours
  • Auto Power Off - After 10 minutes when not connected via Bluetooth®
  • Dimensions - 229 x 112.5 x 71mm
  • Weight - 1.3kg
  • Protection Class - IP54
  • Display - Capacitive Touchscreen
  • Bluetooth Technology/Range - Bluetooth® 5.0/150m
  • Data Logging - Available as an optional upgrade via in-app purchase (72h data logging)

Sensor Types

  • Measuring Range -
    Pressure - -1 to 60 bar
    Temperature - -50 to +150°C
  • Accuracy (at 22°C) -
    Pressure - ±0.25 % fs
    Temperature - ±0.5°C
  • Solution -
    Pressure - 0.01 bar
    Temperature - 0.1°C
  • Probe Connections -
    Pressure - 3 x 7/16" – UNF + 1 x 5/8" – UNF
    Temperature - 2 x plug-in (NTC)
  • Overload -
    Pressure - 65 bar
    Temperature - -
