Testo 570s Smart Digital Manifold Vacuum Kit with hoses

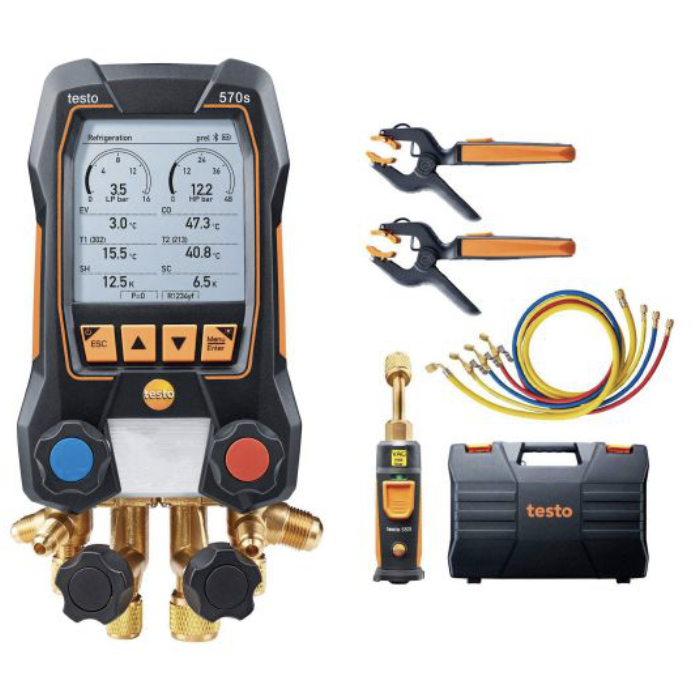

The Testo 570s Smart Digital Manifold Vacuum Kit with hoses comes supplied with the Testo 570s digital manifold, two Testo 115i temperature probes, Testo 552i Vacuum probe and a hose filling set (4 hoses). The 570s and kit components can be safely and easily stored in the included transport case.
The Testo 570s Smart Digital Manifold Vacuum Kit with Hoses includes a hose filling set (4 hoses):
- Three 1.5 m long: (blue, red, yellow) with 7/16‘‘ UNF (straight and 45° angle)
- One 55/275 bar, (yellow) with 5/8‘‘ UNF, 40/205 bar (straight and 45° angle)
Testo 570s Smart Digital Manifold
The Testo 570s Smart Digital Manifold is Bluetooth enabled manifold with a four way valve block providing an optimal solution for long term measurements on refrigeration, air conditioning systems and heat pumps. The Testo 570s can also be used with A3 and A2L refrigerants. All measurement data can be viewed at a glance and a graphically thanks to the large display.
The Testo 570s allows users to measure temperature from -50ºC to 150ºC with an accuracy of ±1.3˚C (-20˚C to 85˚C) and measuring pressure from -1 to 60 bar with a high level of accuracy of ±0.25% fs, providing users with a tester for short and long term data measurements.
The Testo 570s allows for up to 360 hours of run time with rechargeable batteries (USB-C) with a large data memory for measurement. The battery life is further preserved by the auto off function after ten minutes of inactivity.
The Testo 570s is IP54 rated provides protection from dust and water ingress, with the included transport case the Testo 570s is suitable for use even in challenging environments.
Testo 552i Wireless Bluetooth Vacuum Smart Probe
The Testo 570s Vacuum kit with hoses includes two Testo 552i app controlled wireless vacuum probes, allowing users to quickly identify vacuum by graphical display in the app or on the digital manifold screen. users can be alerted of critical values using the app. Automatic connection via Bluetooth® to the smart app or digital manifold. The integrated 45º angle allows easy installation at any service port.
The single service port of the 552i allows for simple measurement of system evacuations. The probe is IP54 rated providing a robust housing and offering protection from water and dust ingress.
Testo 115i Clamp Temperature Probe
The Testo 115i allows users to measure temperature on refrigeration, air conditioning and heating systems and wirelessly transfer data to a smart device. When used alongside the Testo 570s, The 115i can calculate individual refrigeration system parameters. The 115i can also be used to measure flow and return temperatures.
Measurement data can be analysed and transferred to the Smart Probes App. Measuring points can up to 100m apart thanks to the Bluetooth® range
Testo Smart App and Smart Probe App
The Testo 570s Smart Digital MAnifold is compatible with the Testo Smart App, which allows the operator to view anomalies to be detected quickly and reliably. Data documentation and transfer is quick and easy using the app. Users are able conduct remote operation or use the second a smart device as a second screen. Users van digitally create reports complete with photos as PDF/CSV files on site and forward them via email straight away to customers or colleagues.
The Testo Smart Probes App can be downloaded for free from the App Store or Google Play and works with all instruments in the Testo Smart Probes range. The App displays real-time readings on screen for a whole range of variables. Up to six Smart Probes can work in tandem and information can be saved in Excel or as a .pdf report (including pictures). Advanced analysis is available and the Testo Smart Probes range represents a major advance in system inspection and evaluation.
The Testo 570s is IP54 rated providing protection from dust and water ingress, with the included transport case the Testo 570s is suitable for use even in challenging environments.
Testo 570s Digital Manifold Kits
The Testo 570s Digital Manifold is available as a standalone product or as part of a kit. Kit contents are listed below:
|
Testo 570s |
Testo 570s Vacuum Kit |
Testo 570s Vacuum Kit with hoses |
Testo 570s Vacuum Kit with clamp meter |
Testo 570s Smart Digital Manifold |
✔ |
✔ |
✔ |
✔ |
Testo 115i wireless clamp temperature probe x2 |
|
✔ |
✔ |
✔ |
Testo 1552i Vacuum Probe |
|
✔ |
✔ |
✔ |
Hose Filling Set (4 Hoses) |
|
|
✔ |
|
Testo 770-3 TRMS Clamp Meter |
|
|
|
✔ |
Calibration Protocol for Testo 570s |
✔ |
✔ |
✔ |
✔ |
Instrument Case |
|
✔ |
✔ |
✔ |
Key Features
Testo 570s Digital Manifold
- Digital manifold with a four-way valve lock
- Bluetooth capability
- Large data memory
- Conduct long term measurements for refrigeration , air conditioning systems and heat pumps
- Optional temperature, vacuum and current probes can be automatically connected with Bluetooth
- Highly accurate 0.25% fs
- Measurements displayed on the large screen
- Compatible with the Testo Smart App
- Large 360 hour battery life
- Auto off function
- IP54 protection rating
- Suitable for use with A2L and A3 refrigerants
- Reliable tester for short and long term data measurements.
Testo 115i
- Temperature range: -40˚C to 150˚C
- Accuracy: ±1.3˚C (-20˚C to 85˚C)
- Resolution: 0.1˚C
- Clamping diameter: 6mm to 35mm
- Suitable for refrigeration and HVAC applications
- Wireless Bluetooth communication over 100 metres
- Works with free Testo Smart Probes app
- Battery life of 150 hours
Testo 552i
- Swift vacuum measurement
- Graphical display in App or Digital Manifold
- Integrated 45˚ angle for easy installation
- Connects automatically to free Testo Smart App or Manifold
- 130m Bluetooth Range
- Operation through single service port
- Designed to avoid unnecessary leaks
- Compatible with Testo 550s and 557s Digital Manifolds
- Robust housing
- Rated IP54
