Testo 835-H1 Infrared Thermometer

Testo
SKU: TESTO835H1
  • Measure surface temperature from a distance using non-contact IR sensor
  • Temperature range of -50˚C to 600˚C with ±1% accuracy and 0.1˚C resolution
  • Humidity sensor (0 to 100% RH) allows calculation of dew point and AW value
More Info
Typically ships in 2-4 working days

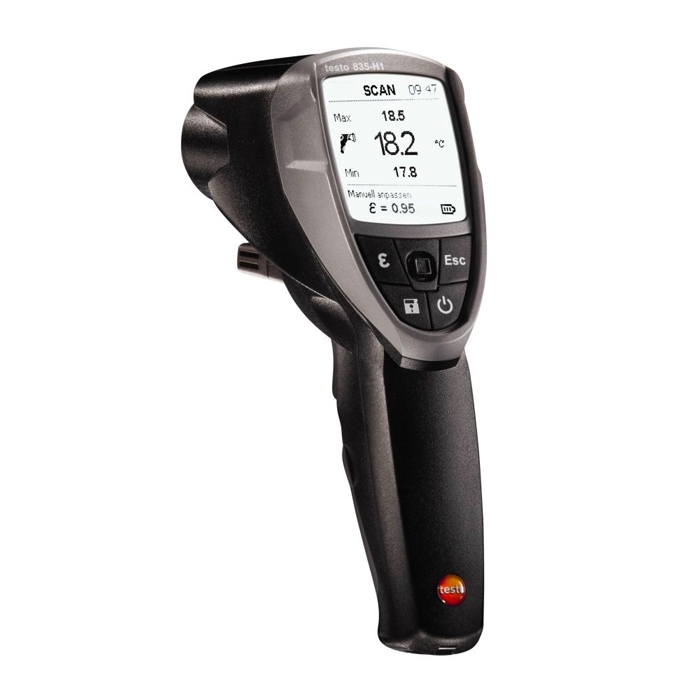

Testo 835-H1 Infrared Thermometer

The Testo 835-H1 Infrared Thermometer is a useful combination of a non-contact thermometer and a surface moisture meter. The infrared sensor can measure temperature from -30˚C to 600˚C with an accuracy of ±1˚C/1% and resolution of 0.1˚C. The large 50:1 distance-to-spot ratio means that the measurement spot from a distance of 5m is just 10cm in diameter. The measurement point is highlighted by a four-point laser and an internal emissivity table allows accurate adjustment according to the surface under test.

An additional connection for type K thermocouples is particularly useful for performing accurate measurements on low-emissivity surfaces. The thermometer has a -50˚C to 600˚C measuring range and can work with a number of different probes including specialist type K thermocouples for measuring surface, air and liquid temperature.

In addition to its impressive temperature measurement capabilities, the Testo 835-H1 stands out thanks to its non-contact surface moisture calculation. This function is useful when checking for mould-friendly conditions or calculating proximity to dew point. It works simply by measuring humidity from 0 to 100% RH and comparing this to a surface temperature to produce an AW value between 0 and 1, with the critical mould-friendly level above 0.8.

The intuitive menu of the Testo 835-H1 is surprisingly easy to use thanks to clear icons and an ergonomic joystick navigator. Min/max and average readings are shown on the digital screen alongside the time, emissivity level and battery level whilst it is easy to toggle between temperature readings and humidity/AW values. Audible and visual alarm limits can be set for temperature in order to immediately alert the user to problematic readings.

The Testo 835-H1 has an internal memory for up to 200 readings alongside 20 emissivity steps and the readings can be sent to a PC and then analysed with the included ‘Easy Climate’ software package. Other standard accessories include a manufacturer’s calibration protocol and 3 AA batteries.

Testo part number: 0560 8353

Key Features

  • IR temperature range: -50˚C to 600˚C
  • IR accuracy: ±1˚C / ±1%
  • IR resolution: 0.1˚C
  • 50:1 distance-to-spot ratio
  • Four-point laser pointer
  • Internal emissivity table
  • Type K temperature range: -50˚C to 600˚C
  • Type K accuracy: ±(0.5˚C + 0.5%)
  • Type K resolution: 0.1˚C
  • Humidity monitoring: 0 to 100%
  • Calculates dew point and AW value
  • 200-reading internal memory

What's In The Box?

  • Testo 835-H1 Infrared Thermometer
  • Easy Climate software download
  • Humidity module
  • 3 x AA batteries
  • Calibration protocol
Specification

Temperature - TC Type K (NiCr-Ni)

  • Measuring range: -50 to +600 °C
  • Accuracy: ±(0.5 °C + 0.5 % of mv)
  • Resolution: 0.1 °C

Temperature - Infrared

  • Measuring range: -30 to +600 °C
  • Accuracy: ±2.5 °C (-30.0 to -20.1 °C); ±1.5 °C (-20.0 to -0.1 °C); ±1.0 °C (0.0 to +99.9 °C); ±1 % of mv (Remaining Range)
  • Infrared resolution: 0.1 °C

Humidity

  • Measuring range: 0 to 100% RH
  • Accuracy: ±2% RH
  • Resolution: 0.1˚C; 0.1% RH; -0.1˚C t.d.

General technical data

  • Dimensions: 193 x 166 x 63 mm
  • Operating temperature: -20 to +50 °C
  • Housing: ABS + PC
  • Emissivity table: 20 values
  • Laser spot: On / off
  • Standards: EN 61326-1:2006
  • Alarm signal: Audible; Optical
  • Auto-off backlight: 30 s*
  • Auto-off instrument: 120 s*
  • Battery type: 3 batteries type AA (or USB operating with PC-Software)
  • Battery life: 25 h (typical 25°C without laser and backlight) 10 h (typical 25°C without backlight)
  • Display type: Dot Matrix
  • Memory: 200 measuring values
  • Storage temperature: -30 to +50 °C
  • Weight: 514 g
