Testo 875-2i Thermal Camera

SKU
TESTO8752I
  • 160 x 120 resolution provides 19,200 temperature measurement spots.
  • Record voice annotations and include with images.
  • Upgradeable to a 320X240 software resolution with Testo Super Resolution
More Info
inc VAT £2,988.00 ex VAT £2,490.00
Discontinued

Product Details

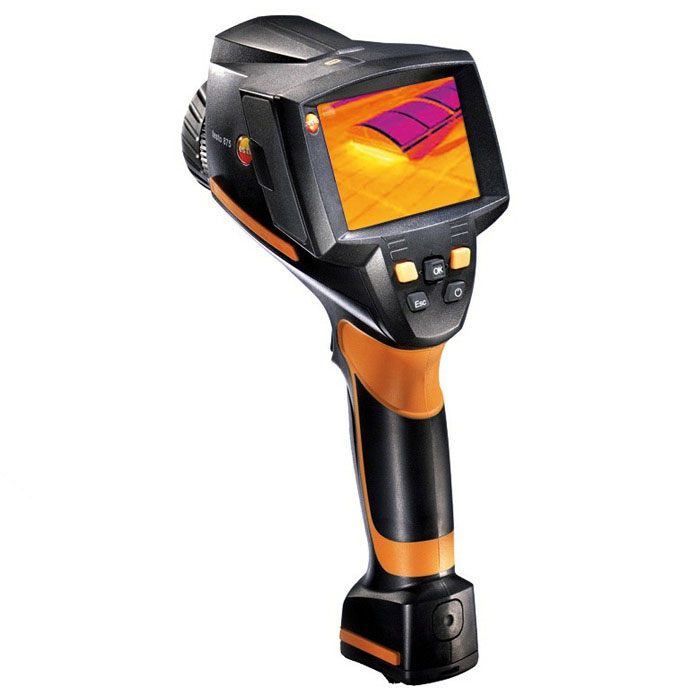

Testo 875-2i Thermal Imaging Camera

This product is discontinued, it has been replaced by the Testo 883.

The Testo 875-2i Thermal Imaging Camera provides professional thermal imaging with a high level of thermal sensitivity, outstanding image quality and simple operation. The Testo 875i-2 offers all the functionality of the 875i-1 but with an optional high temperature range, voice annotations and a mold-risk alarm inbuilt.

Simply point in the direction of your target and the 875-2i Thermal Camera will display thermal images clearly on the large 3.5” screen, allowing hot and cold spots to be quickly visible. In addition, voice annotations can be made using a headset and saved with the relevant image. Complete with the ability to display surface moisture and an option for humidity measurements (using an optional wireless probe), the Testo 875-2i camera is a valuable asset when investigating the condition of a building.

Universally suited to a wide range of applications, the Testo 875-2i is equally adept at performing condition monitoring and predictive maintenance on electrical and mechanical installations as it is at detecting heat loss, damp and thermal bridges during building surveys.

160 x 120 Thermal camera resolution   160 x 120 Pixel Resolution
With 19200 points temperature measurement, the measurement objects are detected in very good image quality, clearly and precisely.

Accurate Thermal Sensitivity (<50mK)   Thermal Sensitivity <50 mK
Thanks to an excellent temperature resolution of <50 mK, even small temperature differences are visible.

Integrated Digital Camera   Integrated Digital Camera with LED Lamps
Parallel to the thermal image, a real image of each object can be taken and stored. The bright LED lamps are ideal for illuminating the target in dark conditions.

Laser Pointer to assist with identification   Laser Pointer
The Laser Pointer assists with locating Hot or Cold spots & temperature anomalies

Automatic Hot & Cold spot recognition   Automatic Hot / Cold Spot Recognition
Critical temperature stati are displayed directly using the automatic hot-cold spot recognition.

Solar Fashion   Solar Fashion
For each measurement, the sun irradiation can be entered into the value camera. This value is stored for each thermal image.

Special Measurement mode   Special Measurement Mode
Using the ambient temperature, air humidity & surface temperature, the dewpoint value is calculated and shown as a real humidity image for detecting areas with danger of mould.

Super Resolution   Super Resolution Technology (optional extra)
For an extra £250 you can increase the thermal resolution by four times, resulting in a 320 x 240 pixel resolution and a huge improvement in thermal image quality, detail and accuracy.

Testo Part Number: 0563 0875 V2

What's In The Box?
  • 875-2i Thermal Camera
  • Testo SuperResolution Thermal Imaging Software
  • Hard Carry Case for safe transportation
  • Pro Software
  • Soft Case
  • Carrying Strap
  • SD card
  • USB cable Download Cable
  • Lens Cleaning Cloth
  • Mains unit
  • Li-Ion rechargeable battery
  • Tripod adaptor
  • User Manual
  • 24 month warranty
More Information
Specification
  • IR resolution: 160 × 120 pixels (19200 Pixels)
  • Field of view (FOV): 32° × 23°
  • Image frequency: 33Hz
  • Thermal sensitivity/NETD: < 0.80mK
  • Temperature range: -20°C to +350°C
  • Battery type: Rechargeable Li Ion battery

If you require a more detailed specification of the Testo 875-2i Thermal Camera please see the following pdf pdf
