Testo 860i Mould Kit Thermal Imaging Camera + Thermohygrometer

Testo
SKU: TESTO860iMKIT
  • Combines the abilities of the Testo 860i and 605i into a solution for the detection and eradication of potential mould issues
  • Testo Smartprobe Thermal Imaging Mould Kit is used in conjunction with the Testo Smart App in order for results to be stored and exported
  • Landlords and surveyors can ensure that they are meeting the requirements of Awaab's Law by taking action on mould/damp related issues
More Info
In Stock - Available Next Day

Testo Smartprobe Thermal Imaging Mould Kit (860i & 605i)

The Testo Smartprobe Thermal Imaging Mould Kit combines the abilities of the Testo 860i Thermal Imaging Camera and the Testo 605i Thermohygrometer into a comprehensive solution for detecting areas that are at risk of mould growth. The 860i's infrared imagery capabilities, coupled with the 605i's ability to measure ambient temperature and relative humidity, allows for the user to identify at-risk areas allowing them to enact preventative maintenance if required. The 860i Thermal Imaging Camera is able to detect areas that may have inadequate insulation, which would therefore be prone to condensation and subsequent mould development. Using the 605i Thermohygrometer to monitor for high humidity also allows for users to further identify environments where mould is likely to thrive.

By utilising the Testo Smartprobe Thermal Imaging Mould Kit, surveyors and landlords can identify and address conditions that may lead to mould growth, in order to ensure healthier living conditions. Tackling the potential cause of an issue before it has developed allows for reparation costs to be avoided. When integrated with the Testo Smart App, which both instruments are able to do via Bluetooth, their capabilities are enhanced. The app is able to display data in real-time, and evaluate the collected data and indicate the risk of mould. Users can also save measurement data as a PDF or Excel file, ensuring that any relevant issues are able to be analysed and stored.

The Testo Smartprobe Thermal Imaging Mould Kit allows for landlords and surveyors to proactively identify and take action on conditions that may result in mould growth, ensuring that properties meet the standards set by Awaab's Law. This law requires landlords to investigate and take action on mould issues as soon as they are reported, and was put in place after the tragic death of Awaab Ishak due to prolonged exposure to damp and mould. Implementing the Testo 860i and 605i allows for these standards to be met. To learn more about Awaab's Law and what it means, click here to read our article on the topic.

The Testo 860i Thermal Imaging Camera

The Testo 860i Thermal Imaging Camera is a versatile tool for HVAC professionals, offering simple operation, high accuracy, and wireless connectivity to iOS and Android devices via the Testo Smart App. It features DeltaHeat and DeltaCool functions for quick analysis of temperature differences in heating, refrigeration, and air conditioning systems, with easy documentation and sharing of results on-site. Designed for durability and convenience, it boasts an IP54 rating for dust and water resistance, 1.5m drop protection, and a rechargeable lithium battery for long, reliable operation. Its 256 x 192 pixel infrared resolution ensures clear, precise thermal imaging, making it ideal for everyday use.

Additionally, the 860i has three specialised measuring programs, which are used through connection to the free Testo Smart App: DeltaHeat for swiftly determining the spread between flow and return temperatures in radiators, DeltaCool for analyzing temperature differences in refrigeration and air conditioning systems, and a humidity mode to assess mould risk in buildings.

The Testo 605i Thermohygrometer

The Testo 605i Advanced Bluetooth Thermohygrometer, part of the Testo Smart Probes range, accurately measures air temperature (-20°C to 60°C) and humidity (0 to 100% RH) with precision. A 100m Bluetooth range connects to the free Testo Smart Probes app on iOS and Android devices, enabling remote readings, dew point, and wet bulb calculations directly on the user’s smartphone. Designed for versatility, it features a 73mm bendable shaft to access tight spaces, built-in magnets for hands-free attachment to metal surfaces, and a long-lasting 150-hour battery life — making it a reliable, convenient tool for HVAC professionals.

Testo Smart App Compatible

One app for all Bluetooth®-enabled Testo measuring instruments.

✅ Effortlessly Configure Testo Instruments
✅ Real-Time Data Display
✅ Access Data Anywhere & Anytime
✅ Customer & Site Project Management
✅ Professional Test Results Documentation
✅ Instant Report Sharing

Download today and make every measurement count (available on Android & iOS).

The app is FREE to download and includes lifetime extensions and updates.

Testo part number: 300563 0861

Key Features

  • Combines the abilities of the Testo 860i Thermal Imaging Camera and the Testo 605i Thermohygrometer
  • Users can detect areas that are at risk of mould growth when using the instruments in combination
  • The 860i's infrared imagery capabilities, coupled with the 605i's ability to measure ambient temperature and relative humidity, allows for the user to identify at-risk areas
  • The 860i is able to identify areas that may have inadequate insulation, with the 605i able to monitor for high humidity
  • Can be used with the Testo Smart App to meet the requirements of Awaab's Law, by proving that action is being taken
  • The Testo Smart App can display results and allows them to be exported for analysis

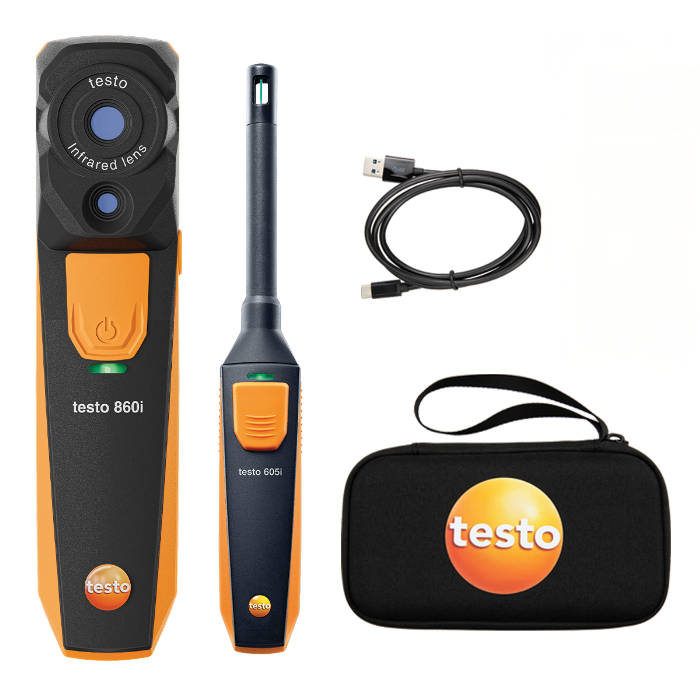

What's In The Box?

  • Testo 860i Thermal Imaging Camera
  • Protective Case
  • USB-C Cable
  • Testo 605i Advanced Bluetooth Thermohygrometer
  • 3 x AAA batteries
  • Calibration protocol
  • Instructions for Testo 605i
Specification

Testo 860i Thermal Imaging Camera

Infrared Image Output

  • Infrared Resolution - 256 x 192 pixels
  • Thermal Sensitivity (NETD) - 50mK
  • Field of View (VFOV/HFOV)/ Minimum focusing distance - 48° x 36° / 0.3m
  • Geometric Resolution (IFOV) - 3.3mrad
  • Image Refresh Rate - 9Hz
  • Focus - Fixed
  • Spectral Range - 8 to 14 µm

Visual Image Output

  • Image Size / Minimum focusing distance - 640 x 480 pixels / 0.4m

Measurement

  • Measuring Range - -20 to +350 °C
  • Accuracy - ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40°C and scene temperature of 0... +150 °C or +100... +350 °C)
  • Emissivity/reflected temperature adjustment - 0.01 to 1 / manual (via Testo Smart App)

Measurement Functions (in the Testo Smart App)

  • Analysis Functions - Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
  • Application-Specific Measurement Functions - DeltaHeat, DeltaCool, humidity mode
  • Humidity Mode (Manual) - Yes
  • Humidity Measurement with Humidity Measuring Instrument - Automatic transfer of the optional Testo 605i or Testo 625 Thermohygrometer readings via Bluetooth to the Testo Smart App
  • Electrical Mode (Manual) - Input of current, voltage or power
  • Electrical Measurement with Clamp Meter - Automatic reading transfer of the optional Testo 770-3 Clamp Meter via Bluetooth to the Testo Smart App

Image Presentation (in the Testo Smart App)

  • Display Options - IR image, real image (overlay in IRSoft possible)
  • Fullscreen Mode - Yes
  • Colour Palettes - Iron, Rainbow, Rainbow HC, Cold-Hot, Blue-Red, Grey, Inverted Grey, Sepia, Testo, Iron HT, Humidity Palette
  • Digital Zoom - Yes

General App Functions

  • File Format - Share saved images as .bmt (for editing in IRSoft), .jpg. and .csv files with the Testo Smart App
  • Image Storage - On a mobile device
  • Remote-Controlled Operation - Up to 10m from the mobile device (via WLAN)

Power Supply

  • Battery Type - Integrated Li-ion rechargeable battery
  • Battery Life - 2 hours
  • Charging Interface - USB-C
  • Charging Time - Approximately 90 min, 15-min charge of an empty battery equals 30 min of operating time

Ambient Conditions

  • Operating Temperature Range - -10 to +50°C
  • Storage Temperature Range - -20 to +70°C
  • Air Humidity - 5 to 95% RH, non-condensing
  • Housing Protection Class (IEC 60529) - IP54
  • Impact Resistance Test - 1.5m
  • Vibration - IEC 60068-2-6

Physical Features

  • Weight - 195g
  • Dimensions - 165 x 45 x 38mm
  • Mobile Device Attachment - Clip span: minimum 120mm, maximum 170mm and device depth up to maximum 12mm
  • Tripod Socket - ¼" UNC thread

Compatibility

  • Testo Smart App - Requires iOS 17 or later/Android 14 or later, requires mobile terminal device with Bluetooth 4.0
  • PC Software Testo IRSoft - Windows 11, Windows 10

Data Interface

  • WLAN* - Communication with the Testo Smart App; WLAN*: IEEE 802.11 b/g/n
  • Bluetooth* - Peer-to-peer advertising for fast connection set-up

Testo 605i Advanced Bluetooth Thermohygrometer

  • Humidity range: 0 to 100% RH
  • Humidity accuracy: ±3.0 %RH (10 to 35 %RH); ±2.0 %RH (35 to 65 %RH); ±3.0 %RH (65 to 90 %RH); ±5 %RH (< 10 %RH or > 90 %RH)
  • Humidity resolution: 0.1% RH
  • Temperature range: -20˚C to 60˚C
  • Temperature accuracy: ±0.8˚C (-20˚C to 0˚C); ±0.5˚C (0˚C to 60˚C)
  • Temperature resolution: 0.1˚C
  • Compatibility: Requires iOS 8.3 or newer / Android 4.3 or newer; requires mobile terminal device with Bluetooth 4.0
  • Storage temperature: -20˚C to 60˚C
  • Operating temperature: -20˚C to 50˚C
  • Battery type: 3 x micro batteries AAA
  • Battery life: 150 hours
  • Dimensions: 218mm x 30mm x 25mm (73mm probe shaft)
  • Bluetooth range: 100 metres
