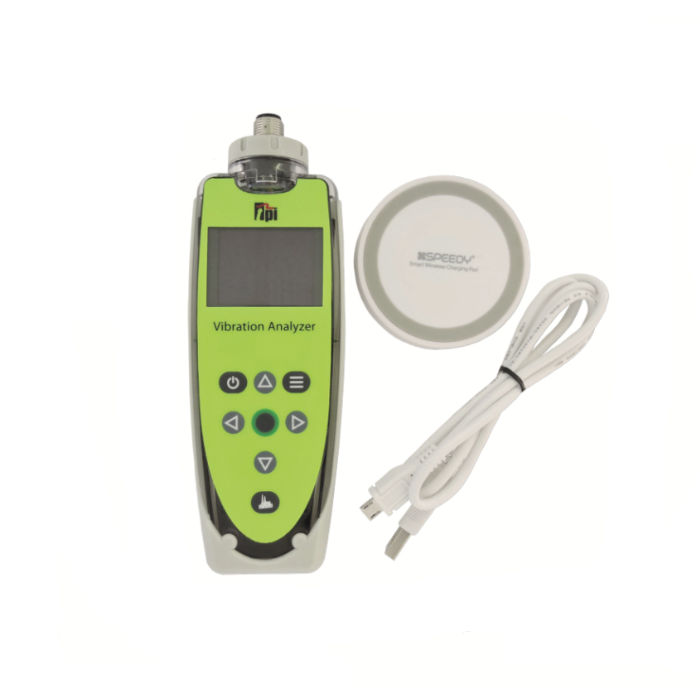

TPI 9084 Vibration & Bearing Condition Analyser c/w Trending Software

TPI
SKU: TPI9084
  • Wireless charging
  • Bearing wear analysis through BDU (Bearing Damage Unit) reading
  • USB/PC connectivity
More Info
Typically ships in 2-4 working days

TPI 9084 Vibration & Bearing Condition Analyser c/w Trending Software

The TPI 9084 Vibration & Bearing Condition Analyser c/w Trending Software is an easy-to-use and low cost solution to vibration and bearing condition analysis. With data export to TPI’s VibTrend software, this tool enables the user to store, analyse and report on all vibration parameters in one place.

Colour coded ISO value alarms provide detailed insight of overall machine and bearing conditions. The 800-line spectrum with zoom and cursor allows the user the identify complex issues from the handset. In addition to the range of convenient features, the unit also boasts a rugged IP67 rated case and 50 hour battery life.

Convenience has also been considered in the design of this analyser, with wireless charging capability included as standard. The included soft carry case ensures that all of the necessary accessories can be transported together, while a 3-year limited warranty provides peace of mind. TPI also includes a free calibration certification for the unit and accelerometer when ordering through Test Meter.

Below, you will find a comparison table outlining the key features between the TPI 9084/TPI9085 Analysers.

Feature 9084 9085 Notes
Analyses and displays ISO vibration levels - 2/10Hz to 1kHz - Misalignment, looseness, unbalance ✔ ✔ Powerful software tool allows routes to be created, specific asset alarm levels, email alerts, performance trending (see an issue developing before it becomes a problem) C-Trend also gives plant heirachy allowing further breakdown of plant assets and easier route identification. C-Trend also gives integration to other TPI vibration units so all data vibration analysers in use can be shown in one software program
C-Trend software to store, analyse and report on vibration data n/a ✔
Automatic reporting and email generation of alerts for any parameter ✔ ✔
Accelerometer connection 5 pin M12 connector, uses low power accelerometers 5 pin M12 connector with temperature sensor in magnet
Input range +/-50g +/-50g
Frequency - ISO 2/10Hz to 1kHz 2/10Hz to 1kHz
Frequency - bearing 1kHz to 10kHz 1kHz to 10kHz
Frequency resolution 800 FFT 800 FFT Allows experienced users to identify most issues
Displayed amplitude units Acceleration in g, velocity in mm/s or inches/s, displacement in microns or mils Acceleration in g, velocity in mm/s or inches/s, displacement in microns or mils
Dynamic range 96dB 96dB
User interface Keypad Keypad
Environmental rating IP67 Waterproof IP67 Waterproof
Operating temp 0°C to 50°C 0°C to 50°C
Power supply Rechargeable battery pack Rechargeable battery pack
Battery life 50 hours 50 hours
Wireless charging ✔ ✔ Time and cost saving feature. No need to remove the 6 screws to replace batteries with wireless charging. Save money on batteries as well. Just leave on charging pad until needed. Charging process will not harm battery if left on pad even when fully charged
Separate accelerometer and cable ✔ ✔ Parts can get damaged in some aggressive industries. Having separate units means if cables get damaged, only need to replace cable rather than cable and accelerometer - saves money if it happens
Instant contact temperature built in to accelerometer   ✔ See below

9085 Temperature

Measures temperature at the same time as vibration to determine if a bearing requires lubrication - prevents wear and failures
Using temperature to confirm a high BDU reading is caused by a worn bearing and not noise from pump cavitation, gearbox or nearby noisy bearing
Aids in diagnosing a tight loose housing or shaft fit on a bearing
Temperature assists with a potential electrical issues on motors such as winding insulation deterioration, single phasing, broken rotor bars etc

Key Features

  • Collects vibration data
  • Trend analysis through VibTrend PC software
  • USB connectivity to PC for data transfer
  • ISO built-in alarms
  • 800-line spectrum with zoom and cursor
  • Wireless charging pad
  • Colour coded alarms

What's In The Box?

  • TPI 9084 Vibration & Bearing Condition Analyser c/w Trending Software
  • Free TPI calibration certification for analyser and accelerometer
  • Soft carry case
  • Charger
  • Cord
  • Accelerometer Cable
  • Accelerometer
  • Docking cradle
  • USB cable
Specification
  • Size: 7.95” x 2.36”
  • Weight: 280g
  • Water: IP67 waterproof
  • Operating temp: 0°C - 50°C
  • Storage: -20°C - 70°C
  • Power supply: Lithium ion wireless charging
  • Battery life: 1,500 measurements or approx 50 hours of normal use
  • Frequency ranges: ISO - 2/10Hz - 1kHz, g - 10Hz - 10kHz, BDU: 1kHz-10kHz
  • Accuracy: +/-5%
  • Frequency resolution: 800 lines
  • Displayed amplitude units: Acceleration in g / velocity in inches per second or mm per second / Bearing damage in BDU
  • Displayed frequency units: Hz, CPM or RPM
  • Displayed displacement: Peak or peak to peak
  • Input range: +/- 50g
  • Dynamic range: 96dB
  • Auto set up of VA bands
  • Accelerometer connection: 5 pin MIL connector cable with magnet and temperature sensor
  • Communication: Bluetooth or USB docking station and cable to PC; data integration using VibTrend software
  • Standard accessories: A9100 Low power accelerometer with A9105 cable, magnet, A9081A docking station with USV cable, Standard software and carrying case and A9086 Protective boot with magnets
