TPI DC710 Flue Gas Analyser

SKU
TPIDC710
  • Measures oxygen, temperature and carbon monoxide
  • Calculates CO2, air free CO, excess air and combustion efficiency
  • Wireless Bluetooth connectivity to TPI app on user’s smartphone
More Info
inc VAT £318.60 ex VAT £265.50
In Stock - Available Next Day
Choose Your Free Gift
HandyMAN TEK255 Pocket Size Digital Multimeter
Free
£23.95

Key features:

  • Ideal basic Digital Multimeter for Gas/HVAC Installers
  • Measures AC/DC voltage to 600V and resistance to 2MΩ
  • Temperature measurement from -20°C to 1000°C
  • Continuity buzzer, diode testing, data hold function and more
CK Triton XLS 5 Piece Insulated Screwdriver Set (Slotted and Pozi)
Free
£21.50

Set Contains:

  • 5 Piece 1000V Insulated CK Screwdriver Kit
  • 1 x slotted parallel, sizes: 2.5 x 75, 4.0 x 100 & 5.5 x 125mm
  • 1 x Pozidriv, sizes: 1 x 80 & 2 x 100mm
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Free
£14.95

Set Contains:

  • 15mm pipe / tube cutter from Blue Spot Tools
  • 22mm pipe / tube cutter from Blue Spot Tools
  • Adjusts automatically to 15/22mm copper pipe


Product Details

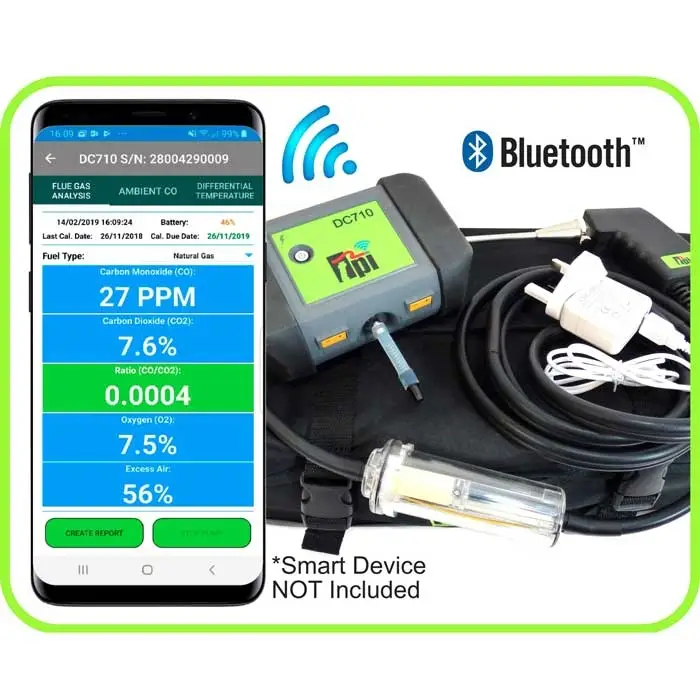

TPI DC710 Flue Gas Analyser

The TPI DC710 Flue Gas Analyser is a smart analyser that has advanced flue gas analysis features plus the ability to communicate wirelessly to the user’s smartphone. It has a CO measurement range from 0 to 10,000ppm and a temperature measurement range from -50˚C to 1000˚C. It can measure oxygen levels from 0 to 25% and calculates values such as CO2, air free CO, excess air, and combustion efficiency.

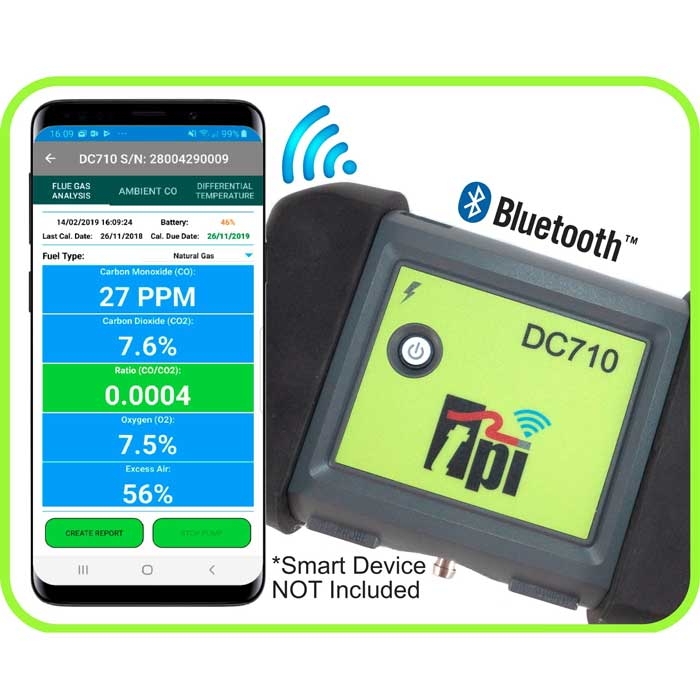

One of the stand-out features of the TPI DC710 is its wireless Bluetooth connectivity which allows it to communicate with the user’s smartphone via the TPI app. As the analyser has no screen of its own, readings are instead displayed directly on the smartphone’s screen. This means that the user can view and control processes from a safe distance without needing long hoses as the analyser can still be hooked up right next to the combustion installation. The app also allows creation of on-site reports and saves results to the smartphone’s memory.

The TPI DC710 has durable, sealed housing which means it can withstand the challenges of day-to-day use. It also has magnets and a hook on the back so it can be fixed in situ whilst the user controls proceedings remotely via the app.

TPI part number: DC710

Key Features

  • Carbon monoxide range: 0 to 10,000ppm
  • Oxygen range: 0 to 25% O2
  • Temperature range: -50˚C to 1000˚C
  • Carbon dioxide calculation
  • Excess air, CO air free, combustion efficiency
  • Wireless Bluetooth connectivity
  • Works with free TPI app on smartphone
  • Creates of on-site reports
  • Magnet and hook mounts
More Information
Specification
  • Carbon Monoxide (CO): Range: 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater
  • Oxygen (O2) Range: 0 to 25%; +/-0.3% O2
  • Temperature Range: -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)
  • Pre-programmed Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse
  • Battery Type: Rechargeable Li-ion (3.7V/2600mA)
  • Battery Life: >6 hours typical
  • Charger Input: USB Connection
  • Operating Temperature: -10°C to 50°C (-14°F to 122°F)
  • Dimensions (W x L x D): 150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”)
  • Weight: 490g (1.1 lb)
  • Gas Sensor Type: Electrochemical field replaceable smart sensors (O2 and CO)
