TPI DC711-View-IAQ Flue Gas Analyser IAQ Kit

TPI
SKU: TPIDC711VIEWIAQ
  • Test flue gases and indoor air quality at the same time
  • View live readings, save results, and email clear reports via the TPI app
  • Supplied in a padded carry case for daily domestic and commercial use
More Info
Typically ships in 2-3 working days
Choose Your Free Gift
ETI Flow Cup Water Flow Measurement Gauge
ETI Flow Cup Water Flow Measurement Gauge
Free
£25.00
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Free
£19.95
Test Meter 630ml Double Walled Water Bottle [FREE GIFT]
Test Meter 630ml Double Walled Water Bottle [FREE GIFT]
Free
£9.99

FREE FILTER PACK! Available while stocks last.
Get a FREE A796-D disc filter + 5 particle filters with every TPI flue gas analyser. [Click here to view the full range]

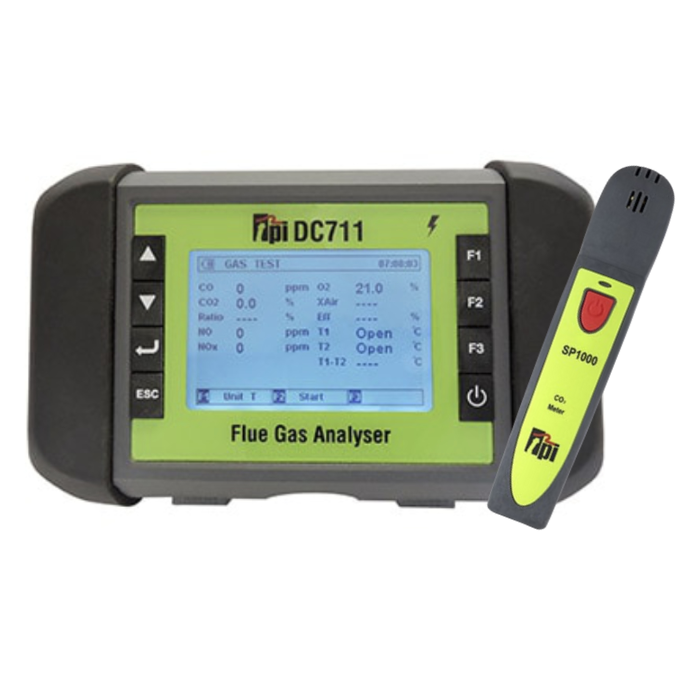

TPI DC711-View-IAQ Flue Gas Analyser IAQ Kit


The TPI DC711-View-IAQ Flue Gas Analyser IAQ Kit is designed to assess combustion performance and indoor air quality at the same time, without carrying multiple instruments. The kit combines the DC711 flue gas analyser with the SP1000 smart CO₂ meter to help professionals improve safety, efficiency and compliance across domestic and commercial environments. The result is faster diagnostics, clearer reporting, and greater confidence when working in occupied spaces.

At the core of the kit is the reliable and easy-to-use TPI DC711 flue gas analyser made for combustion testing on different fuel types. It features a clear digital display, a simple menu system, and practical functions such as pressure and tightness testing, differential temperature measurement for flow and return, and data hold and storage. Readings can be saved, printed, or shared, making it well suited to engineers who need traceable results. The TPI DC711 analyser is durable and economical, with optional upgrades available for NOx and high CO measurement where more advanced analysis is required.

The kit also includes the TPI SP1000 Smart Ambient CO₂ Meter, which allows ambient CO₂ levels to be monitored in spaces such as offices, commercial kitchens, and workplaces. Lightweight and compact, it measures CO₂ concentrations from 0 to 6000 ppm and connects via Bluetooth LE to a compatible smartphone. Users can view live readings in numeric and graph formats, store customer details, export results to CSV, and email reports directly from the site thanks to the TPI app. The TPI SP1000 comes with a built-in magnet at the back which allows hands-free monitoring, making it practical for ongoing indoor air quality checks while other work is carried out.

The DC711-View-IAQ Kit comes complete with probes, a charger, and a padded carry case. It supports modern workflows with optional app use while still functioning perfectly as a standalone solution. It is an excellent choice for most service, maintenance, and safety inspections, offering a solution that prioritises usability, reliability, and clear reporting.

TPI View App

The TPI DC711-View-IAQ Flue Gas Analyser IAQ Kit is compatible with the TPI View App, making it easy to users to take readings and view them on a smartphone or tablet.

part number: DC711-View-IAQ Kit

Key Features

TPI DC711 Flue Gas Analyser

  • Clear and easy to use digital display
  • TPI View App compatible (Optional Extra via ViewUP)
  • Hold function
  • Save and print data
  • Pressure, tightness and differential temperature for flow and return or radiator balancing
  • Chemical sensors
  • Suitable for domestic and commercial use
  • Compatible with a number of fuel types
  • NOx and high CO sensors available (optional)

TPI SP1000 Smart Ambient CO2 Meter

  • Measure ambient CO2 levels in commercial kitchens and office/ work spaces
  • Measurement range: 0-6000ppm
  • Bluetooth LE capability facilitates a connection between the meter and a compatible smartphone
  • Lightweight - less than 100 grams
  • Integrated magnet on reverse side for hands-free viewing
  • Easy-to-use, practical and efficient instrument
  • Measure ambient CO2 in a variety of professional environments

What's In The Box?

  • TPI DC711 Flue Gas Analyser
  • TPI SP1000 Smart Ambient CO2 Meter
  • Probes and charger
  • Padded carry case
Specification

TPI DC711 Flue Gas Analyser

General specifications

  • Operating Temperature Range: -10°C to +50°C
  • Battery / Battery Life: Li-ion 3.7V / > 6 Hours
  • Charger Input: USB “C” type
  • Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
  • Pressure Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
  • Display: Backlit Graphic LCD
  • Data Storage: 100 sets of readings (30 sets for CO Build Up), multiple pages
  • Time and Date: 24 Hour Real Time Clock
  • Dimensions: 185mm x 125mm x 65mm
  • Weight : 830g
  • Conforms to: EN50379 : Parts 1-3

Sensors and measurements

  • Oxygen (O₂): 0–25% with ~0.1% resolution, ±0.3% accuracy
  • Carbon monoxide (CO):
    Low range: 0–10 000 ppm, 1 ppm resolution
    High option (if fitted): up to 100 000 ppm
  • Carbon dioxide (CO₂): 0–25% (calculated)
  • Combustion efficiency & CO/CO₂ ratio: calculated values

Pressure and temperature measurements

  • Selectable Ranges: mbar, psi, inH2O, mmH2O, kPa, hPa, inHg, mmHg, mH2O
  • Range:
    – 150 mbar to + 150 mbar
    -15 kPa to + 15 kPa
    -60 inH2O to 60 inH2O
  • Resolution:
    0.001 mbar (0~9.999 mbar)
    0.01 mbar (10.00~149.99 mbar)
  • Accuracy: +/- 0.5 mbar FSD
  • Input Type: K-Type thermocouple
  • Range: -58°F to 1832°F (-50°C to 1000°C)*
  • Resolution: 1°F (1°C)
  • Accuracy: +/- (0.3% of rdg + 2°F) or +/- (0.3% of rdg + 1°C)

TPI SP1000 Smart Ambient CO2 Meter

  • Range: 0 to 6,000 ppm
  • Resolution: 1 ppm
  • Unit: ppm
  • Accuracy: +/- (50ppm+3% of measurement) at (0 to 5,000ppm Range) +/- (100ppm+7% of measurement) at (5,000 to 6,000ppm Range)
  • Operating Temperature: -20⁰C to 50⁰C (-4⁰F to 122⁰F)
  • Storage Temperature: -20⁰C to 60⁰C (-4⁰F to 140⁰F)
  • Measurement Interval: 2 seconds
  • Battery Type: AAA x 3 (4.5V)
  • Battery Life: 30 hours typical
  • Weight: 99.5 g
