Tramex RHP-NW 10" Narrow RH Probe Din Connection

Tramex
SKU: TRAMRHPNW
  • Suitable for building surveys, 260mm long probe with 4mm diameter width
  • Measure Relative Humidity, Temperature, Dew point temperature and more
  • Din Connection compatible with Tramex DataLoggers or moisture meters
More Info
In Stock - Available Next Day

Tramex RHP-NW 10" Narrow RH Probe

The Tramex RHP-NW 10" Narrow RH Probe is excellent for accessing difficult or small crevices, extremely useful for flood & water damage restoration or building survey tasks. For evaluating the moisture conditions of wall and cavity structures within the building envelope or between tiles, this 4mm diameter probe boasts a best in class accuracy and reliability even at Relative Humidity (RH) above 90%. In addition to measuring RH levels, the RHP-NW can also measure Temperature, Dew Point temperature and grains per ground (grams per kilo) humidity ratio. The RHP-NW has a Relative Humidity range of 0 to 100%, temperature range of -40°C to 80°C and temperature accuracy of ± 0ºC to 90.ºC

Reusable and remarkably robust, the RHP-NW Narrow Probe features a rapid acclimation and temperature response time. Calibration checks can be carried out to ensure consistent accuracy by using the calibration check salts. This fast and accurate probe is compatible with various Tramex instruments depending on the chosen probe connection. When supplied with a Din connection, the RHP-NW is compatible with both the Tramex CMEX II and the MRH III non-destructive moisture meters.

An alternative model of this probe is available with a Bayonet Connection, this ensures compatibility with the Tramex CMEX5 and RHTX Feedback DataLogger.

Key Features

  • 10" (260mm) probe for deep inspections
  • 4mm diameter width
  • Measures; Relative Temperature, Humidity, Dew Point temperature & grains per ground (grams per kilo)
  • Relative Humidity range of 0% to 100%
  • Temperature Range of -40°C to 80°C (-40°F to 176°F)
  • Temperature accuracy of ±0ºC to 90 ºC (2º over 32ºF to 194ºF)
  • Reliable accuracy even above Relative Humidity of 90%
  • Swift acclimation and temperature response time
  • Reusable and robust probe
  • Suitable for building survey professionals
  • Din connection - for Tramex CMEX II and Tramex MRHIII non-destructive moisture meters
  • Perform calibration checks with calibration check salts

Tramex part number: RHP-NW

Specification

Relative Humidity Sensor Specifications

  • Range: 0 → 100% RH
  • Accuracy: 0% → 99%RH ±2.0%RH at 25˚C (77˚F)
  • Resolution: 0.1% over the complete range
  • Drift: <0.25% RH per year

Temperature Sensor Specifications

  • Range: -40˚C → 125˚C (-40˚F → 257˚F)
  • Accuracy: ±0.1 °C Range 20°C → 60°C (±0.1˚F Range 68˚F → 140oF)
  • Sensor Protection: PTFE Film protects sensor opening from water & dust
  • Drift: 0.03˚C (<0.04˚F) per year NIST traceable (National Institute of Standards and Technology)

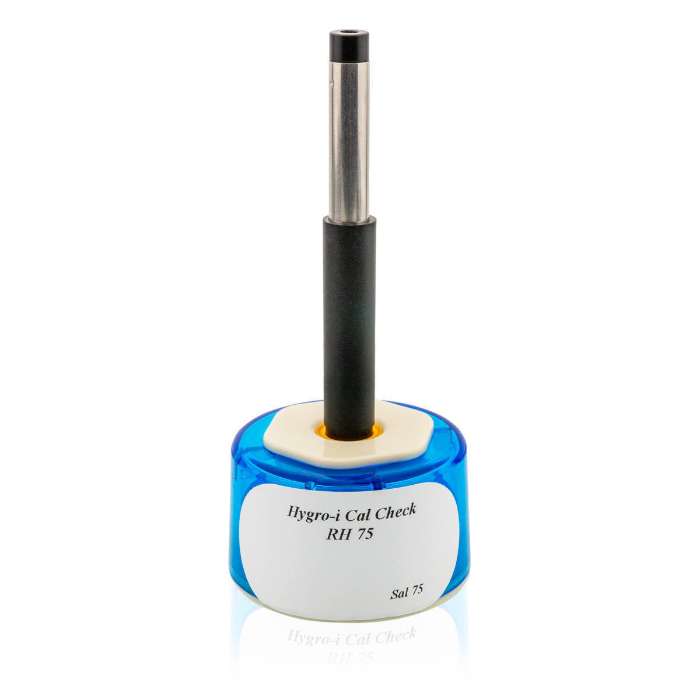

  1. Tramex SAL75N Calibration Salt Check Chamber (75% RH)
