Tramex RHP-NWB 10" Narrow RH Probe Bayonet Connection

Tramex
SKU: TRAMRHPNWB
  • Suitable for building surveys, 260mm long probe with 4mm diameter width
  • Measure Relative Humidity, Temperature, Dew point temperature and more
  • Bayonet connection compatible with Tramex DataLoggers or moisture meters
More Info
In Stock - Available Next Day

Tramex RHP-NWB 10" Narrow RH Probe

The Tramex RHP-NWB 10" Narrow RH Probe with Bayonet Connection is excellent for accessing difficult or small crevices, which is extremely useful for flood & water damage restoration or building survey tasks. When evaluating the moisture conditions of wall and cavity structures within the building envelope or between tiles, this 4mm diameter probe offers a best in class accuracy and reliability even at Relative Humidity (RH) levels above 90%. In addition to measuring RH levels, the RHP-NWB can also measure Temperature, Dew Point temperature and grains per ground (grams per kilo) humidity ratio. The RHP-NWB has a Relative Humidity range of 0 to 100%, temperature range of -40°C to 80°C and temperature accuracy of ± 0ºC to 90.ºC

Reusable and outstandingly robust, the RHP-NWB Narrow Probe features a swift acclimation and temperature response time. Calibration checks can be carried out to ensure consistent accuracy by using the calibration check salts. This fast and accurate probe is compatible with various Tramex instruments depending on the chosen probe connection. With the Bayonet connection option equipped, the RHP-NWB can be used in conjunction with the Tramex RHTX Feedback DataLogger and CMEX5 Concrete Moisture Encounter X5.

An alternative model of this probe is available with a Din Connection, this ensures compatibility with the Tramex CMEX II and MRH III.

Key Features

  • 10" (260mm) probe for deep inspections
  • 4mm diameter width
  • Measures; Relative Temperature, Humidity, Dew Point temperature & grains per ground (grams per kilo)
  • Relative Humidity range of 0% to 100%
  • Temperature Range of -40°C to 80°C (-40°F to 176°F)
  • Temperature accuracy of ±0ºC to 90 ºC (2º over 32ºF to 194ºF)
  • Reliable accuracy even above Relative Humidity of 90%
  • Swift acclimation and temperature response time
  • Reusable and robust probe
  • Suitable for building survey professionals
  • Bayonet connection - for Tramex RHTX Feedback DataLogger & CMEX5 Concrete Moisture Encounter X5
  • Perform calibration checks with calibration check salts

Tramex part number: RHP-NWB

Specification

Relative Humidity Sensor Specifications

  • Range: 0 → 100% RH
  • Accuracy: 0% → 99%RH ±2.0%RH at 25˚C (77˚F)
  • Resolution: 0.1% over the complete range
  • Drift: <0.25% RH per year

Temperature Sensor Specifications

  • Range: -40˚C → 125˚C (-40˚F → 257˚F)
  • Accuracy: ±0.1 °C Range 20°C → 60°C (±0.1˚F Range 68˚F → 140oF)
  • Sensor Protection: PTFE Film protects sensor opening from water & dust
  • Drift: 0.03˚C (<0.04˚F) per year NIST traceable (National Institute of Standards and Technology)

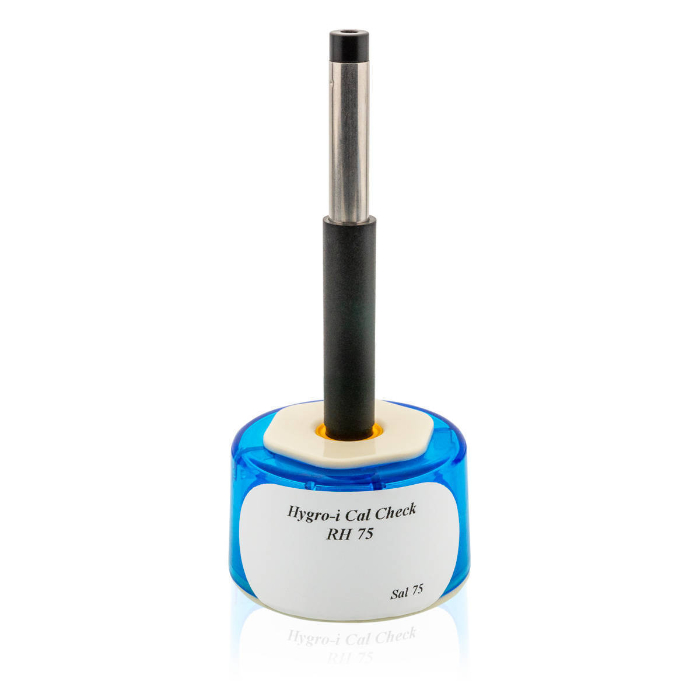

  1. Tramex SAL75N Calibration Salt Check Chamber (75% RH)
