Tramex CMEX5 Concrete Moisture Encounter X5

SKU
TRAMCMEX5
  • Non-destructive digital moisture moisture meter with Carbide Method equivalent readings
  • Ports for optional Hygro-i2 relative humidity probe & heavy duty pin-type wood probes
  • Gravimetric testing for instant & precise quantitive measurements of moisture content
More Info
inc VAT £696.00 ex VAT £580.00
Typically ships in 2-4 working days
Choose Your Free Gift
Tramex E5-HBS Extension Handle & Clamp
Free
£47.00
  • Compatible with all Tramex ME5, CME5, CMEX5 and Skipper 5
  • Useful accessory for measuring in out of reach, high places
  • Comes complete with secure clamp
TMPV-IR50 Infrared Non Contact Thermometer
Free
£49.95


Product Details

Tramex CMEX5 Concrete Moisture Encounter X5

The Tramex CMEX5 Concrete Moisture Encounter X5 is an extremely high quality digital moisture meter with a non-destructive measuring system designed specifically for concrete floors and slabs. Using Gravimetric testing as a baseline, the CMEX5 provides instant and precise quantitive measurements of the moisture content within target areas with a reading range between 0 - 6.9%. For concrete and other such cementitious substrates, the meter provides Carbide Method (CM) equivalent readings alongside comparative readings as per ASTM F2659. The CM measuring range for concrete is 0 - 4.3 while the Gypsum floor screed range is 0 - 12.

Evaluating moisture conditions within slab or screed, the non-destructive method of the Tramex CMEX5 is achieved by measuring the electrical impedance. The material under test via the electrodes in the bottom of the instrument is subjected to a low frequency electronic signal, the strength of which varies depending on the moisture present. The strength of current is determined and converted before being displayed on a large, clear digital display.

Featuring a built-in ambient relative humidity (RH) sensor and in-situ RH / Pin Probe connections, the CMEX5 is ideal for flooring professionals. Compatible with more than 500 wood species, share results with connected smart devices via the internal Bluetooth connection to the Tramex App available for both iOS & Android platforms. Transform the Tramex Concrete Moisture Encounter X5 into an all-in-one instrument with the addition of several optional extras. The meter includes plug-in ports for the optional Hygor-i2 relative humidity probe, heavy duty pin-type wood probes and an extension bracket with telescopic handle.

Optional Hygrometer Mode and Wood Pin-Probe Mode

Plugging the Tramex Hygro-i2 relative humidity probe into the Tramex CMEX5 instantly shifts the instrument into Hygrometer Mode. This allows for in situ relative humidity testing of floor slabs in line with ASTM F2170 and BS8201, BS8203 Hood Method. The resilient and reusable probe can also test ambient conditions of temperature, mixing ratios and dew point, with a relative humidity range of 0 to 99% and humidity accuracy of ±2%.

Convert the Concrete Moisture Encounter X5 into Pin Mode with the addition of the handheld or hammer probe, with this the CMEX5 becomes a resistance type pin meter which can determine the moisture content of wood or wood based items. Providing readings in a range of 5 to 30%, the meter comes complete with a species table and adjustment chart for ensuring precise readings regardless of varying densities or temperatures.

Key Features

  • Professional digital moisture meter with non-invasive measuring methods
  • Purpose built for concrete floors, slabs and other cementitious substrates
  • All-in-one instrument for the flooring professional
  • Uses Gravimetric testing as a baseline for rapid and highly accurate results
  • Concrete %MC reading range - 0 to 6.9%
  • The meter also provides Carbide Method equivalent results
  • Carbide Method equivalent CONCRETE measurement range - 0 to 4.3
  • Carbide Method equivalent GYPSUM measurement range - 0 to 12
  • Comparative readings produced as per ASTM F2659
  • Built-In Ambient RH Sensor
  • In-Situ RH & Pin Probe connections
  • 500+ Wood species available
  • Bluetooth connection to IOS & Android Tramex App
  • OPTIONAL Tramex Hygro-i2 relative humidity probe for Hygrometer Mode
  • Hygrometer mode for testing relative humidity (RH) of floor slabs
  • RH testing per ASTM F2170 and BS8201, BS8203 Hood Method
  • With Tramex Hygro-i2 probe test ambient temperature, dew point and mixing ratios
  • The probe is resilient, reusable & can be checked regularly for calibration
  • Relative Humidity range - 0 to 99%
  • Humidity accuracy - ± 2% (0% to 99%RH at 25°C)
  • OPTIONAL handheld or hammer probe for Pin Mode
  • Pin Mode creates resistance type pin meter for moisture content in wood or wood based items
  • Moisture content in wood range - 5% to 30%
  • Includes species adjustment table and temperature adjustment chart
  • Precise readings in wood even with varying densities & taken at various temperatures
  • OPTIONAL Extension Bracket with Telescopic Handle

Tramex part number: CMEX5

Tramex CMEX5 Concrete Moisture Encounter X5

The Tramex CMEX5 Concrete Moisture Encounter X5 is an extremely high quality digital moisture meter with a non-destructive measuring system designed specifically for concrete floors and slabs. Using Gravimetric testing as a baseline, the CMEX5 provides instant and precise quantitive measurements of the moisture content within target areas with a reading range between 0 - 6.9%. For concrete and other such cementitious substrates, the meter provides Carbide Method (CM) equivalent readings alongside comparative readings as per ASTM F2659. The CM measuring range for concrete is 0 - 4.3 while the Gypsum floor screed range is 0 - 12.

Evaluating moisture conditions within slab or screed, the non-destructive method of the Tramex CMEX5 is achieved by measuring the electrical impedance. The material under test via the electrodes in the bottom of the instrument is subjected to a low frequency electronic signal, the strength of which varies depending on the moisture present. The strength of current is determined and converted before being displayed on a large, clear digital display.

Featuring a built-in ambient relative humidity (RH) sensor and in-situ RH / Pin Probe connections, the CMEX5 is ideal for flooring professionals. Compatible with more than 500 wood species, share results with connected smart devices via the internal Bluetooth connection to the Tramex App available for both iOS & Android platforms. Transform the Tramex Concrete Moisture Encounter X5 into an all-in-one instrument with the addition of several optional extras. The meter includes plug-in ports for the optional Hygor-i2 relative humidity probe, heavy duty pin-type wood probes and an extension bracket with telescopic handle.

Tramex CMEX5 In Use

Optional Hygrometer Mode and Wood Pin-Probe Mode

Plugging the Tramex Hygro-i2 relative humidity probe into the Tramex CMEX5 instantly shifts the instrument into Hygrometer Mode. This allows for in situ relative humidity testing of floor slabs in line with ASTM F2170 and BS8201, BS8203 Hood Method. The resilient and reusable probe can also test ambient conditions of temperature, mixing ratios and dew point, with a relative humidity range of 0 to 99% and humidity accuracy of ±2%.

Convert the Concrete Moisture Encounter X5 into Pin Mode with the addition of the handheld or hammer probe, with this the CMEX5 becomes a resistance type pin meter which can determine the moisture content of wood or wood based items. Providing readings in a range of 5 to 30%, the meter comes complete with a species table and adjustment chart for ensuring precise readings regardless of varying densities or temperatures.

Key Features

  • Professional digital moisture meter with non-invasive measuring methods
  • Purpose built for concrete floors, slabs and other cementitious substrates
  • All-in-one instrument for the flooring professional
  • Uses Gravimetric testing as a baseline for rapid and highly accurate results
  • Concrete %MC reading range - 0 to 6.9%
  • The meter also provides Carbide Method equivalent results
  • Carbide Method equivalent CONCRETE measurement range - 0 to 4.3
  • Carbide Method equivalent GYPSUM measurement range - 0 to 12
  • Comparative readings produced as per ASTM F2659
  • Built-In Ambient RH Sensor
  • In-Situ RH & Pin Probe connections
  • 500+ Wood species available
  • Bluetooth connection to IOS & Android Tramex App
  • OPTIONAL Tramex Hygro-i2 relative humidity probe for Hygrometer Mode
  • Hygrometer mode for testing relative humidity (RH) of floor slabs
  • RH testing per ASTM F2170 and BS8201, BS8203 Hood Method
  • With Tramex Hygro-i2 probe test ambient temperature, dew point and mixing ratios
  • The probe is resilient, reusable & can be checked regularly for calibration
  • Relative Humidity range - 0 to 99%
  • Humidity accuracy - ± 2% (0% to 99%RH at 25°C)
  • OPTIONAL handheld or hammer probe for Pin Mode
  • Pin Mode creates resistance type pin meter for moisture content in wood or wood based items
  • Moisture content in wood range - 5% to 30%
  • Includes species adjustment table and temperature adjustment chart
  • Precise readings in wood even with varying densities & taken at various temperatures
  • OPTIONAL Extension Bracket with Telescopic Handle

Tramex part number: CMEX5

Tramex CMEX5 Optional Probes
Tramex CMEX5 FeaturesTramex CMEX5 Measurements
More Information
Specification
  • Moisture content for Concrete: 0 → 6.9 %
  • Comparative for Gypsum floor screed: 0 → 12
  • CM Equiv Anhydrite/Concrete: 0→2.7 / 0→ 4.3
  • Reference scale: 0 → 100
  • Relative Humidity : 0 → 99% (with optional Hygro-i2 ® probe)
  • Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
  • Moisture content for wood: 5→ 30 % (with optional wood pin probes)
  • Depth of penetration in concrete: approx. 3⁄4" (20mm)
  • Display: Digital
  • Construction: ABS Body
  • Power: 2 x AALR6 ALKALINE (included)
  • Size: 7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm)
  • Weight: 12.59oz (357g)
  1. Tramex HH14SP90 Heavy Duty Pin Type Electrode
    Tramex HH14SP90B Hand Held Electrode
    inc VAT £130.80 ex VAT £109.00
    Available To Order

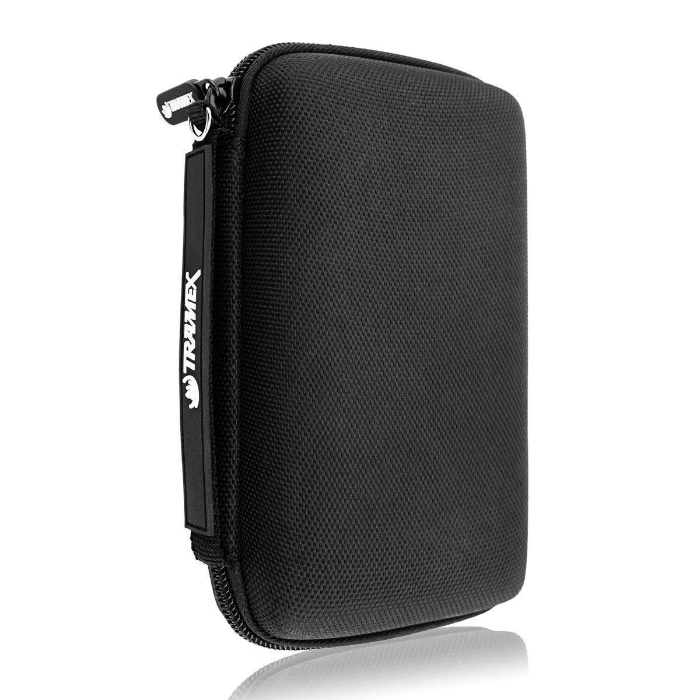

  2. Tramex ALLPOUCH5 - Larger Single Meter Case for CMEX5 or CME5 or ME5
    Tramex ALLPOUCH5 - Larger Single Meter Case for CMEX5 or CME5 or ME5
    inc VAT £19.20 ex VAT £16.00
    Typically ships in 2-4 working days
  3. E5-HBS Extension Handle & Clamp
    Tramex E5-HBS Extension Handle & Clamp
    inc VAT £56.40 ex VAT £47.00
    In Stock - Available Next Day
  4. Tramex RHP-NWB 10" Narrow RH Probe Bayonet Connection
    Tramex RHP-NWB 10" Narrow RH Probe Bayonet Connection
    inc VAT £276.00 ex VAT £230.00
    In Stock - Available Next Day

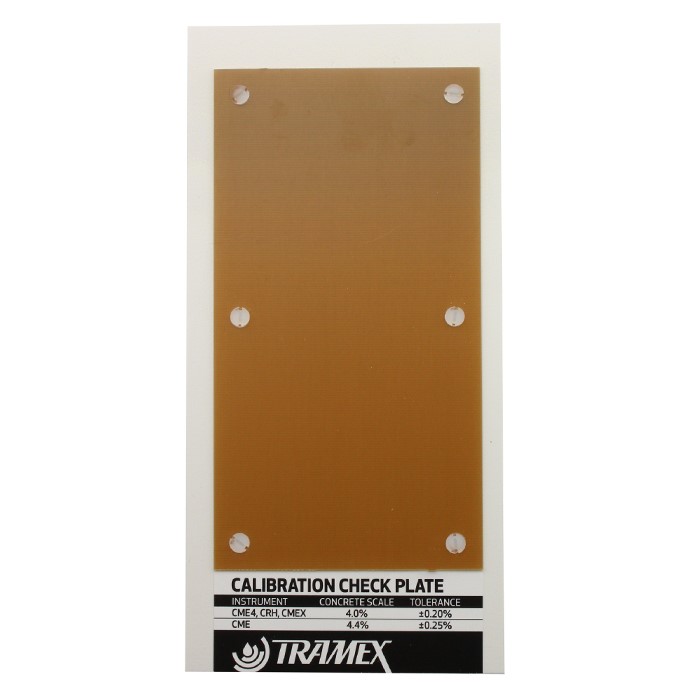

  5. Tramex CALCRH Calibration Check Plate
    Tramex CALCRH Calibration Check Plate
    inc VAT £64.80 ex VAT £54.00
    In Stock - Available Next Day

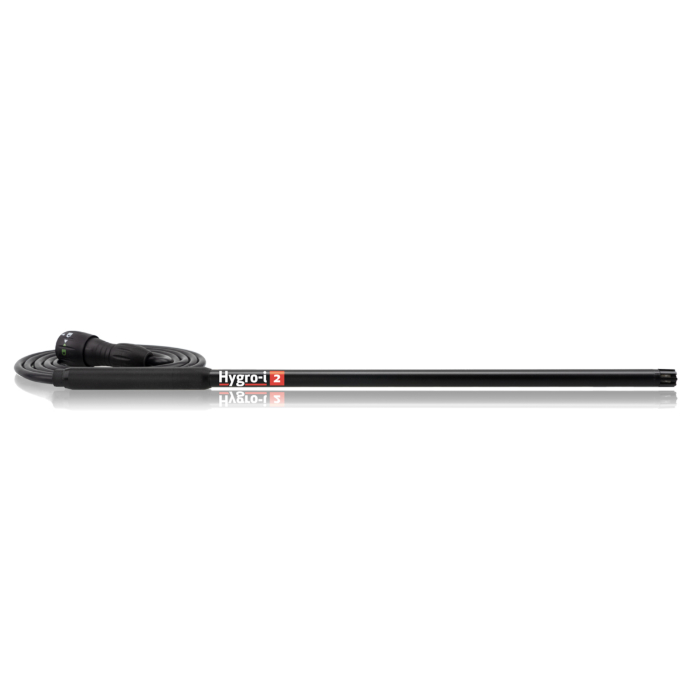

  6. Tramex RHP-LWB 10" Long RH Probe Bayonet Connection
    Tramex RHP-LWB 10" Long RH Probe Bayonet Connection
    inc VAT £226.80 ex VAT £189.00
    Typically ships in 2-4 working days
  7. Tramex ASTM F2170-B Accessory Pack
    Tramex ASTM F2170-B Accessory Pack (AP-F2170-B)
    inc VAT £1,152.00 ex VAT £960.00
    Typically ships in 2-4 working days

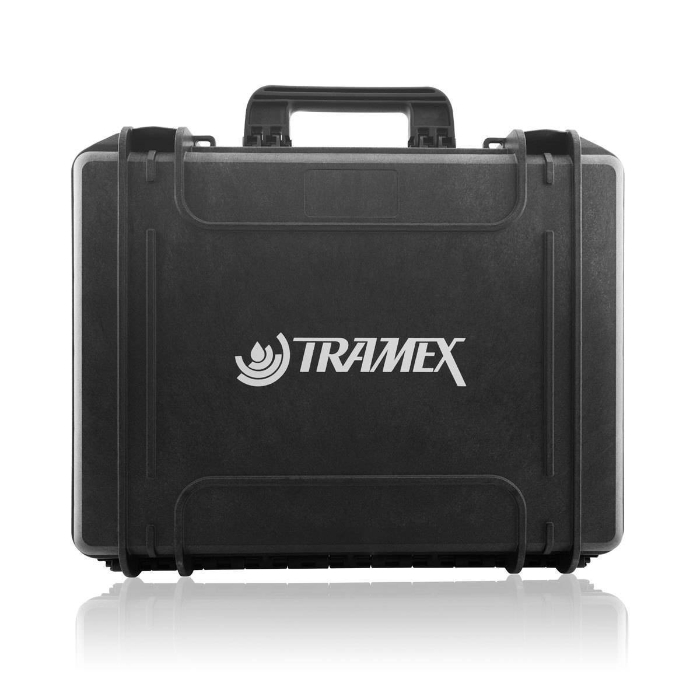

  8. Tramex MAXINS Heavy Duty Carry Case for 2 Instruments: CMEX5, ME5, CME5)
    Tramex MAXINS Heavy Duty Carry Case for 2 Instruments: CMEX5, ME5, CME5)
    inc VAT £91.20 ex VAT £76.00
    Typically ships in 2-4 days working days
  9. Tramex ALLBAGP Carry Case holds 1x Tramex CMEX5 or PTM2
    Tramex ALLBAGP Carry Case holds 1x Tramex CMEX5 or PTM2
    inc VAT £28.80 ex VAT £24.00
    Typically ships in 2-4 days working days
  10. Tramex MAXMASTER Larger Heavy Duty Carry Case for 2 Meters (CMEX5, ME5, CME5) and Accessories
    Tramex MAXMASTER Larger Heavy Duty Carry Case for 2 Meters (CMEX5, ME5, CME5) and Accessories
    inc VAT £162.00 ex VAT £135.00
    Typically ships in 2-4 days working days

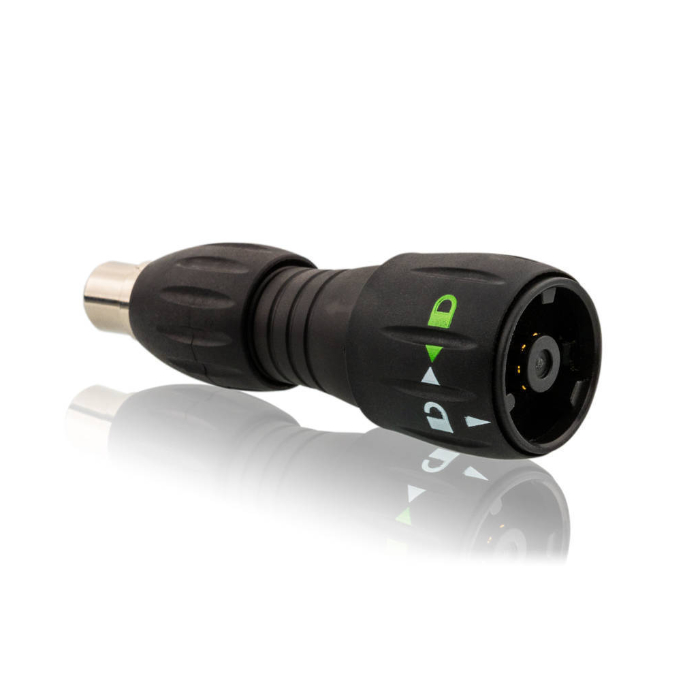

  11. Tramex E5-PA Phono To Bayonet Adaptor
    Tramex E5-PA Phono To Bayonet Adaptor
    inc VAT £62.40 ex VAT £52.00
    Typically ships in 2-4 working days

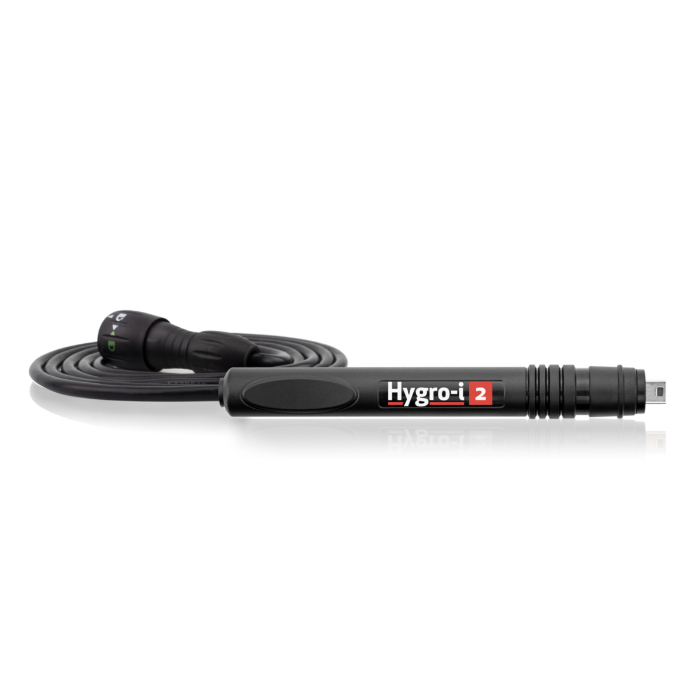

  12. Tramex RHIE2B Electronics Interface Cable Bayonet Connection
    Tramex RHIE2B Electronics Interface Cable Bayonet Connection
    inc VAT £123.60 ex VAT £103.00
    In Stock - Available Next Day

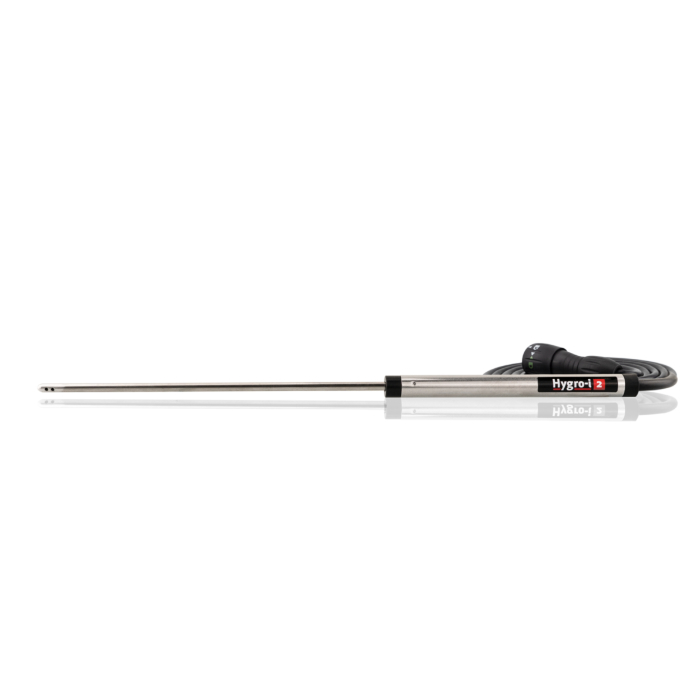

  13. Tramex RHP-SNWB 4.5" Short Narrow RH Probe Bayonet Connection
    Tramex RHP-SNWB 4.5" Short Narrow RH Probe Bayonet Connection
    inc VAT £238.80 ex VAT £199.00
    Typically ships in 2-4 working days
  14. Accessory Pack for Concrete Moisture Encounter 5
    Tramex AP-CM Accessory Pack for CME5 and CMEX5
    inc VAT £118.80 ex VAT £99.00
    In Stock - Available Next Day
  15. Tramex HA21SP52 Hammer Electrode
    Tramex HA21SP52B Hammer Electrodes (with cable and 1.5" insulated pins)
    inc VAT £186.00 ex VAT £155.00
    In Stock - Available Next Day
  16. Tramex Hygro-i Probe - Pack of 1 HIPP1
    Tramex Hygro-i2 Probe - Pack Of 1 HIPP1
    inc VAT £102.00 ex VAT £85.00
    In Stock - Available Next Day
  17. Tramex HH14TP30B Hand Held Electrode
    Tramex HH14TP30B Hand Held Electrode (with cable and 5/8" (30mm) pins)
    inc VAT £118.80 ex VAT £99.00
    Available To Order
  18. Tramex Hygro-i Probe - Pack of 3 sensors HIPP3
    Tramex Hygro-i2 Probe - Pack of 3 sensors HIPP3
    inc VAT £276.00 ex VAT £230.00
    Typically ships in 2-4 working days
  19. Tramex RHP-SWB 4.5" RH Probe
    Tramex RHP-SWB 4.5" RH Probe Bayonet Connection
    inc VAT £168.00 ex VAT £140.00
    In Stock - Available Next Day

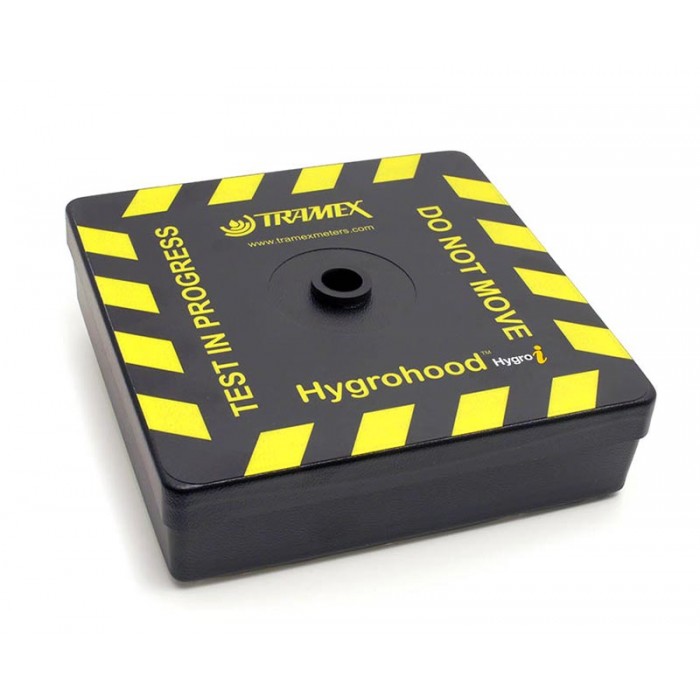

  20. Tramex RHIH Insulated RH Hood for surface RH Testing
    Tramex RHIH Insulated RH Hood for surface RH Testing
    inc VAT £72.00 ex VAT £60.00
    In Stock - Available Next Day
