Tramex RHP-SNWB 4.5" Short Narrow RH Probe Bayonet Connection

Tramex
SKU: TRAMRHPSNWB
  • 110mm long probe with 4mm diameter suitable for building surveys
  • Capable of measuring Relative Humidity, Temperature and more
  • Din connection compatible with Tramex moisture meters or DataLoggers depending on connection
More Info
In Stock - Available Next Day

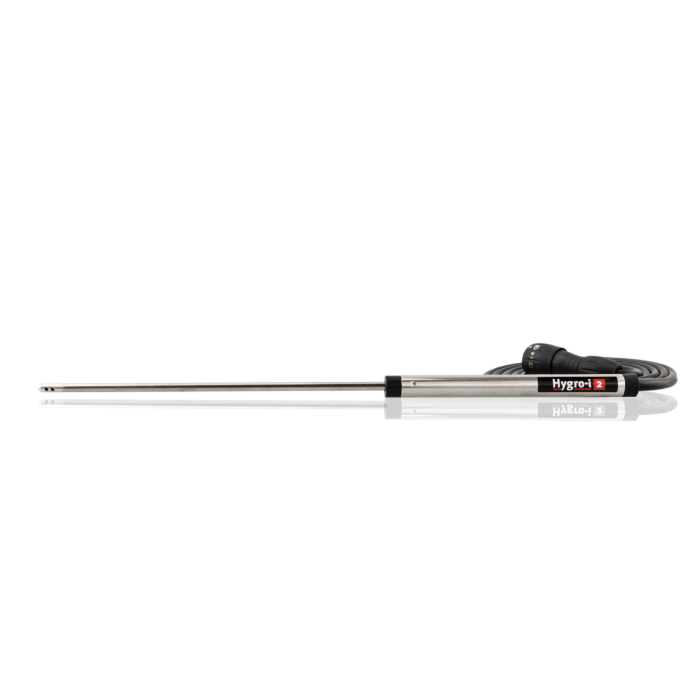

Tramex RHP-SNWB 4.5" Short Narrow RH Probe

The Tramex RHP-SNWB 4.5" Short Narrow RH Probe with a diameter of 4mm diameter is fully capable of measuring Relative Humidity (RH) in small or difficult to access crevices. Alongside RH levels, the probe also measures Temperature, Dew Point temperature and grains per ground (grams per kilo) humidity ratio. This thin probe is ideal for getting between tiles and evaluating moisture conditions in wall/cavity structures within the building. With best in class accuracy and a high level of reliability even at RH above 90%, the probe a useful tool for any building survey professional or flood & water damage restoration job. The RHP-SNWB has a temperature range of -40°C to 80°C, relative humidity range of 0 to 100% and temperature accuracy of ± 0ºC to 90.ºC

Fast and accurate, the RHP-SNWB probe with the Bayonet connection option can be used in conjunction with the Tramex RHTX Feedback DataLogger and CMEX5 Concrete Moisture Encounter Meter X5. Robust and reusable with an extremely fast acclimation and temperature response time, the RHP-SNW can be calibrated by using the calibration check salts.

Should the probe be equipped with the Din Connection option, it can be used in conjunction with both the Tramex CMEX II and the MRH III non-destructive moisture meters.

Key Features

  • 4.5" (110mm) probe for deep cavity inspection
  • 4mm diameter
  • Measures; Relative Humidity, Temperature, Dew Point temperature & grains per ground (grams per kilo)
  • Relative Humidity range: 0% to 100%
  • Temperature Range: -40°C to 80°C (-40°F to 176°F)
  • Temperature accuracy: ±0ºC to 90 ºC (2º over 32ºF to 194ºF)
  • Accuracy reliable even above Relative Humidity of 90%
  • Fast acclimation and temperature response time
  • Robust and reusable probe
  • Suitable for building survey professionals
  • Bayonet connection - for Tramex RHTX Feedback DataLogger & CMEX5 Concrete Moisture Encounter X5
  • Calibration checks performed with calibration check salts

Tramex part number: RHP-SNW

Specification

Relative Humidity Sensor Specifications

  • Range: 0 → 100% RH
  • Accuracy: 0% → 99%RH ±2.0%RH at 25˚C (77˚F)
  • Resolution: 0.1% over the complete range
  • Drift: <0.25% RH per year

Temperature Sensor Specifications

  • Range: -40˚C → 125˚C (-40˚F → 257˚F)
  • Accuracy: ±0.1 °C Range 20°C → 60°C (±0.1˚F Range 68˚F → 140oF)
  • Sensor Protection: PTFE Film protects sensor opening from water & dust
  • Drift: 0.03˚C (<0.04˚F) per year NIST traceable (National Institute of Standards and Technology)
