Tramex RHP-SWB 4.5" RH Probe Bayonet Connection

Tramex
SKU: TRAMRHPSWB
  • 110mm probe suitable for building survey professionals
  • For building envelope & concrete surface conditions
  • Bayonet connection compatible with Tramex moisture meters or DataLoggers
More Info
In Stock - Available Next Day

Tramex RHP-SWB 4.5" RH Probe

The Tramex RHP-SWB 4.5" RH Probe is an compact tool built for evaluating conditions within building envelopes and concrete surfaces. The 110mm long probe is ideal for building survey professionals and water damage restoration as it contains the latest in Hygro-i2 technology. This probe is fully capable of measuring Relative Humidity (RH), Temperature, Dewpoint temperature and grains per pound in structural materials such as concrete flooring and walls. The RHP-SWB features a temperature range of -40°C to 80°C, relative humidity range of 0 to 100% and has a temperature accuracy of ± 0ºC to 90.ºC. All results are shown simultaneously on one clear display with accuracy and reliability ensured even at RH levels of above 90%.

With a Bayonet connection attached, the probe is fully compatible with the Tramex MEX5, RHTX Feedback DataLogger and the CMEX5 concrete moisture meter. The proven robustness, durability and reusability of the RHP-SWB creates an especially useful probe with rapid acclimation and temperature response times. Furthermore, with the addition of calibration check salts, reliability and accuracy are ensure for much longer.

The Tramex RHP-SWB 4.5" RH Probe is also availble with a Din Connection suitable for the Tramex CMEX II and the MRH III.

Key Features

  • 4.5" (110mm) probe
  • Measures - Relative Humidity, Temperature, Dew Point temperature & grains per ground (grams per kilo)
  • Suitable for Flood and Water Damage Restoration
  • Evaluate moisture conditions of wall and cavity structures
  • Check ambient air conditions within the building envelope
  • Relative Humidity range: 0% to 100%
  • Temperature Range: -40°C to 80°C (-40°F to 176°F)
  • Temperature accuracy: ±0ºC to 90 ºC (2º over 32ºF to 194ºF)
  • Reliable RH accuracy > 90%
  • Fast acclimation and temperature response time
  • Resilient and reusable probe
  • Bayonet connection - for Tramex RHTX Feedback DataLogger, MEX5 & CMEX5
  • Calibration checks performed with calibration check salts

Tramex part number: RHP-SWB

Specification

Relative Humidity Sensor Specifications

  • Range: 0 → 100% RH
  • Accuracy: 0% → 99%RH ±2.0%RH at 25˚C (77˚F)
  • Resolution: 0.1% over the complete range
  • Drift: <0.25% RH per year

Temperature Sensor Specifications

  • Range: -40˚C → 125˚C (-40˚F → 257˚F)
  • Accuracy: ±0.1 °C Range 20°C → 60°C (±0.1˚F Range 68˚F → 140oF)
  • Sensor Protection: PTFE Film protects sensor opening from water & dust
  • Drift: 0.03˚C (<0.04˚F) per year
  • NIST traceable (National Institute of Standards and Technology)

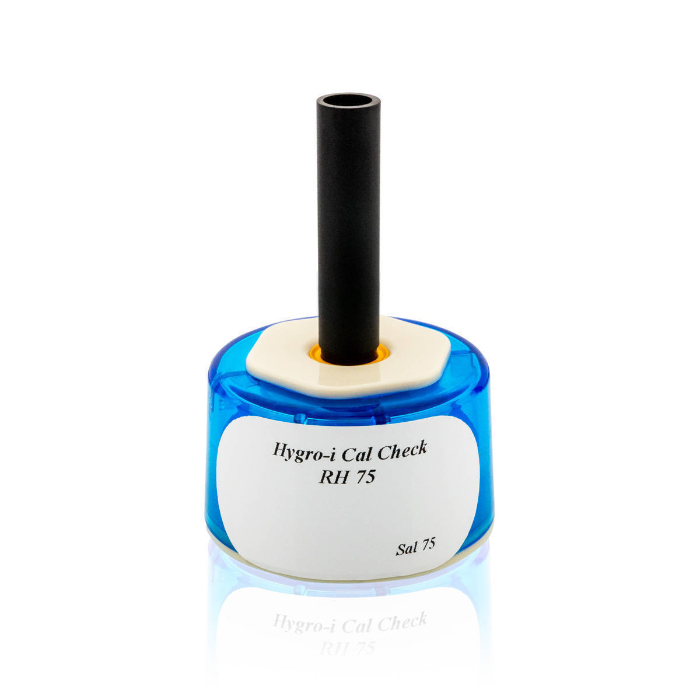

  1. Tramex SAL75S Calibration Salt Check Chamber (75% RH)
