BAUR KSG200TA HV / LV Cable Identifier – Battery Powered

BAUR
SKU: BAURKSG200TA
  • Both single and multi-core cables can be identified using this instrument with ease, whether it be a bundle or cable loom
  • The KSG200TA can be used on live cables, with the KSG200A an alternative which is able to be used on de-energised cables
  • The system includes both a transmitter and a receiver, and a transport case which is able to safely house the accessories and set
More Info
Typically ships in 2-3 weeks

BAUR KSG200TA HV / LV Cable Identifier – Battery Powered

The BAUR KSG200TA HV / LV Cable Identifier is an extremely accurate and powerful, battery-powered, cable identification system which is able to identify both single and multi-core cables, that are in either a cable bundle or loom. The KSG200TA assists in reducing the risk of miscutting or damaging a live cable, which could cause supply failures and unplanned downtime. The system includes both a transmitter and receiver, with intelligent electronics ensuring that there is clear communication between both of the instruments.

The KSG200TA offers both user-friendly and intuitive operation, which ensures that it can be used without extensive training. The KSG200TA is battery-operated, which differs from the mains-operated KSG200. It is also supplied with a strong and convenient transport case, which ensures safe transportation of both the supplied transmitter and receiver. The user can feel confident that their set is well-protected for transportation, and that they will receive industry-standard results and testing opportunities.

With the KSG200A being a battery-operated instrument, as opposed to the mains-powered KSG200 and KSG200T, it has a rechargeable 12V NiMH rechargeable battery, meaning more convenient usage in a variety of environments, which is not limited by mains coverage. The KSG200TA differs from the KSG200A as it is able to test on live cables, as opposed to just de-energised ones. See the comparison table below for more information on the key differences between the two models.

The KSG200A (Disconnected Tables) and KSG200 TA (Live Cables) Comparison Table

  KSG200A KSG200 TA
Pulse Voltage 300V 300V
Pulse Current Maximum 180A Maximum 180A
Pulse Sequence 15 Pulses per Minute 15 Pulses per Minute
Protection Class Not Applicable in Battery Operation Not Applicable in Battery Operation
Degree of Protection IP40 IP40
Cables to be Used On De-Energised Cables Only Live Cables

BAUR part number: KSG200TA

Key Features

  • Cable identification of live cables
  • Suitable for both single and multi-core cables and branched networks
  • Battery-operated as opposed to mains-operated
  • Automatic recording and analysis of transmitting pulses: amplitude, interval (time), and pulse direction (polarity)
  • Error-free detection of the pulse direction, even at a high loop resistance of up to 400 Ohm
  • High pulse current up to 180A
  • Fully automatic gain adjustment
  • Expert mode for manual gain settings for clear cable identification on compact substations or mixed cable routes
  • Signal uncoupling by means of a flexcoupler for large cable diameter of up to 250mm
  • Current measurement up to 199A
  • Essential for active occupational health and safety
  • Reliable and robust protection technology
  • Ergonomically designed receiver with integrated LCD display
  • No batteries required for the receiver

What's In The Box?

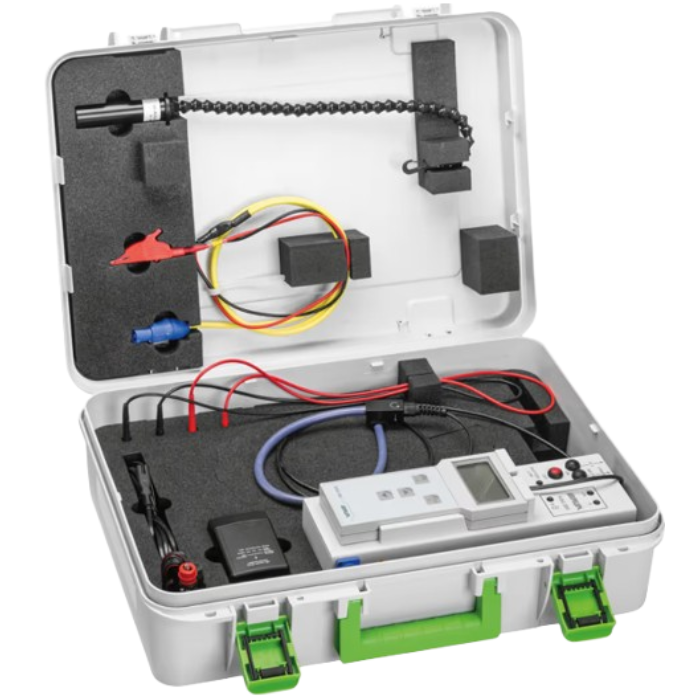

  • KSG 200TA Transmitter with Integrated Rechargeable Battery
  • KSG 200T Receiver
  • Connection Cable, 2m, with Connection Clips
  • Connection Set to Connect to Live LV Cables
  • Flexible Rod, Fully Insulated (for applying the flex coupler to live cables)
  • Mains Supply Cord, 1.8m
  • Charger including Country-Specific Adaptor
  • Vehicle Charge Cable
  • Transport Case for All Components
  • User Manual
Specification
  • Pulse Voltage - 300V
  • Pulse Current - Maximum 180A
  • Pulse Sequence - 15 pulses per minute

Power Supply

  • Mains Voltage - -
  • External Supply - DC 12V
  • Rechargeable Battery - NiMH rechargeable battery 12V
  • Voltage-Proof Output - Maximum 400V, 50/60Hz
  • Measurement Category - CAT IV/600V, Nominal DC or ACrms (line-to-neutral):600V
  • Protection Class - Not applicable in battery operation
  • Degree of Protection - IP40

NiMH Rechargeable Battery (KSG 200 A / KSG 200 TA)

  • Battery Type - NiMH rechargeable battery 12V (10 cells); 4.2 - 5Ah
  • Battery Life - Approximately 2.5 - 3.5 hours
  • Charging Time - Approximately 4.5 - 5 hours
  • Charger -
    Power Supply - 100-240V, 50/60Hz
    Output Voltage - DC 10.5-20V, 1A

General Information on the Cable Identification Systems in the KSG 200 Series

  • Ambient Temperature (Operation) - -10°C to +55°C
  • Storage Temperature - -20°C to +50°C
  • Case Dimensions (W x H x D) - Approximately 594 x 174 x 435mm
  • Weight of Case with Transmitter and Receiver - Approximately 6.2kg (without battery), Approximately 7.7kg (with battery)
  • Safety and EMC - CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental Testing EN 60068-2-ff

Receiver KSG 200A/KSG 200TA

  • Sensitivity
    With galvanic impulse coupling - 100% at a loop resistance of 400Ohm (I = 0.75A)
    With inductive impulse coupling - 100% at a loop resistance of <6 Ohm
  • Load Current Range - 0-199A ± 2%, 50/60Hz
  • Battery Life - Approximately 1.5h
  • Display - LCD Display
  • Power Supply - Automatic recharging in the holder of the transmitter
  • Degree of Protection - IP52
  • Dimensions (W x H x D) - Approximately 100 x 25 x 211mm
  • Weight -
    With flexcoupler Ø 150mm - Approximately 360g
    With flexcoupler Ø 250mm - Approximately 470g
