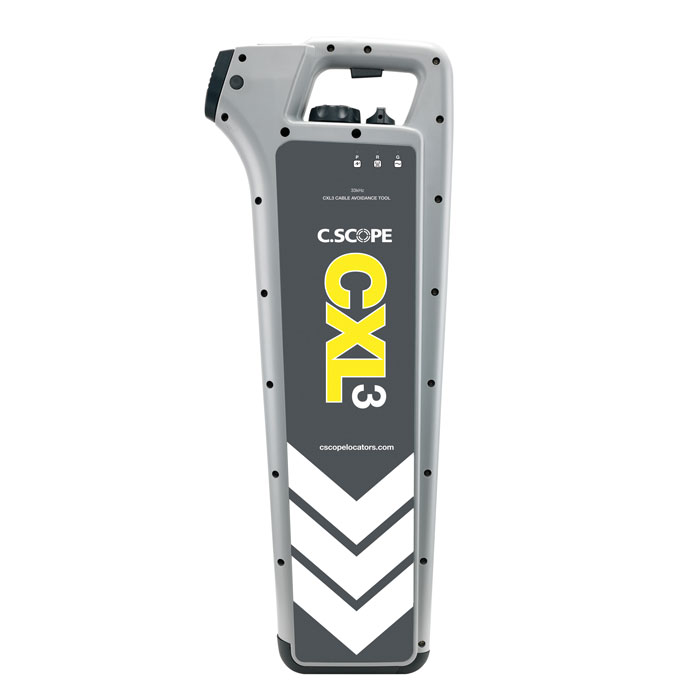

C.Scope CXL3 Cable Avoidance Tool

SKU: CSCOPCXL3
  • Suitable for quick and easy location of subterranean metal pipes and cables
  • Power, radio and generator modes provide flexibility and speed when testing
  • Can be used as a standalone instrument or with a variety of generators
More Info
In Stock - Available Next Day

C.Scope CXL3 Cable Avoidance Tool

The C.Scope CXL3 Cable Avoidance Tool is a useful, handheld cable locator which prevents costly and dangerous contact with underground pipes and cables during construction, civil engineering and utility maintenance projects. The locator can be used in three different modes when searching for cables or pipes underground.

Firstly, power mode picks up on the signal emitted by electric current in cables, which is the quickest way to find hidden cables. Radio mode, meanwhile, detects re-radiated radio signals from metal pipes and cables, thus allowing cable location with just the locator.

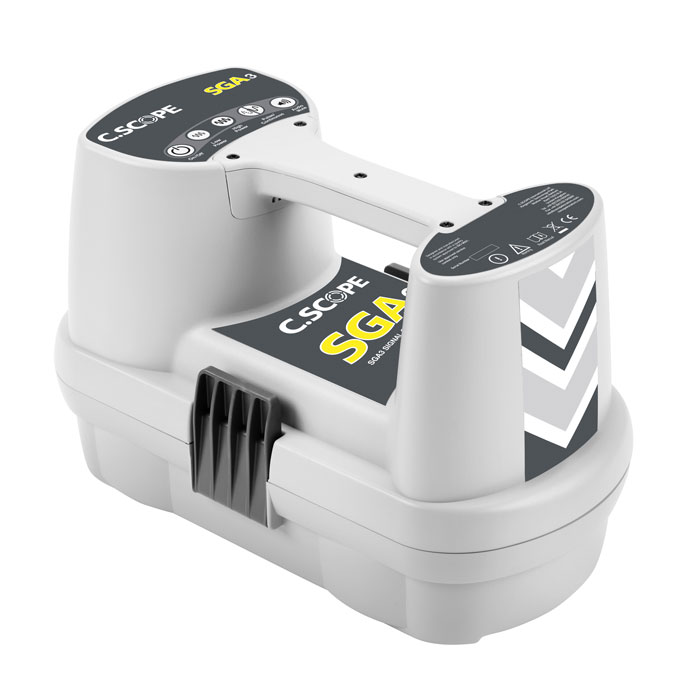

Using a C.Scope SGA3 Signal Generator enables generator mode whereby a signal is artificially applied to a metal pipe or cable. This mode is also compatible with a C.Scope Sonde, Plastic Pipe Tracer, or Flexible Tracer for use on non-metallic piping.

The C.Scope CXL3 provides feedback to the user via an LCD meter and a detachable loudspeaker whilst simple fingertip controls are used to operate the locator.

The sturdy design of the C-Scope CXL3 makes it suitable for use on challenging construction sites. It has IP65-rated casing and storage for spare batteries whilst a three-year manufacturer’s warranty is further testament to the instrument’s durability.

C.Scope part number: CSCAT-33CXL3

Key Features

  • Handheld cable locator
  • Locates underground pipes and cables
  • Power, radio and generator modes
  • Compatible with wide range of signal generators
  • LCD screen
  • Audio feedback to user
  • IP65 weatherproof rating
  • Three-year warranty
Specification
  • Audio Indication: Removable and user replaceable loudspeaker module
  • Visual Indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; Battery Condition
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface

  • Weight (including batteries): 2.9kg (6 pounds 6 ounces)
  • Dimensions: 720mm x 270mm x 63mm (28.3” x 10.6” x 2.4”)
  •
Performance: Locate Accuracy: better than 10% of depth
  • Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery Life: 40 hours intermittent use at 20˚C (68˚F)
  • IP Rating: IP65
Label Type Size Download
pdf C.Scope CXL3 / CXL4 / SGA3 Datasheet pdf 1.1 MB Download
