C.Scope CXL4-D Datalogging Cable Avoidance Tool

SKU: CSCOCXL4D
  • Works in four modes: power, radio, generator, and AllScan
  • AlarmZone™ gives audible warning of shallow cables
  • Datalogging capabilities with large internal memory and USB data transfer
More Info
Contact us for delivery dates

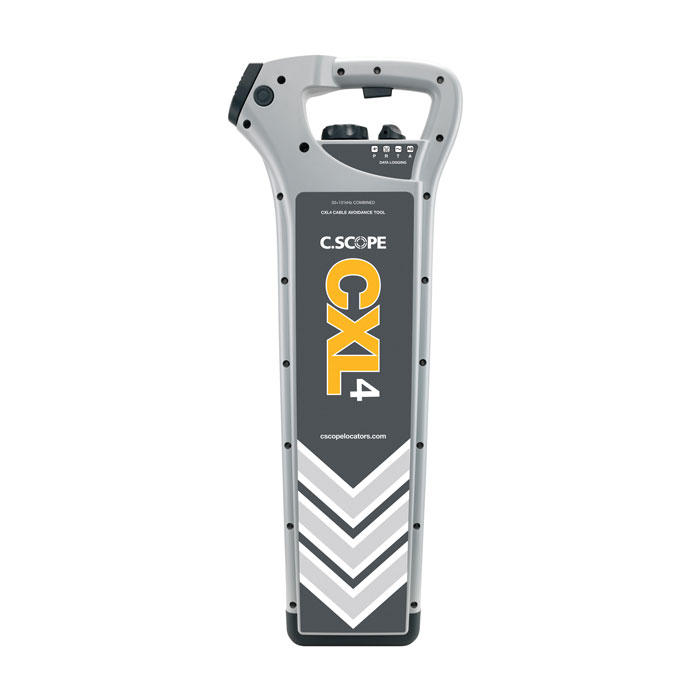

C.Scope CXL4-D Datalogging Cable Avoidance Tool

The C.Scope CXL4-D Datalogging Cable Avoidance Tool is ideal for use during construction, maintenance and utility projects. It can accurately locate underground cables and piping, thus preventing hazardous cable strikes when excavating.

Four different measurement modes allow the C.Scope CXL4-D to act as a standalone instrument or in conjunction with an SGA4 or SGV4 signal generator. As a standalone instrument, power mode picks up on signals from live electric current and radio mode detects radio-type signals emitted by metal pipes and cables.

In generator mode, the C.Scope CXL4-D can detect a 33kHz or 131kHz signal from a generator which greatly increases the accuracy and range of cable location. The 131kHz signal is especially suited for finding thin, short or unearthed cables. Additionally, AllScan mode can detect a wide range of signal frequencies that may lie outside the range of the other three modes. This all adds up to accurate, comprehensive cable location.

Two further features help make the C.Scope CXL4-D easier to use and lessen the chance of user. Firstly, an audible AlarmZone™ alert warns the user of shallow cables/piping, thus lessening the chance of accidental contact. The trigger depth is user-adjustable. The swing alarm, on the other hand, alerts the user if he/she is swinging the locator too much and therefore affecting accuracy. Peak hold is an important feature which remembers where sthe signal is strongest, thus pinpointing the cable or pipe.

Results are displayed on the C.Scope CXL4-D’s clear, backlit screen and saved to the internal memory which has room for roughly 12 months’ worth of readings with normal usage. Data transfer via USB then allows results to be downloaded to a PC where they can be analysed using free C.Scope PC Toolkit software.

The sturdily-built C.Scope CXL4-D is perfect for use on challenging construction sites thanks to its IP65-rated weatherproof casing. A three-year warranty is supplied by the manufacturer and it is easy to carry as it weighs just 2.65kg. Click on the checkboxes above to add an SGA4 or SGV4 Signal Generator.

C.Scope part number: CXL4CAT-D

Key Features

  • Works with generator or as standalone instrument
  • Power, radio, generator and AllScan modes
  • 33kHz and 131kHz frequency detection from generators
  • AlarmZone™ alerts for shallow cabling
  • Swing indicator warns of incorrect use
  • Datalogging with memory for roughly 12 months’ data
  • USB data transfer
  • Free downloadable C.Scope PC Toolkit analysis software
  • IP65-rated weatherproof casing
  • Three-year warranty



 CXL4CXL4-DCXL4-DBGDXL4-DDXL4-DBGMXL4-DMXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
– 33+131kHz
– 131kHz
– 33kHz
– 8kHz
– 512Hz
– 640Hz
All Scan Mode
Accurate Depth Identification
Signal Current Measurement
Data Logging
Data Logging Rate – once per second
2Gb Memory
Data Transfer via USB
Data Transfer via BluetoothTM  –
External Survey Level GPS via BluetoothTM
In-Built GPS position logging
Network Rail Approved
Specification
  • Controls: On/Off Switch: Spring loaded trigger switch under handle Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. All Scan Mode Sensitivity Control
  • Audible Indication: Removable and user replaceable loudspeaker module
  • Visual Indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; AlarmZoneTM; Battery Condition; Self Test Indicator
  • Self Test: Automatic Daily Self Test
  • Swing Indicator: Audio beep to indicate incorrect use of the Locator
  • Generator Mode Frequencies: Simultaneous 131,072Hz and 32,768Hz
  • Datalogging: Internal capacity for storing over 12 months of data (in normal use) logged once per second Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, Frequency, Depth, Signal Current Measurement, Self Test Result, Swing Indicator
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
  • Weight: 2.65kg (5 lb 13 oz)
  • Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
  • Performance: Locate Accuracy: better than 10% of depth
  • Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery Life: 40 hours intermittent use at 20oC (68oF) using alkaline cells
  • IP Rating: 65
Label Type Size Download
pdf C.Scope CXL4 / DXL4 / SGA4 / SGV4 Datasheet pdf 1.2 MB Download
