C.Scope DXL4-DBG Depth Measuring Bluetooth Cable Avoidance Tool

SKU
CSCODXL4DBG
  • Accurate metal pipe/cable location in standalone mode and with a generator
  • Depth measurement from 0.1m to 9.99m with accuracy of ±5%
  • In-built GPS plus Bluetooth connectivity to local GPS Survey equipment
More Info
inc VAT £804.00 ex VAT £670.00
Contact us for delivery dates


Product Details

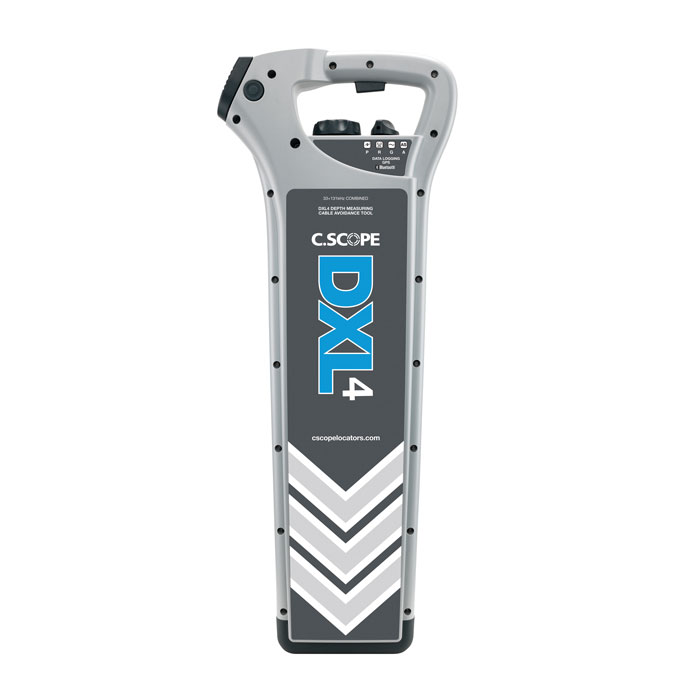

C.Scope DXL4-DBG Depth Measuring Bluetooth Cable Avoidance Tool

The C.Scope DXL4-DBG Depth Measuring Bluetooth Cable Avoidance Tool is a sophisticated cable location instrument that works as a standalone locator or with an SGA4/SGV4 Signal Generator. Its accurate obstacle location capabilities help prevent hazardous, expensive cable strikes during excavation on construction, utilities and railway projects.

In power mode, the C.Scope DXL4-DBG picks up on the signal emitted by live electric current in buried cables. Radio mode, meanwhile, can detect both metal pipes and cables by locating the radio-type signals that can emanate from underground metal surfaces.

The generator mode on the C.Scope DXL4-DBG allows it to work with Signal Generators, thus improving detection of longer, deeper obstacles via 1W energisation and small, thin or unearthed cables via 131kHz frequency signals. The AllScan mode can pick up on frequencies outside the ranges of the other three modes for comprehensive inspections.

In addition to accurate location through signal strength, the C.Scope DXL4-DBG also measures obstacle depth between 0.01m and 9.99m with an accuracy of ±5%. The AlarmZone™ function warns the user if cables are shallowly buried whilst the swing indicator sounds if the indicator is being swung around too much. Peak Hold holds the strongest signal measurement in order to help find the exact location of buried obstacles.

The C.Scope DXL4-DBG has impressive datalogging functions with a large internal memory. The LCD screen displays depth and signal strength readings extremely clearly and data transfer is available via either Bluetooth to the C.Scope Relay Android App and via USB to a PC with C.Scope PC Toolkit software. The in-built GPS function allows the instrument to add location stamps to every saved file. The locator can even connect via Bluetooth to third-party GPS Survey equipment which allows ‘one-pass’ underground utility surveys.

The sturdy construction of the C.Scope DXL4-DBG allows it to withstand a 1m drop and it is IP65 weatherproof rated. A three-year warranty is provided by C.Scope as standard. You can add an SGA4 or SGV4 Signal Generator to this purchase by selecting the checkboxes above.

C.Scope part number: DXL4CAT-DBG

Key Features

  • Power, radio, generator, AllScan modes
  • Detects signal power up to 1W
  • 131kHz frequency detection for thin wires
  • Depth measurement range: 0.1 to 9.99m
  • Shallow-obstacle alarms
  • Swing alarm
  • Datalogging function
  • USB or Bluetooth® data transfer
  • In-built GPS location
  • IP65-rated weatherproof casing
  • Three-year warranty



 CXL4CXL4-DCXL4-DBGDXL4-DDXL4-DBGMXL4-DMXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
– 33+131kHz
– 131kHz
– 33kHz
– 8kHz
– 512Hz
– 640Hz
All Scan Mode
Accurate Depth Identification
Signal Current Measurement
Data Logging
Data Logging Rate – once per second
2Gb Memory
Data Transfer via USB
Data Transfer via BluetoothTM  –
External Survey Level GPS via BluetoothTM
In-Built GPS position logging
Network Rail Approved
More Information
Specification
  • Controls: On/Off Switch: Spring loaded trigger switch under handle Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. All Scan Mode Sensitivity Control
  • Audible Indication: Removable and user replaceable loudspeaker module
  • Visual Indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; AlarmZoneTM; Battery Condition; Self Test Indicator; Depth Measurement
  • Self Test: Automatic Daily Self Test
  • Swing Indicator: Audio beep to indicate incorrect use of the Locator
  • Generator Mode Frequencies: Simultaneous 131,072Hz and 32,768Hz
  • Datalogging: Internal capacity for storing over 12 months of data (in normal use) logged once per second Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, Frequency, Depth, Signal Current Measurement, Self Test Result, Swing Indicator, GPS Position
  • Bluetooth™: Bluetooth 2.1
  • GPS: GPS/QZSS/GLONASS/SBAS
  • Data Connector: Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
  • Weight: 2.65kg (5 lb 13 oz)
  • Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
  • Performance: Locate Accuracy: better than 10% of depth; Depth Accuracy: ±5% @ 1m (3’3”); Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’); Line Depth Resolution: 0.01m (0.4”); Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type; Sonde Depth Resolution: 0.01m (0.4”)
  • Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery Life: 40 hours intermittent use at 20oC (68oF) using alkaline cells
  • IP Rating: 65
Icon Filename Type Size Download
pdf C.Scope CXL4 / DXL4 / SGA4 / SGV4 Datasheet pdf 1.2 MB Download
