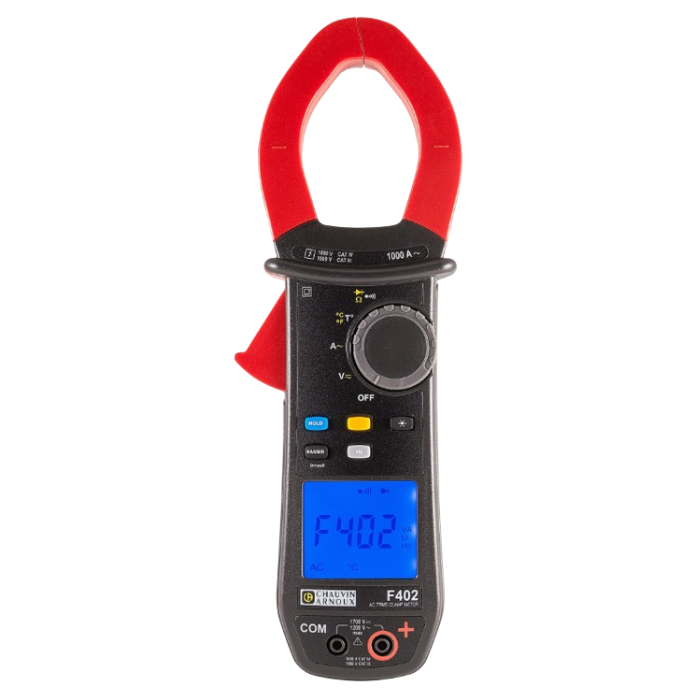

Chauvin Arnoux F402 True RMS Clamp Meter

SKU: CHAUF402
  • Essential for work on installations and equipment which is powered by mains, with an easy-to-use clamp
  • The F402 has an enhanced AC and DC measurement voltage range when compared to the F401
  • A large backlit 10,000-count display, as well as automatic AC/DC detection makes this an essential tool for professionals
More Info
In Stock - Available Next Day

Chauvin Arnoux F402 True RMS Clamp Meter

The Chauvin Arnoux F402 True RMS Clamp Meter builds on the innovative features of the F401 True RMS Clamp Meter, with an enhanced AC voltage measurement range of 50mV to 1200V rms. Also featuring a DC voltage measurement range of 50mV to 1700V, the F402 is the ultimate tool for testing, maintenance, and monitoring, being optimised for installations and equipment powered by mains.

The F402 has a large, 10,000-count backlit display, and provides maximum protection and safety to the user regardless of conditions and installation type. With an IP54 rating, the instrument is protected against dirt and dust, which means it can be used in a plethora of environments with confidence. Whatever the signal's waveform, the F402 offers accurate measurements which can be used by electricians to make informed decisions. With a clamping diameter of 48mm, the clamp meter can complete 'Min and Max' measurements, as well as 'Peak+ and Peak-', 'THD and Harmonics', and '∆REL'.

Chauvin Arnoux part number: P01120942

The F Clamp Meters

Several Chauvin Arnoux True RMS Clamp Meters are available, with different abilities across each instrument. The table below shows their different abilities.

  F402 F404 F406 F604 F606
Display resolution 10,000 counts 10,000 counts 10,000 counts 10,000 counts 10,000 counts
Measurements displayed x1 x1 x1 x1 x1
Display backlighting
Acquisition method AC TRMS AC/DC TRMS AC/DC / AC + DC TRMS AC/DC TRMS AC/DC / AC + DC TRMS
Auto AC/DC (V or/and A)
A - AC 1,000 A 1,000 A 1,000 A 2,000 A 2,000 A
A - DC X 1,500 A 1,500 A 3,000 A 3,000 A
A AC+DC X X 1,500 A peak X 3,000 A peak
V AC 1,200 V 1,200 V 1,200 V 1,200 V 1,200 V
V DC 1,700 V 1,700 V 1,700 V 1,700 V 1,700 V
V AC+DC X X 1,700 V peak X 1,700 V peak
Hz
T° (°C/°F) X X
Adaptor function X X X
2-wire phase rotation X X X
W, var, VA, PF (1F ▣ S3F) X X X
THDf/THDr X X X
Min/Max (100ms)
Peak (1.5ms) X X X
True InRush
RELative function (ΔX & ΔX/X) X X X
IP54
IEC/EN 61010 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III

Key Features

  • 48mm clamping diameter
  • 1,000 A AC Current
  • Voltage up to 1,200 VAC and 1,700 VDC
  • Resistance and audible continuity
  • Temperature
  • Automatic AC/DC detection
  • TrueInRush current measurement
  • Hold, Min, MAX
  • CAT IV 1000 V/CAT III 1,500 V
  • IP54 protection rating

What's In The Box?

  • F402 True RMS Clamp Meter
  • 1 black PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 red PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, black
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, red
  • 1 wire thermocouple with built-in Ø4mm isolated banana connector, spacing 19mm
  • 4 x 1.5V AA alkaline batteries
  • Quick Start Guide
  • 1 bag of pre-equipped for MultiFix
  • Cardboard Box
Specification
  • Ø Clamping diameter - 48mm
  • Display - Backlit LCD
  • Resolution - 10,000 counts
  • Number of values displayed - 1
  • Type of acquisition - TRMS (AC)
  • Autorange - Yes
  • Automatic AC / DC detection - -
  • A AC - 0.25A to 1,000A (1,500 A peak)
  • A DC - -
  • A AC+DC - -
  • Best accuracy - 1% of reading + 3 counts
  • V AC - 0.15V to 1,200V (1,700V peak)
  • V DC - 0.15V to 1,700V
  • V AC+DC - -
  • Accuracy - 1% of reading + 3 counts
  • Hz -
    Current: 5.0Hz to 2,000Hz
    Voltage: 5.0Hz to 20.00kHz
  • Ohm - 0.1Ω to 99.99kΩ
  • Open-circuit voltage - ≤ 3.6V
  • Measurement current - ≤ 550 µA
  • Audible continuity - Yes
  • Continuity threshold - Adjustable from 1 to 999Ω
  • Diode test (semiconductor function) - Yes
  • Temperature (K type) -
    °C: -60.0 to +1,000.0°C
    °F: -76.0 to +1,832°F
  • Single-phase and total three-phase power values - -
  • Active power values - -
  • Reactive power values - -
  • Apparent power values - -
  • PF/DPF - -
  • Harmonic analyses - -
  • THDf/THDr - -
  • Frequential analysis - -
  • Phase rotation (2-wire method) - -

Function

  • True InRush (measurement of overcurrents) - Yes
  • Motor startup - Yes
  • Load evolution - Yes
  • Hold - Yes
  • Min/Max - Yes
  • Peak+/Peak- - -
  • RELativ ∆X / ∆X/X (%) - -
  • Automatic power off - Yes
  • Data recording - -
  • Communication interface - -
  • Ingress protection - IP54
  • Electrical safety as per IEC 61010 - 1000V CAT IV/1500V CAT III
  • Power supply - 4 x 1.5V AA batteries
  • Dimensions & weight - 92 x 272 x 41mm/600g
