Chauvin Arnoux F406 True RMS Clamp Meter

Chauvin Arnoux
SKU: CHAUF406
  • This instrument is optimised for phase rotation, THD, ΔREL, power values, as well as Min/Max/Peak
  • The F406 has enhanced AC and DC measurement voltage ranges when compared to the F405 True RMS Clamp Meter
  • A 48mm clamping diameter ensures that the instrument can be used in a range of environments with a plethora of testing options
More Info
In Stock - Available Next Day

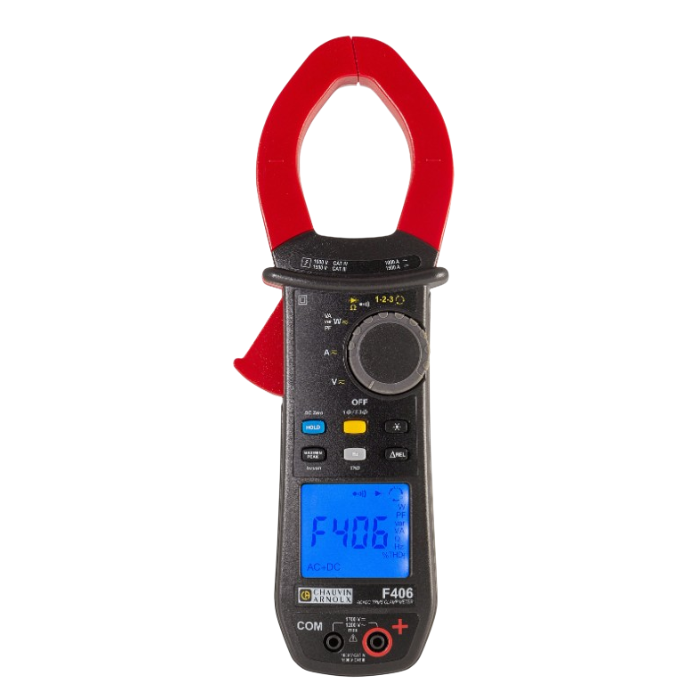

Chauvin Arnoux F406 True RMS Clamp Meter

The Chauvin Arnoux F406 True RMS Clamp Meter builds on the already-strong foundations of the Chauvin Arnoux F405 Clamp Meter, with modifications to the AC and DC voltage measurement ranges of 50mV to 1200V rms and 50mV to 1700V respectively. This instrument is the ultimate tool for maintenance on applications and 'Mixed AC+DC' inspections, with the ability to be used for phase rotation, THD, ΔREL, power values, and Min/Max/Peak.

The F406 has a large 10,000-count backlit display, whilst also providing maximum protection with an IP54 rating. This ensures protection against dust and dirt, and also protects the user no matter the environment it is being used in. Whatever the waveform of the signal, the F406 can offer accurate measurements that can be used by electricians to make informed decisions. With an impressive clamping diameter of 48mm, the user is able to run a plethora of testing options from the instrument, such as 'Min/Max', 'True InRush', 'ΔREL', as well as RELativ ∆X and ∆X/X (%).

Chauvin Arnoux part number: CHAUF406

The F Clamp Meters

Several Chauvin Arnoux True RMS Clamp Meters are available, with different abilities across each instrument. The table below shows their different abilities.

  F402 F404 F406 F604 F606
Display resolution 10,000 counts 10,000 counts 10,000 counts 10,000 counts 10,000 counts
Measurements displayed x1 x1 x1 x1 x1
Display backlighting ✓ ✓ ✓ ✓ ✓
Acquisition method AC TRMS AC/DC TRMS AC/DC / AC + DC TRMS AC/DC TRMS AC/DC / AC + DC TRMS
Auto AC/DC (V or/and A) ✓ ✓ ✓ ✓ ✓
A - AC 1,000 A 1,000 A 1,000 A 2,000 A 2,000 A
A - DC X 1,500 A 1,500 A 3,000 A 3,000 A
A AC+DC X X 1,500 A peak X 3,000 A peak
V AC 1,200 V 1,200 V 1,200 V 1,200 V 1,200 V
V DC 1,700 V 1,700 V 1,700 V 1,700 V 1,700 V
V AC+DC X X 1,700 V peak X 1,700 V peak
Hz ✓ ✓ ✓ ✓ ✓
T° (°C/°F) ✓ ✓ X ✓ X
Adaptor function X ✓ X ✓ X
2-wire phase rotation X X ✓ X ✓
W, var, VA, PF (1F ▣ S3F) X X ✓ X ✓
THDf/THDr X X ✓ X ✓
Min/Max (100ms) ✓ ✓ ✓ ✓ ✓
Peak (1.5ms) X X ✓ X ✓
True InRush ✓ ✓ ✓ ✓ ✓
RELative function (ΔX & ΔX/X) X X ✓ X ✓
IP54 ✓ ✓ ✓ ✓ ✓
IEC/EN 61010 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III

Key Features

  • Has a clamping diameter of 48mm
  • Has a voltage up to 1,200 VAC and 1,700 VDC
  • Resistance and audible continuity
  • Can run Hold, Min, MAX testing
  • CAT IV 1000 V/CAT III 1,500 V
  • Has an IP54 protection rating
  • TrueInRush current measurement
  • RELativ ∆X / ∆X/X (%)

What's In The Box?

  • Chauvin Arnoux F406 True RMS Clamp Meter
  • 1 black PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 red PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, black
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, red
  • 1 black crocodile clip, CAT IV 1000V
  • 4 x 1.5V AA alkaline batteries
  • 1 Quick Start Guide
  • 1 bag pre-equipped for MultiFix
  • 1 Chauvin Arnoux cardboard box
Specification
  • Ø Clamping diameter - 48mm
  • Display - Backlit LCD
  • Resolution - 10,000 counts
  • Number of values displayed - 1
  • Type of acquisition - TRMS (AC, AC+DC)/DC
  • Autorange - Yes
  • Automatic AC/DC detection - Yes
  • A AC - 0.25A to 1,000A (1,500 A peak)
  • A DC - 0.25A to 1,500A
  • A AC+DC - 0.25A to 1,000A (1,500 A peak)
  • Best accuracy - 1% of reading + 3 counts
  • V AC - 0.15V to 1,200V (1,700V peak)
  • V DC - 0.15V to 1,700V
  • V AC+DC - 0.15V to 1,200V (1,700 V peak)
  • Accuracy - 1% of reading + 3 counts
  • Hz -
    Current: 5.0Hz to 2,000Hz
    Voltage: 5.0Hz to 20.00kHz
  • Ohm - 0.1 Ω to 99.99 kΩ
    Open-circuit voltage - ≤ 3.6 V
    Measurement current - ≤ 550 µA
  • Audible continuity - Yes
    Continuity threshold - Adjustable from 1 to 999 Ω
  • Diode test (semiconductor function) - Yes
  • Temperature (K type) - x
  • Single-phase and total three-phase power values - Yes
    Active power values - 1 W to 1,200kW
    Reactive power values - 1 var to 1,200 kvar
    Apparent power values - 1 VA to 1200 kVA
    PF/DPF - Yes/No
  • Harmonic analyses - Yes
    THDf / THDr - Yes/Yes
    Frequential analysis - x
  • Phase rotation (2-wire method) - Yes

Function

  • True InRush (measurement of overcurrents) - Yes
    Motor startup - Yes
    Load evolution - Yes
  • Hold - Yes
  • Min/Max - Yes
  • Peak+/Peak- - Yes
  • RELativ ∆X / ∆X/X (%) - Yes/Yes
  • Automatic Power Off - Yes
  • Data recording - x
  • Communication interface - x
  • Ingress protection - IP54
  • Electrical safety as per IEC 61010 - 1000V CAT IV/1500V CAT III
  • Power supply - 4 x 1.5V AA batteries
  • Dimensions & weight - 92 x 272 x 41mm/600g
