Chauvin Arnoux F606 True RMS Clamp Meter

Chauvin Arnoux
SKU: CHAUF606
  • This RMS clamp meter is expertly designed to be used for maintenance and inspection applications, aswell as mixed AC/DC
  • The F606 has an extremely high measurement voltage range, and has a range of functions that can be utilised
  • Equipped with a 10,000-count backlit displat, this tool is an essential bit of equipment for an industry professional
More Info
In Stock - Available Next Day

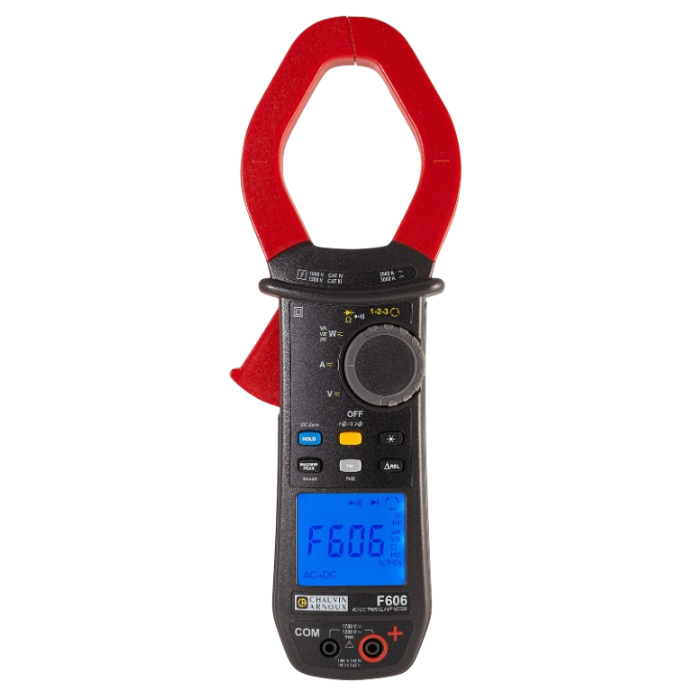

Chauvin Arnoux F606 True RMS Clamp Meter

The Chauvin Arnoux F606 True RMS Clamp Meter has been expertly designed with all the precision you would expect from a Chauvin Arnoux instrument, with voltage measurements of up to 1,200 V AC and 1,700. The F606 is also IP54 protected, which ensures that it is able to withstand against dust and dirt, ensuring it is suitable for a wide range of environments. Usefully equipped with a 12-bit TRMS digital acquisition system, the clamp is able to offer mostly accurate measurements no matter what the waveform of the signal is.

With a large, 10,000 count display which is easy to interpret, and the highest level specified by the IEC 61010 standard (1000V CAT IV & 1500V in CAT III), the F606 is streamlined for use by industry professionals. Also equipped with a 60mm clamp, this instrument is a smart choice when performing inspection and maintenance applications. A wide range of functions can be utilised on this instrument, such as Phase Rotation, THD, ΔREL, and Min/Max/Peak.

Chauvin Arnoux part number: P01120966

The F Clamp Meters

Several Chauvin Arnoux True RMS Clamp Meters are available, with different abilities across each instrument. The table below shows their different abilities.

  F402 F404 F406 F604 F606
Display resolution 10,000 counts 10,000 counts 10,000 counts 10,000 counts 10,000 counts
Measurements displayed x1 x1 x1 x1 x1
Display backlighting ✓ ✓ ✓ ✓ ✓
Acquisition method AC TRMS AC/DC TRMS AC/DC / AC + DC TRMS AC/DC TRMS AC/DC / AC + DC TRMS
Auto AC/DC (V or/and A) ✓ ✓ ✓ ✓ ✓
A - AC 1,000 A 1,000 A 1,000 A 2,000 A 2,000 A
A - DC X 1,500 A 1,500 A 3,000 A 3,000 A
A AC+DC X X 1,500 A peak X 3,000 A peak
V AC 1,200 V 1,200 V 1,200 V 1,200 V 1,200 V
V DC 1,700 V 1,700 V 1,700 V 1,700 V 1,700 V
V AC+DC X X 1,700 V peak X 1,700 V peak
Hz ✓ ✓ ✓ ✓ ✓
T° (°C/°F) ✓ ✓ X ✓ X
Adaptor function X ✓ X ✓ X
2-wire phase rotation X X ✓ X ✓
W, var, VA, PF (1F ▣ S3F) X X ✓ X ✓
THDf/THDr X X ✓ X ✓
Min/Max (100ms) ✓ ✓ ✓ ✓ ✓
Peak (1.5ms) X X ✓ X ✓
True InRush ✓ ✓ ✓ ✓ ✓
RELative function (ΔX & ΔX/X) X X ✓ X ✓
IP54 ✓ ✓ ✓ ✓ ✓
IEC/EN 61010 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III 1000V CAT IV, 1500V CAT III

Key Features

  • Has a clamping diameter of 60mm
  • Voltage of 1,200VAC and 1,700VDC
  • Min, MAX, Peak+, Peak-
  • RELative (ΔX) and differential (ΔX/X) measurements
  • Protected with an IP54 rating
  • CAT IV 1,000V/CAT III 1,500V
  • Has a 2-wire method phase rotation
  • Automatic AC/DC detection
  • Power values (W, var, VA, PF) and Harmonics

What's In The Box?

  • F606 True RMS Clamp Meter
  • 1 black PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 red PVC cable with Ø4mm isolated elbowed male banana plug/Ø4mm isolated straight male banana plug, length 1.5m, CAT IV 1000V 15A, bi-material
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, black
  • 1 test probe/Ø4mm isolated female plug, CAT IV 1000V 15A, bi-material, red
  • 1 wire thermocouple with built-in Ø4mm isolated banana connector, spacing 19mm
  • 4 x 1.5V AA alkaline batteries
  • Quick Start Guide
  • 1 bag pre-equipped for MultiFix
  • 1 Chauvin Arnoux cardboard box
Specification
  • Ø Clamping diameter - 60mm
  • Display - Backlit LCD
  • Resolution - 10,000 counts
  • Number of values displayed - 1
  • Type of acquisition - TRMS (AC, AC+DC)/DC
  • Autorange - Yes
  • Automatic AC/DC detection - Yes
  • A AC - 0.25A to 2,000A (3,000 A peak)
  • A DC - 0.25A to 3,000A
  • A AC+DC - 0.25A to 2,000A (3,000 A peak)
  • Best accuracy - 1% of reading + 3 counts
  • V AC - 0.15V to 1,200V (1,700V peak)
  • V DC - 0.15V to 1,700V
  • V AC+DC - 0.15V to 1,200V (1,700 V peak)
  • Accuracy - 1% of reading + 3 counts
  • Hz -
    Current: 5.0Hz to 1,000Hz
    Voltage: 5.0Hz to 20.00kHz
  • Ohm - 0.1Ω to 99.99kΩ
    Open-circuit voltage - ≤ 3.6V
    Measurement current - ≤ 550 µA
  • Audible continuity - Yes
    Continuity threshold - Adjustable from 1 to 999 Ω
  • Diode test (semiconductor function) - Yes
  • Temperature (K type) - X
  • Single-phase and total three-phase power values - Yes
    Active power values - 1W to 2,400kW
    Reactive power values - 1 var to 2,400kvar
    Apparent power values - 1 VA to 2,400 kVA
    PF/DPF - Yes/No
  • Harmonic analyses - Yes
    THDf/THDr - Yes/Yes
    Frequential analysis - X
  • Phase rotation (2-wire method) - Yes

Function

  • True Inrush (measurement of overcurrents) - Yes
    Motor startup - Yes
    Load evolution - Yes
  • Hold - Yes
  • Min/Max - Yes
  • Peak+/Peak- - Yes
  • RELativ ∆X / ∆X/X (%) - Yes/Yes
  • Automatic Power Off - Yes
  • Data recording - X
  • Communication interface - X
  • Ingress protection - IP54
  • Electrical safety as per IEC 61010 - 1000V CAT IV/1500V CAT III
  • Power supply - 4 x 1.5V AA batteries
  • Dimensions & weight - 111 x 296 x 4mm/640g
