Fluke 1674FC Multifunction EVSE Test Kit

Fluke
SKU: FLUKE1674FCEVKIT
  • Test kit containing the Fluke 1674FC Multifunction Tester and Fluke FEV300 EV Charging Station Test Adaptor with Type 2 Connector
  • Test 6mA RCD-DD tests according to IEC 62955 standards
  • Auto Test Function and Automatic Measurement Validation with immediate visual pass/fail indications
More Info
£2,158.80 £1,799.00
In Stock - Available Next Day

Fluke 1674FC Multifunction EVSE Test Kit

Fluke 1674FC Multifunction EVSE Test Kit provides operators with the ideal tools to enable the checking of the functionality and safety of electric vehicle charging stations including the ability to conduct 6mA DC RCD testing of charging points using the Fluke 1674FC Multifunction Tester and the Fluke FEV300 EV Charging Station Test Adaptor with Type 2 Connector together.

Fluke 1674FC Multifunction Tester

The Fluke 1674FC Multifunction Tester is a powerful tool for fast and reliable testing in a variety of settings. Its full-colour screen and rotary dial make it easy to navigate the menu, and its Auto Test function allows you to conduct the entire installation test sequence with the push of a button. The Automatic Measurement Validation function compares test results to relevant standards and provides an instant visual pass/fail indication, so you can quickly identify any potential problems. By eliminating the need for manual testing, the Fluke 1674FC can help you complete installations more efficiently and accurately. The 1674FC provides a number of tests that complete the electrical installation process including the insulation monitoring device (IMD), the Surge protection Device (SPD) tests and Loop and line impedance — mΩ resolution.

The Fluke 1674FC's high current loop mode enables rapid measurements on loop tests of RCD-protected circuits. It supports non-trip mode for RCD types AC, A, and F, allowing you to complete trip time and current tests in a single sequence, additionally, it can test smooth DC-sensitive RCD types B and B+.

The 1674FC includes Flukes patented Insulation PreTest™️, that better protects the installation and can avoid costly errors. If the tester detects that an appliance is connected to the system during a test, the 1674FC will stop the insulation test and provide the operator with a visual and audible alarm. This PreTest™️ function helps to eliminate any accidental damage to equipment with the possibility to save both time and money.

The 1674FC can be used alongside Flukes TruTest™️ Software (optional extra) to provide simple electrical system data management and reporting. Using TruTest™️ allows for the creation and transfer of data between the software and tester via USB-C or via Fluke Connect App to ensure accurate results. The report builder provides users the ability to quickly format test measurements into printable test certificates and reports, with company logos and signatures also available to be added to test reports.

Compact and lightweight the 1674FC is equipped with a neck strap for hands-free testing, offers a full day of use on a single charge thanks to its rechargeable battery. USB-C charging allows for on-the-go power. The included hard carry case provides secure storage and transportation. The 1674FC boasts impressive safety features, including colour-coded input terminals rated at CAT III 600V and CAT IV 300V for over-voltage protection. It can also detect raised voltages above 50V, highlighting potentially hazardous environments. The 1674FC is field-updatable, ensuring compliance with evolving regulations and allowing for continuous enhancements.

Fluke FEV300 EV Charging Station Test Adaptor with Type 2 Connector

The Fluke FEV300 EV Charging Station Test Adaptor with Type 2 Connector when used alongside the Fluke 1674FC Multifunction Tester allows a user to test the performance and safety of electric vehicle charging points. The adaptor can imitate an electric vehicle opening a charging cycle, activating voltage and current output. The user is able to perform tests on charging stations in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722 standards.

Using the the FEV300 alongside the 1674FC tester allows for a number of tests to conducted including: PE Pre-Test, Proximity Pilot (PP) State, Control Pilot (CP) State and phase indication test. The FEV300 boasts a number of terminals L1, L2, L3, N, and PE allowing for the user to connect Fluke measurement instruments with the CP signal output terminal allowing for the user to check the communication between the adaptor and charging station.

For even more detailed discussion about the 1670 range, watch our podcast episode below

Key Features

Fluke 1674FC Multifunction Tester

  • Full colour touch screen and rotary dial
  • High loop mode for faster measurements
  • Insulation Monitoring Device (IMD) tests
  • Surge Protection Device (SPD) functional test
  • Insulation PreTest safety function
  • Voltage drop measurement function
  • Loop and line impedance — mΩ resolution
  • Z Max memory for loop testing to evaluate the highest loop test value
  • Unique zero adapter for fast, reliable and accurate test lead and main card compensation
  • Simultaneous readings of voltage measurements between L-N, L-PE and N-PE using the mains cord
  • RCD trip current and trip time measurement in parallel displaying them together on the dual display
  • Ring testing enabling the selection of the required inputs sockets without exchanging test leads
  • Continuity test with low test current (10mA) to measure motor windings
  • Earth Volt touchpad that detects earth voltages >50V
  • Compatible with Fluke Connect and Fluke Cloud Storage
  • Prospective Earth Fault Current (PEFC/IK)
  • Prospective Short-Circuit Current (PSC/IK)
  • Rechargeable battery
  • USB-C charging point

Fluke FEV300 EV Charging Station Test Adaptor with Type 2 Connector

  • PE conductor can be tested for possible presence of dangerous voltage against earth
  • Perform cable simulation with the PP state rotary switch to simulate current capabilities of charging cables
  • Perform vehicle simulation testing various charging states
  • Simulate PE error (earth fault)
  • Test in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722
  • Test ground fault checks, insulin of wires, measure voltage and duty cycle
  • The adapter imitates an electric vehicle when connected to a charging station for performance and maintenance testing

What's In The Box?

  • Fluke 1674FC Multifunction Tester
  • Heavy duty mains cord with single input connector
  • Hard case
  • USB-C power adapter for charging
  • Remote control probe
  • Hanging strap
  • Zero adapter
  • Test leads and probes
  • Alligator clips
  • Li-Ion battery
  • FEV300/BASIC Test Adapter
  • FEV300-CON-TY2 Type 2 Plug
  • Carrying Case
Specification

Fluke 1674FC Multifunction Tester Specifications

  • Size: 26.25cm x 14.19cm x 11.93cm (10.3 x 5.6 x 4.7in)
  • Weight (including batteries)1.6KG (3.5lb)
  • Battery size, quantity: B290, Li-ion, 10.8V, 2500 mAH, 27 Wh
  • Ingress Protection: IEC 60529; IP40
  • Safety: Complies with IEC/EN 61010-1, IEC 61010-2-030, IEC 61010-2-034
  • Safety rating: CAT III 600 V, CAT IV 300 V
  • Performance: IEC 61557-1 to IEC/EN 61557-8 and IEC 61557-10

Voltage measurement AC, DC and Frequency

  • Range: 600V
    Resolution: 0.1V
    Input Impedance: 320 kΩ
    Overload Protection: 660V
  • Range: 45-66Hz
    Resolution: 0.1Hz
    Input Impedance: 320 kΩ

Continuity testing (RLO)

  • Range (Auto ranging): 20Ω/200Ω/2000Ω
    Resolution: 0.01 Ω/0.1 Ω/1 Ω
    Open Circuit Voltage: >4V

Insulation Resistance measurement (Riso)

  • Test Voltages: 50-100-250-500-1000V
  • 50V:
    Insulation Resistance Range: 10 kΩ to 50 MΩ
    Resolution: 0.01 MΩ
    Test Current: 1 mA @ 50 kΩ
  • 100V:
    Insulation Resistance Range: 10 kΩ to 20 MΩ
    Resolution: 0.01 MΩ
    Test Current: 1 mA @ 100 kΩ
  • 100V:
    Insulation Resistance Range: 20 kΩ to 100 MΩ
    Resolution: 0.1 MΩ
    Test Current: 1 mA @ 100 kΩ
  • 250V:
    Insulation Resistance Range: 10 kΩ to 20 MΩ
    Resolution: 0.01 MΩ
    Test Current: 1 mA @ 250 kΩ
  • 250V:
    Insulation Resistance Range: 20 kΩ to 200 MΩ
    Resolution: 0.1 MΩ
    Test Current: 1 mA @ 250 kΩ
  • 500V:
    Insulation Resistance Range: 10 kΩ to 20 MΩ
    Resolution: 0.01 MΩ
    Test Current: 1 mA @ 500 kΩ
  • 500V:
    Insulation Resistance Range: 20 kΩ to 200 MΩ
    Resolution: 0.1 MΩ
    Test Current: 1 mA @ 500 kΩ
  • 500V:
    Insulation Resistance Range: 200 kΩ to 500 MΩ
    Resolution: 1 MΩ
    Test Current: 1 mA @ 500 kΩ
  • 1000V:
    Insulation Resistance Range: 100 kΩ to 200 MΩ
    Resolution: 0.1 MΩ
    Test Current: 1 mA @ 1MΩ
  • 1000V:
    Insulation Resistance Range: 200 kΩ to 1000 MΩ
    Resolution: 1 MΩ
    Test Current: 1 mA @ 1MΩ

Insulation pretest

  • Insulation Safety pretest: Connections from the tester to L, N and PE are required

Surge Protection Device (SPD) Insulation RAMP Test (Varistor Test) IEC 61643-11

  • Test Voltage: 500V:
    Voltage ranges: Step Ramp 0V to 500V
    Resolution: 1V
    Test Current: 1mA
    Accuracy: ± (1.5 % + 3 digits)
  • Test Voltage: 1000V:
    Voltage ranges: Step Ramp 0V to 1000V
    Resolution: 1V
    Test Current: 1mA
    Accuracy: ± (1.5 % + 3 digits)

Insulation Monitoring Devices (IMD) IEC 61557-8

  • Range: 1 kΩ to 10 kΩ
    Resolution: 1 kΩ
  • Range: 10 kΩ to 100 kΩ
    Resolution: 10 kΩ
  • Range: 100 kΩ to 3 mΩ
    Resolution: 100 kΩ
  • Please note: > 1 MΩ only available with voltages >100 V

Loop and line impedance (ZI No Trip and Hi Current)

  • Range setting: 10 Ω
    Resolution: 0.001 Ω
    Accuracy: Hi Current mΩ mode: ± (2 % + 35 digits)/No Trip (2&3 wire) mode: ± (3 % + 6 digits)
  • Range setting: 20 Ω
    Resolution: 0.01 Ω
    Accuracy: Hi Current mode: ± (2 % + 4 digits)
  • Range setting: 200 Ω
    Resolution: 0.1 Ω
    Accuracy: No Trip mode: ± (3%)/Hi Current mode: ± (2%)
  • Range setting: 2000 Ω
    Resolution: 1 Ω
    Accuracy: ± 6%

Prospective Earth Fault Current (PEFC) Prospective Short Circuit Current (PSC)

  • Range: 0.0-99.9%
    Resolution: 0.1%
    Accuracy: Consider accuracy of line impedance measurement(s)
  • Note: Voltage drop reading is calculated from line impedance measurement and entered current rating

RCD tests, RCD types tested

  • AC (General, no delay)
  • AC (Time delay)
  • A, F (General, no delay)
  • A, F (Time delay)
  • B, B+ (General, no delay)
  • B, B+ (Time delay)
  • RDC-DD,RCD,A/EV,RCD,B/Mi
  • GFCI

RCD tripping time test (ΔT)

  • x1⁄2, 1:
    10mA
    30mA
    100mA
    300mA
    500mA
    1000mA
    Var
  • x5:
    10mA
    30mA
    100mA
  • Ramp:
    10mA
    30mA
    100mA
    300mA
    500mA
    1000mA
    Var
  • Auto:
    10mA
    30mA
    100mA
  • Mains voltages 50V - 265V ac, 45/66Hz
  • 100mA, 300mA and 500mA: Type B RCDs require main voltage range of 195V to 265V
  • 1000mA: Type AC RCDs only
  • Var: Type A RCDs are limited to 700mA, not available for type B RCDs

RCD Tripping Current (IΔN) Measurement/Ramp Test

  • Current range: 30% of 110% of RCD rated current (1)
    Step size: 10 % of IΔN (2)
    Dwell time Type G: 300 MS/Step
    Dwell time Type S: 500 M/S Step
    Measurement accuracy ±5%
  • (1): Specified trip current ranges (IEC 61008-1):
    30 % to 150 % for Type A IΔ N > 10 mA
    30 % to 210 % for Type A IΔ N = 10 mA
    20%to210%forTypeB
    50 % to 100 % for Type AC
    35%to140%forTypeA(>10mA)
    35 % to 200 % for Type A (≤ 10 mA)
    50 % to 200 % for Type B
  • (2): 5% for Type B

Earth resistance (RE)

  • Range: 200 Ω/2000 Ω
    Resolution: 0.1 Ω/1 Ω
    Frequency:128Hz
    Output Voltage: 25V

Phase sequence indication

  • Icon: Phase Sequence indicator is active
    Range: 185V to 600V
    Display: "1-2-3: or "3-2-1" for incorrect phase

FEV300/BASIC Test Adapter Specifications

  • Input Voltage: Up to 250 V (single phase system) / up to 480 V (three phase system), 50/60 Hz, max 10 A
  • Internal Power Consumption: 3W Max
  • FEV300-CON-TY2 Plug: AC charging mode 3, suitable to IEC 62196-2 type 2 socket outlet or fixed cable with vehicle connector (type 2, 7P three-phase)
  • FEV300-CON-TY1 Plug: AC charging mode 3, suitable to IEC 62196-2 type 1 or SAE J1772 with vehicle connector (type 1, 5P single-phase)
  • Dimensions (H x W x D): 110 x 45 x 220mm length without connection cable and test cable
  • Weight: Approx 1KG
  • Safety Standards:
    IEC/EN 61010-1, pollution degree 2
    IEC/EN 61010-2-030, CAT II 300 V, protection class II
  • Ingress Protection:
    IEC 60529: IP54 (housing)
    IEC 60529: IP54 (sockets with protection caps in place, connectors in connected condition or with protection caps in place, otherwise IP20)
  • Operating Temperature: -20°C to 40°C
  • Storage Temperature: -20°C to 50°C
  • Operating humidity range: 10% to 85% relative humidity non-condensing
  • Storage relative humidity: 0% to 85% non-condensing
  • Operating altitude: 2000m max

Functions

  • PE Pre-Test: Visible indication >50V AC/DC between PE conductor and touch sensor
  • PP Simulation: Open, 13A, 20A, 32A, 63A
  • CP States: Stae A, B, C, D
  • CP Error state "E": On/off (CP signal short-circuited to PE)
  • PE Error state "F" (Earth Fault) On/off (interruption of PE conductor)

Outputs (for test purpose only)

  • Measuring terminals L1, L2, L3, N, PE: Max 250/480 V max, 10A
  • CP signal output terminalas: Approx +/-12 V
  • Caution: In case of wrong wiring or error of the changing station these terminals may be hazardous
Label Type Size Download
pdf Fluke 167X Multifunction Tester Datasheets pdf 3.3 MB Download

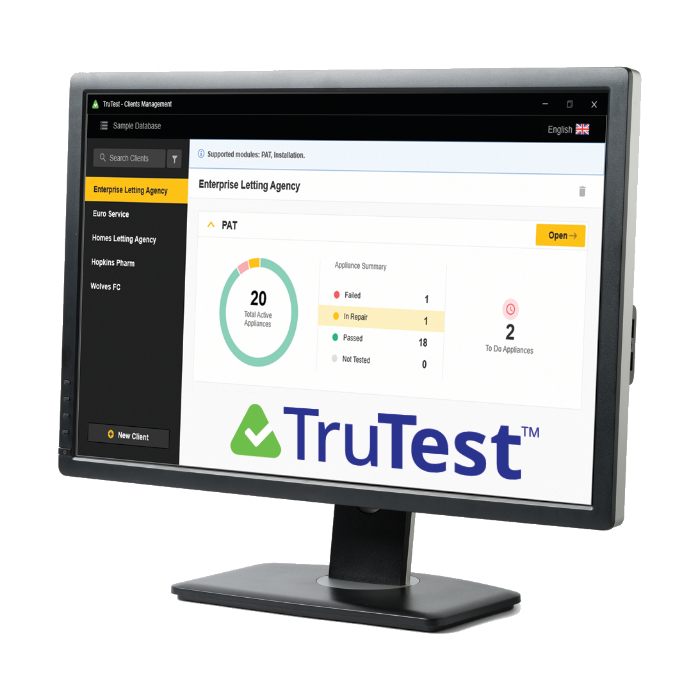

  1. Fluke TruTest
    Fluke TruTest Advanced Software - 1x Licence SKU: FLUKETRUTESTADV
    £295.00 (ex VAT)
    £354.00 (inc VAT)
  2. T110 Voltage/Continuity Tester
    Fluke T110 Voltage/Continuity Tester SKU: FLUKET110
    £67.00 (ex VAT)
    £80.40 (inc VAT)
  3. Fluke T150 Voltage Continuity Tester
    Fluke T150 Voltage/Continuity Tester SKU: FLUKT150
    £118.00 (ex VAT)
    £141.60 (inc VAT)
  4. Fluke T130 Voltage/Continuity Tester
    Fluke T130 Voltage/Continuity Tester SKU: FLUKET130
    £102.00 (ex VAT)
    £122.40 (inc VAT)
  5. Fluke T6-600 Electrical Tester
    Fluke T6-600 Electrical Tester SKU: FLUKET6600
    £163.00 (ex VAT)
    £195.60 (inc VAT)
  6. Fluke PRV240 Proving Unit
    Fluke PRV240 Proving Unit SKU: FLUKEPRV240
    £160.00 (ex VAT)
    £192.00 (inc VAT)
  7. Fluke Zero Adapter for 165XB
    Fluke Zero Adapter for 165XB SKU: FLUKEZEROADAPTER
    £46.00 (ex VAT)
    £55.20 (inc VAT)

Please see our terms and conditions for full details of TM Care & Protect.

Everything you’re likely to require for the next 3 or 5 years:

✅ Annual calibrations included
No further calibration costs for either 3 or 5 years

✅ Free collection and return for annual calibration
No hidden postage costs when it’s time for calibration

✅ ‘Zero-Downtime’ for the life of your care plan
Free loan equipment should your purchase ever need sending away for repair

✅ Anti-theft protection
Each care plan includes a SmartTrace Forensic Marking kit that acts as a deterrent for your test equipment and other tools

✅ Instrument cleaning kit
Cleaning kit included with each TM Care & Protect plan

Our hope is that TM Care & Protect will bolster our commitment to support you throughout your journey with us, providing you peace of mind from the hassles of annual servicing, potential tool theft and loss of earnings.

Ensures complete reliability, minimised downtime and peace of mind. TM Care & Protect packages include:

✅ Annual Calibration
No further calibration costs for up to 5 years.

✅ Zero Unplanned Downtime
In case of any unforeseen repairs, we provide FREE loan instruments so you can continue working.

✅ Theft Deterrent Kit
Each care plan includes a SmartTrace forensic marking kit: The UK's most powerful theft deterrent. Use on your test equipment, van and tools.

✅ No Shipping Cost
Includes collection and return deliveries when it's time for calibration.

✅ Instrument Cleaning Kit
Avoid preventable issues by keeping your test equipment clean.

Our hope is that TM Care & Protect will bolster our commitment to support you throughout your journey with us, providing you peace of mind from the hassles of annual servicing, potential tool theft and loss of earnings.

Please see our terms and conditions for full details of TM Care & Protect.
