Fluke 1732 Three-Phase Electrical Energy Logger

Fluke
SKU: FLUKE1732-CONF
  • Profile energy use across your facility
  • Identify opportunities for savings and efficiency improvements
  • Complete load studies, energy assessments, energy surveys, power and energy logging
More Info

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 1732 Three-Phase Electrical Energy Logger

The Fluke 1732 Three-Phase Electrical Energy Logger allows you to log voltage, current, power, power factor and energy values automatically, capturing and storing up to 20 separate logging sessions on the device. As a portable energy logger, this model is designed to help you identify sources of inefficiency and energy waste, therefore enabling you to reduce unnecessary costs. Suitable for installation anywhere from service entrances to individual circuits, the 1732 will enable you to build a detailed profile for energy use and distribution.

The Fluke 1732 is capable of performing three phase testing with more than 20 separate measurements stored on the internal memory. All measured values are stored ensuring measurement trends are never lost. Test values can be viewed during logging sessions before being downloaded providing real time analysis.

The fluke 1732 is capable of measuring voltage up to 1000V with a resolution as low as 0.1V. Using the included probes, operators are able to measure up to 1500A and log active power, reactive power and power factor.

The 1732 has a variety of potential applications, all of which enable you to make better decisions regarding your energy use and operational conditions of powered equipment. Examples include:

  • Load studies: Discover the energy consumption of individual pieces of equipment operating at minimum and maximum capacity
  • Energy assessments: Quantify energy consumption before and after improvements
  • Energy surveys: Create a detailed log for every electrical system in a facility from the main service feeders to larger loads. Measuring at different points will allow for a full picture of the energy usage across facilities to be developed.
  • Power and energy logging: The Fluke 1732 is able to measure and characterise the peak demand and power factors for facilities for analysis of the results in order to save money.
  • Simplified load studies: When voltage connection is difficult or impractical the simple loud study feature of the Fluke 1732 allows operators to perform a simplified load study by measuring the current only. Entering nominal expected voltage to create a simulated power study.

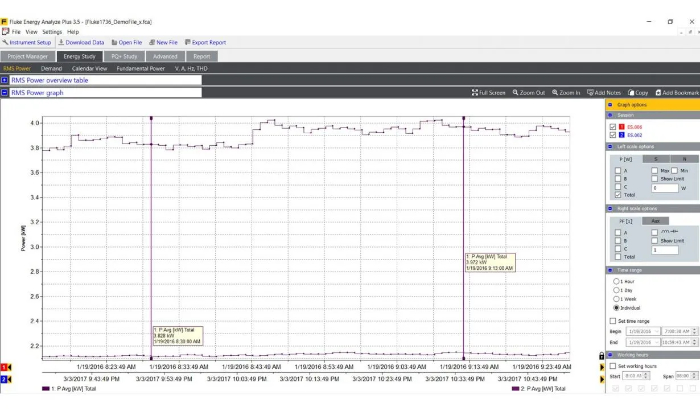

The optimised user interface makes using this instrument simple and straightforward, with a guided graphical setup and full colour display. Safety has also been considered in the design of this unit, with a 600 V Cat IV/1000 V CAT III rating, the highest safety rating possible in the industry. Included as standards, the Fluke Energy Analyse Plus software package enables data to be exported to your desktop PC for further analysis. This powerful software package provides every tool required to create informative reports to be shared with others and providing you with the insight required for superior decision making.  The 1732 user interface allows for the right data to be captured every time thanks to the quick, guided, graphical setup reducing the uncertainty of connections using the intelligent verification function.

The 1732 is available in 3 variations: B, EUS and INTL. Below, we have included a comparison chart outlining each variation and contents in detail. As a primary point of difference, it’s worth noting that model B excludes current probes, while both the EUS and INTL models include current probes as standard.

  Fluke 1732/B Fluke 1732/EUS Fluke 1732/INTL
Model Energy logger basic version Energy logger (EU and US) Energy logger (international)
Recording
Trend ✔ ✔ ✔
Communication
USB (mini B) ✔ ✔ ✔
WiFi download of instrument data ✔ ✔ Optional
Included Accessories
USB Flash Drive (4GB) ✔ ✔ ✔
USB Cable ✔ ✔ ✔
3PHVL-173 Flat Cable ✔ ✔ ✔
1x red, 1x black 0.1m cable ✔ ✔ ✔
1x red, 1x black 1.5m cable ✔ ✔ ✔
Alligator clips 4 4 4
C173x Soft Case ✔ ✔ ✔
Colour Coding Set ✔ ✔ ✔
i173x-Flex1500 12" Current Clamps Not included 3 Included 3 Included
Line cord EU, UK, US, AU, BR EU, US, UK EU, UK, US, AU, BR
Compatible Optional Accessories
173X-AUX analog adapter ✔ ✔ ✔
i17XX-flex1500 12" current probe ✔ ✔ ✔
i17XX-flex3000 24" current probe ✔ ✔ ✔
i17XX-flex6000 36" current probe ✔ ✔ ✔
i40s-EL current clamp ✔ ✔ ✔

Fluke 1730 series comparison table

  Fluke 1732 Fluke 1734 Fluke 1736 Fluke 1738
Three phase Energy Logger ✔ ✔
Three phase power logger     ✔ ✔
Measure V, I, kW, Cos/DPF, kWhr ✔ ✔ ✔ ✔
Measure MIN/MAX and AVG values ✔ ✔ ✔ ✔
10 day logging ✔ ✔ ✔ ✔
THD measurement (V and I) ✔ ✔ ✔ ✔
Harmonics 1 to 25 for V and I     ✔ ✔
Energy assessments     ✔ ✔
Neutral Current Measurement (four current channels)     ✔ ✔
Voltage event capture     ✔ ✔
Waveform and inrush capture     Upgrade available ✔
Fluke Connect® Upgrade available ✔ Upgrade available ✔
Wi-Fi Optional ✔ ✔ ✔
Wi-fi/Bluetooth Optional ✔ Optional ✔
Magnetic probe set Optional ✔ Optional ✔
Magnetic hanger Optional ✔ Optional ✔
Connection via Wi-Fi router Requires FREE software license available upon product registration. Requires FREE software license available upon product registration. Requires FREE software license available upon product registration. Requires FREE software license available upon product registration.

Key Features

  • Logs voltage, current, power, power factor, energy and associated values
  • Bright, colour touch screen - full colour display with clear and easy to read text
  • Simple in-field setup, no need to return to workshop or PC terminal
  • Energy Analyse Plus software allows for detailed analysis of results
  • Intelligent verification function reduces uncertainty about device connections
  • More than 20 separate logging sessions stored at one time
  • All measured values automatically logged so you avoid losing measured trends
  • Powered directly from measured circuit, no need to plug into mains
  • Highest safety rating possible

What's In The Box?

  • Fluke 1732 Three-Phase Electrical Energy Logger
  • Power supply
  • Voltage test leads
  • Alligator clips (4x)
  • 12 in 1,500A flexible current probe (3x)
  • Soft case
  • Energy Analyse Plus Software
  • Line cords
  • Colour coding set
  • Documentation on USB flash drive
Specification
  • Voltage: range - 1000V, max res - 0.1V, ± (0.2 % + 0.01 %)
  • Frequency: range- 42.5Hz to 69Hz, max res - 0.01V, ± (0.1 %)
  • Aux input: range - ± 10V dc, max res - 0.1mV, ± (0.2 % + 0.02 %)
  • Voltage min/max: range - 1000V, max res - 0.1 V ± (1 % + 0.1 %)
  • THD on voltage: range - 1000%, max res - 0.1%, ± 0.5
  • THD on current: range - 1000%, max res - 0.1%, ± 0.5
  • Voltage range:100V to 500V using safety plug input when powering from the measurement circuit, 100V to 240V using standard power cord (IEC 60320 C7)
  • Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable
  • On-battery runtime: Four hours in standard operating mode, up to 5.5 hours in power saving mode
  • Color LCD display: 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel
  • Dimensions: Instrument - 19.8 cm x 16.7 cm x 5.5 cm (7.8 in x 6.6 in x 2.2 in), Power supply - 13.0 cm x 13.0 cm x 4.5 cm (5.1 in x 5.1 in x 1.8 in), Instrument with power supply attached - 19.8 cm x 16.7 cm x 9 cm (7.8 in x 6.6 in x 3.5 in)
  • Weight Instrument: 1.1 kg (2.5 lb) Power supply: 400 g (0.9 lb)
