Martindale HPAT550 Landlords PAT Testing Kit

SKU: MARTHPAT550LKIT
  • Purpose-built for landlords managing appliance safety across rental properties
  • Includes plug lockout and padlock for safer inspection and maintenance procedures
  • Complete record-keeping and labelling package to support organised compliance management
More Info
Typically ships in 3-5 working days

Martindale HPAT550 Landlords PAT Testing Kit

The Martindale HPAT550 Landlords PAT Testing Kit offers a comprehensive, practical and cost-effective solution for carrying out portable appliance testing within single properties or larger rental portfolios, helping landlords demonstrate a proactive approach to tenant safety and property maintenance.

At the heart of the kit is the easy-to-use Martindale HPAT550 PAT Tester, which simplifies routine testing at a touch of a button. It performs automatic Class I, Class II, and IEC lead test programmes, with clear PASS/FAIL indications to make testing straightforward, even for users with limited PAT testing experience. The bright colour display shows measured values alongside results, allowing appliances to be assessed quickly and confidently while reducing the risk of user error.

The HPAT550 carries out the key electrical safety tests commonly required during portable appliance inspections. Selectable 250V and 500V insulation resistance testing enables landlords to test a wide range of household appliances, including equipment that contains sensitive electronic components. Safe 200mA earth continuity testing verifies protective earth connections without exposing equipment to higher test currents. Together, these functions help support routine electrical safety checks on appliances supplied to tenants, including kettles, microwaves, lamps, extension leads and other portable equipment.

This landlord-focused kit includes accessories selected specifically for residential property testing, such as the IEC Cloverleaf Adaptor which allows compatible power leads and appliances to be tested correctly, and the Test-Meter PRO TMP989 Socket Tester which provides a quick method of checking socket wiring before testing begins. The kit also includes PL13 230V 13A Plug Lockout and Padlock which adds an extra layer of safety by preventing accidental energisation of equipment during maintenance or inspection activities.

Maintaining accurate records is essential when managing rental properties, which is why the kit includes a PAT Register Book and PAT Certificate Pad. These allow landlords to document inspections, record test results and provide evidence of completed testing when required. A generous supply of pass, wrap and fail labels ensures tested appliances can be clearly identified, making future inspections easier to manage and helping tenants recognise equipment that has been checked. Supplied in a durable Test-Meter kit bag, the entire kit can be transported easily between properties and stored securely when not in use.

Part number: HPAT550

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

x 2

PAT Register Book

PAT Certificate Pad

Test Meter PRO TMP989 230V 13A Socket Tester



IEC Cloverleaf Adaptor





IEC Adaptor Kit



500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

x2

x 2

x 2

200 Fail labels

250 Tuff Tag Cable Wrap Labels



16A 110V Appliance Adaptor and Extension Lead Adaptor



PL13 230V 13A Plug Lockout & Padlock





16A 230V Appliance Adaptor and Extension Lead Adaptor



32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



32A 230V Appliance Adaptor and Extension Lead Adaptor



16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



Key Features

  • Purpose-built for landlords managing appliance safety across rental properties
  • Includes plug lockout and padlock for safer inspection and maintenance procedures
  • Complete record-keeping and labelling package to support organised compliance management
  • Features a high-quality colour display
  • Clear and simple PASS/FAIL indication with measured values
  • Offers automatic testing Class I, Class II, and IEC power lead tests
  • Selectable 250V or 500V insulation test
  • 200mA earth bond test
  • Is USB-C rechargeable, with power save mode and fast charge support available

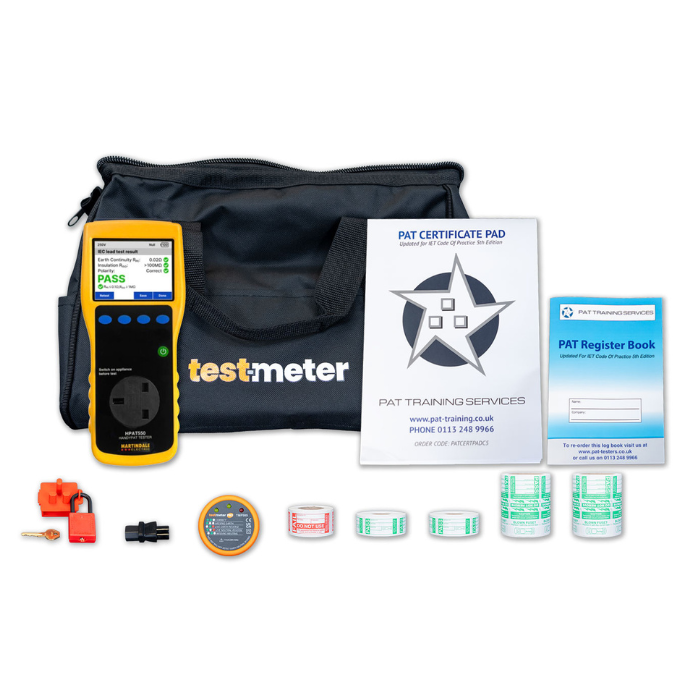

What's In The Box?

  • Martindale HPAT550 PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Earth Continuity

  • Test Voltage – 4V DC (into open circuit)
  • Test Current - >200mA DC (into short circuit)
  • Range - 0.01 - 20Ω
  • Resolution – 0.01 Ω
  • Accuracy - ± (5% of reading + 2 digits)
  • Fixed / Default Pass Limits – Fixed ≤0.1Ω, ≤0.5Ω selectable pass for long cable

Insulation

  • Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
  • Test Current - <2mA (into short circuit)
  • Range – 0.01MΩ - 100MΩ
  • Resolution –
    0.01MΩ (10kΩ - 2MΩ)
    0.1MΩ (2MΩ - 20MΩ)
    1MΩ (20MΩ - 100MΩ)
  • Accuracy – 5% reading + 2 digits
  • Pass Level -
    Lead: ≥1.0MΩ
    Class I: ≥1.0MΩ
    Class II: ≥2.0MΩ

Power

  • Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
  • Battery Life – Fully charged, minimum 1700 complete tests (approximately)
  • Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

  • Location – Suitable for indoor and outdoor used in dry weather conditions only
  • Altitude – Up to 2000m
  • Operating Temperature – 0°C to 40°C
  • Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
  • Ingress Protection Class – IP20
  • Pollution Degree – 2

General

  • Overload Protection – 300V AC/DC
  • Protection Class – IP20
  • Safety – Complies with BS EN 61010-1
