Martindale HPAT650 Landlords PAT Testing Kit

Martindale
SKU: MARTHPAT650LKIT
  • Complete PAT testing kit designed for landlords and rental properties
  • HPAT650 tester with memory storage, colour display and automatic testing functions
  • Includes labels, certification paperwork, socket tester and lockout equipment
More Info
Typically ships in 3-5 working days

Martindale HPAT650 Landlords PAT Testing Kit

The Martindale HPAT650 Landlords PAT Testing Kit provides everything needed to carry out portable appliance testing across residential rental properties. The kit helps landlords demonstrate that electrical appliances supplied within a property have been inspected and tested as part of a proactive electrical safety programme.

At the centre of the kit is the Martindale HPAT650 PAT Tester, a lightweight and easy-to-use instrument that combines one-button operation with advanced testing capabilities. Automatic Class I, Class II and IEC power lead testing simplifies the inspection process, while clear PASS/FAIL indications and measured values displayed on the colour screen help users make quick, confident decisions. Adjustable pass limits, selectable 250V and 500V insulation testing, and substitute leakage testing provide the flexibility required when testing a wide range of appliances, including sensitive electronic equipment and IT devices.

The HPAT650’s onboard memory can store up to 100 test results, making it easier to manage testing records between properties. Rechargeable battery operation with USB-C charging improves portability and reduces downtime, allowing users to work efficiently whether carrying out routine inspections on a single property or testing multiple rental units in succession. The supplied earth bond probe and IEC adaptor lead ensure the tester is ready for common appliance and power lead testing straight out of the case.

To support the administrative side of PAT testing, the kit includes a PAT Register Book and PAT Certificate Pad, allowing landlords to maintain organised records and provide documented evidence of completed inspections. A generous supply of pass, wrap and fail labels makes it easy to identify tested equipment and clearly communicate its status to tenants, contractors or maintenance staff.

Additional accessories have been selected to improve safety and efficiency during testing. The included Test Meter PRO TMP989 Socket Tester provides a quick way to verify socket wiring before appliances are tested, helping identify installation faults that could affect results. An IEC Cloverleaf Adaptor extends compatibility with appliances that use cloverleaf power connections, while the PL13 plug lockout and padlock help isolate equipment safely when faults are discovered. The kit is supplied in a durable Test-Meter kit bag for easy transportation from one property to the next.

Part number: HPAT650

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Lightweight and portable design for easy transportation and application
  • Features a high-quality colour display
  • Clear and simple PASS/FAIL indication with measured values
  • Offers automatic testing of Class I, Class II, and IEC power lead tests
  • Selectable 250V or 500V insulation test
  • 200mA earth bond test
  • Is USB-C rechargeable, with power save mode and fast charge support available
  • Onboard memory storage for up to 100 results. The user has a choice between single and sequenced test execution modes
  • Adjustable pass limits, as well as a substitute leakage test to simulate earth leakage current

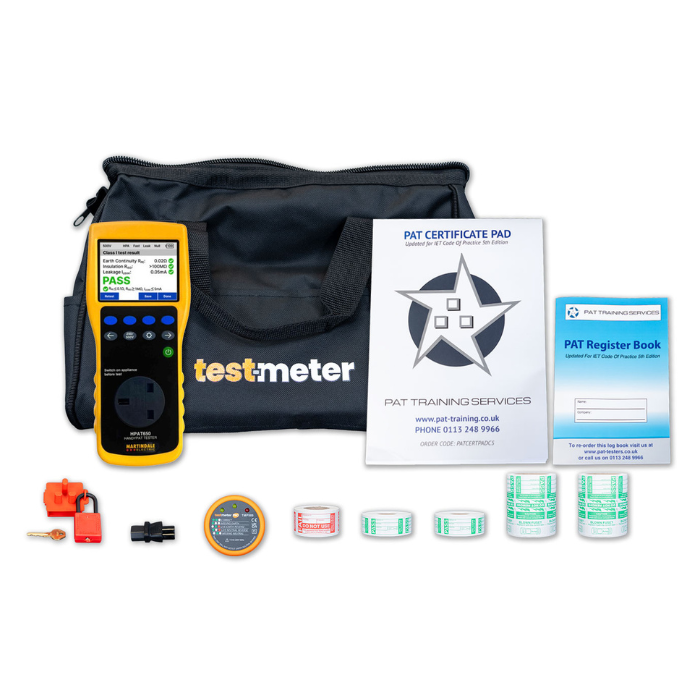

What's In The Box?

  • Martindale HPAT650 PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Earth Continuity

  • Test Voltage – 4V DC (into open circuit)
  • Test Current - >200mA DC (into short circuit)
  • Range - 0.01 - 20Ω
  • Resolution – 0.01 Ω
  • Accuracy - ± (5% of reading + 2 digits)
  • Fixed / Default Pass Limits – Default ≤0.1, user settable, ≤0.5Ω selectable pass for long cable
  • User Settable Limits - ≤0.1Ω to ≤0.9Ω in 0.1Ω steps

Insulation

  • Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
  • Test Current - <2mA (into short circuit)
  • Range – 0.01MΩ - 100MΩ
  • Resolution –
    0.01MΩ (10kΩ - 2MΩ)
    0.1MΩ (2MΩ - 20MΩ)
    1MΩ (20MΩ - 100MΩ)
  • Accuracy – 5% reading + 2 digits
  • Pass Level -
    Lead: ≥1.0MΩ
    Class I: ≥1.0MΩ
    Class II: ≥2.0MΩ
  • User Settable Pass Level - ≥0.3MΩ to ≥ 1MΩ in 0.1MΩ steps, ≥1MΩ to ≥ 10MΩ in 1MΩ steps

Substitute Leakage Test

  • Test Voltage - <50V AC (into open circuit), 0.02-20mA DC (into short circuit)
  • Accuracy - ± (5% reading + 2 digits)
  • Pass Level - ≤5mA

Memory

  • Test Records – 100 tests stored for on-screen recall

Power

  • Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
  • Battery Life – Fully charged, minimum 1700 complete tests (approximately)
  • Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

  • Location – Suitable for indoor and outdoor used in dry weather conditions only
  • Altitude – Up to 2000m
  • Operating Temperature – 0°C to 40°C
  • Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
  • Ingress Protection Class – IP20
  • Pollution Degree – 2

General

  • Overload Protection – 300V AC/DC
  • Protection Class – IP20
  • Safety – Complies with BS EN 61010-1
