Martindale HPAT650 Maintenance PAT Testing Kit

Martindale
SKU: MARTHPAT650MKIT
  • Complete maintenance PAT testing kit for commercial and industrial environments
  • HPAT650 tester with memory storage, automatic testing and USB-C rechargeable operation
  • Includes industrial adaptors, cable wrap labels and lockout equipment for wider testing capability
More Info
Typically ships in 3-5 working days

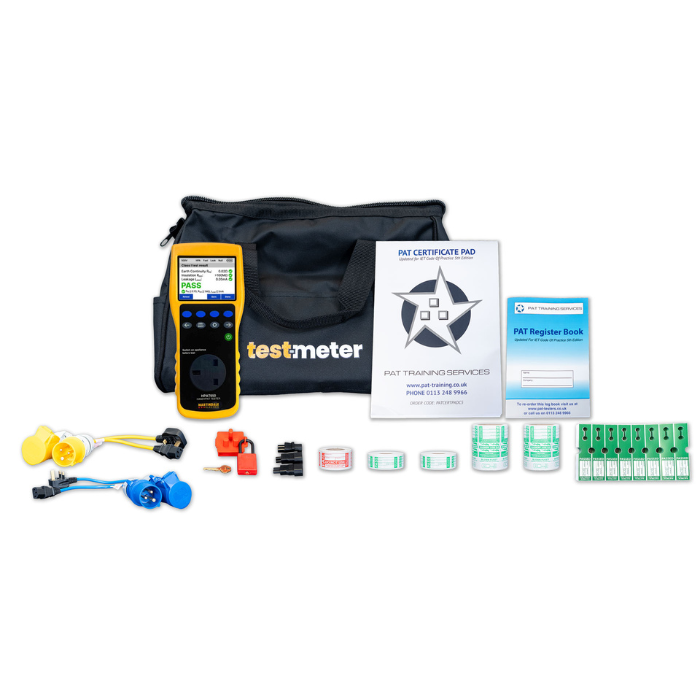

Martindale HPAT650 Maintenance PAT Testing Kit

The Martindale HPAT650 Maintenance PAT Testing Kit combines the portable and easy-to-use HPAT650 PAT Tester with a comprehensive range of maintenance accessories designed to allow users to test and document a wide variety of portable appliances, power leads and equipment commonly found in workshops, factories, offices and maintenance departments.

Using the HPAT650 requires minimal training, enabling users to carry out automatic Class I, Class II and power lead testing to speed up routine inspections. The tester features a high-quality colour display that provides clear measured values alongside simple PASS/FAIL indications. Selectable 250V and 500V insulation resistance testing allows safe testing of both standard electrical equipment and more sensitive electronic devices, while adjustable pass limits and substitute leakage testing offer greater flexibility when working across different appliance types.

Designed for busy maintenance schedules, the HPAT650 stores up to 100 test results in its onboard memory and offers both single and sequenced test modes to improve efficiency. Rechargeable battery operation with USB-C charging reduces downtime and makes the tester easy to carry between sites. An IT-safe 200mA earth continuity (earth bond) test further enhances its suitability for modern maintenance applications, particularly when working with sensitive equipment.

The included maintenance accessory package significantly expands the range of equipment that can be tested. The IEC adaptor kit, for example, allows connection to a wide variety of appliance types and power configurations, including commonly used 110V and 230V equipment. This makes the kit particularly valuable for users working across construction sites, manufacturing facilities, and commercial premises where different plug and socket standards are encountered.

The kit also includes a PAT Register Book and PAT Certificate Pad to support compliance and record keeping, along with a comprehensive selection of pass, fail and cable wrap labels. Durable cable wrap labels are especially useful for identifying extension leads and frequently used equipment in demanding environments. A plug lockout device and padlock help isolate faulty appliances safely, reducing the risk of accidental use until repairs can be completed. Supplied in a practical kit bag, the Martindale HPAT650 Maintenance PAT Testing Kit provides a complete solution for professional portable appliance testing and ongoing electrical safety management.

Part number: HPAT650

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Lightweight and portable design for easy transportation and application
  • Features a high-quality colour display
  • Clear and simple PASS/FAIL indication with measured values
  • Offers automatic testing of Class I, Class II, and IEC power lead tests
  • Selectable 250V or 500V insulation test
  • 200mA earth bond test
  • Is USB-C rechargeable, with power save mode and fast charge support available
  • Onboard memory storage for up to 100 results. The user has a choice between single and sequenced test execution modes
  • Adjustable pass limits, as well as a substitute leakage test to simulate earth leakage current

What's In The Box?

  • Martindale HPAT650 PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • 250 Tuff Tag Cable Wrap Labels
  • 16A 110V Appliance Adaptor and Extension Lead Adaptor
  • PL13 230V 13A Plug Lockout & Padlock
  • 16A 230V Appliance Adaptor and Extension Lead Adaptor
Specification

Earth Continuity

  • Test Voltage – 4V DC (into open circuit)
  • Test Current - >200mA DC (into short circuit)
  • Range - 0.01 - 20Ω
  • Resolution – 0.01 Ω
  • Accuracy - ± (5% of reading + 2 digits)
  • Fixed / Default Pass Limits – Default ≤0.1, user settable, ≤0.5Ω selectable pass for long cable
  • User Settable Limits - ≤0.1Ω to ≤0.9Ω in 0.1Ω steps

Insulation

  • Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
  • Test Current - <2mA (into short circuit)
  • Range – 0.01MΩ - 100MΩ
  • Resolution –
    0.01MΩ (10kΩ - 2MΩ)
    0.1MΩ (2MΩ - 20MΩ)
    1MΩ (20MΩ - 100MΩ)
  • Accuracy – 5% reading + 2 digits
  • Pass Level -
    Lead: ≥1.0MΩ
    Class I: ≥1.0MΩ
    Class II: ≥2.0MΩ
  • User Settable Pass Level - ≥0.3MΩ to ≥ 1MΩ in 0.1MΩ steps, ≥1MΩ to ≥ 10MΩ in 1MΩ steps

Substitute Leakage Test

  • Test Voltage - <50V AC (into open circuit), 0.02-20mA DC (into short circuit)
  • Accuracy - ± (5% reading + 2 digits)
  • Pass Level - ≤5mA

Memory

  • Test Records – 100 tests stored for on-screen recall

Power

  • Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
  • Battery Life – Fully charged, minimum 1700 complete tests (approximately)
  • Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

  • Location – Suitable for indoor and outdoor used in dry weather conditions only
  • Altitude – Up to 2000m
  • Operating Temperature – 0°C to 40°C
  • Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
  • Ingress Protection Class – IP20
  • Pollution Degree – 2

General

  • Overload Protection – 300V AC/DC
  • Protection Class – IP20
  • Safety – Complies with BS EN 61010-1
