Martindale HPAT650 Small Business PAT Testing Kit

Martindale
SKU: MARTHPAT650SBKIT
  • Stores up to 100 PAT test results for easier record management
  • Sequenced testing mode speeds up testing of multiple appliances
  • Substitute leakage testing makes it suitable for a wider range of business equipment
More Info
Typically ships in 3-5 working days

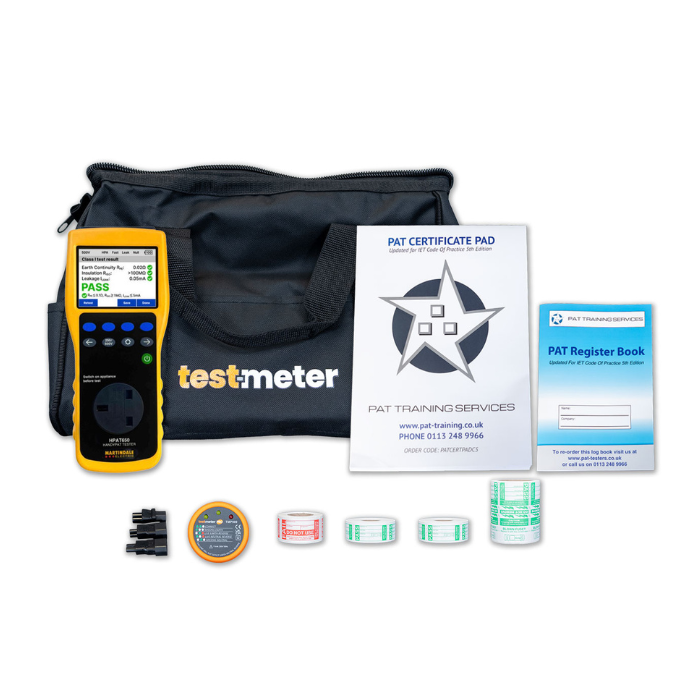

Martindale HPAT650 Small Business PAT Testing Kit

The Martindale HPAT650 Small Business PAT Testing Kit is designed for businesses that need a reliable and efficient way to manage portable appliance testing in-house. Included in the kit is the advanced HPAT650 PAT Tester, along with accessories needed to test, record and label equipment as part of a structured electrical safety programme.

The HPAT650 PAT tester offers simple one-button operation while providing more advanced functionality than basic entry-level testers. Automatic Class I, Class II and IEC power lead test sequences help users carry out consistent inspections, and the clear colour display presents measured values alongside an easy-to-understand PASS/FAIL result. This makes the tester suitable for routine workplace testing, whether carried out by maintenance staff, facilities teams or responsible persons within the business.

A key advantage for small businesses is the HPAT650's onboard memory for up to 100 test results, which helps users keep track of completed inspections before transferring records to their own documentation system. The choice of single or sequenced test execution allows faster testing of multiple appliances, making it easier to manage larger equipment inventories without unnecessary delays.

The tester performs the core electrical safety checks required during PAT testing, including 250V and 500V insulation resistance testing and an IT-safe 200mA earth continuity test. Adjustable pass limits provide greater flexibility for different appliance types, while the substitute leakage test enables testing of equipment where conventional insulation testing may not be appropriate. These features make the HPAT650 particularly useful for businesses with a mix of office electronics, IT equipment, kitchen appliances and general portable electrical equipment.

Accessories in the small business kit are selected to support efficient day-to-day testing. The IEC Adaptor Kit allows common power leads and IT equipment to be tested correctly, while the Test-Meter PRO TMP989 Socket Tester provides a quick check of socket wiring before testing begins. The PAT Register Book and PAT Certificate Pad help businesses maintain clear inspection records and demonstrate compliance with workplace electrical safety procedures. A generous supply of pass, wrap and fail labels ensures tested equipment can be clearly identified and managed throughout the inspection cycle. Everything is supplied in a durable Test-Meter kit bag, making it easy to transport the tester and accessories between sites or store them securely when not in use.

Part number: HPAT650

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Lightweight and portable design for easy transportation and application
  • Features a high-quality colour display
  • Clear and simple PASS/FAIL indication with measured values
  • Offers automatic testing of Class I, Class II, and IEC power lead tests
  • Selectable 250V or 500V insulation test
  • 200mA earth bond test
  • Is USB-C rechargeable, with power save mode and fast charge support available
  • Onboard memory storage for up to 100 results. The user has a choice between single and sequenced test execution modes
  • Adjustable pass limits, as well as a substitute leakage test to simulate earth leakage current

What's In The Box?

  • Martindale HPAT650 PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Earth Continuity

  • Test Voltage – 4V DC (into open circuit)
  • Test Current - >200mA DC (into short circuit)
  • Range - 0.01 - 20Ω
  • Resolution – 0.01 Ω
  • Accuracy - ± (5% of reading + 2 digits)
  • Fixed / Default Pass Limits – Default ≤0.1, user settable, ≤0.5Ω selectable pass for long cable
  • User Settable Limits - ≤0.1Ω to ≤0.9Ω in 0.1Ω steps

Insulation

  • Test Voltage / User Selectable Voltage – User selectable >250V DC at 1mA / >500V DC at 1mA (<312.5V DC open circuit / <625V DC open circuit)
  • Test Current - <2mA (into short circuit)
  • Range – 0.01MΩ - 100MΩ
  • Resolution –
    0.01MΩ (10kΩ - 2MΩ)
    0.1MΩ (2MΩ - 20MΩ)
    1MΩ (20MΩ - 100MΩ)
  • Accuracy – 5% reading + 2 digits
  • Pass Level -
    Lead: ≥1.0MΩ
    Class I: ≥1.0MΩ
    Class II: ≥2.0MΩ
  • User Settable Pass Level - ≥0.3MΩ to ≥ 1MΩ in 0.1MΩ steps, ≥1MΩ to ≥ 10MΩ in 1MΩ steps

Substitute Leakage Test

  • Test Voltage - <50V AC (into open circuit), 0.02-20mA DC (into short circuit)
  • Accuracy - ± (5% reading + 2 digits)
  • Pass Level - ≤5mA

Memory

  • Test Records – 100 tests stored for on-screen recall

Power

  • Batteries – 3.7V 5000mAh lithium polymer battery (non-user replaceable)
  • Battery Life – Fully charged, minimum 1700 complete tests (approximately)
  • Auto Power Down – Auto dimming after 3 minutes, Auto power down after 5 minutes of inactivity

Environmental

  • Location – Suitable for indoor and outdoor used in dry weather conditions only
  • Altitude – Up to 2000m
  • Operating Temperature – 0°C to 40°C
  • Humidity - ≤80% RH up to 31°C, decreasing linearly to 50°C RH at 40°C
  • Ingress Protection Class – IP20
  • Pollution Degree – 2

General

  • Overload Protection – 300V AC/DC
  • Protection Class – IP20
  • Safety – Complies with BS EN 61010-1
