Megger PAT120 Landlords PAT Testing Kit

Megger
SKU: MEGGPAT120LKIT
  • Tailored for landlords & property managers responsible for electrical appliance safety
  • Includes a plug lockout and padlock to support safe isolation of faulty equipment
  • Supplied with an IEC cloverleaf adaptor for testing a wider range of appliances
More Info
Typically ships in 3-5 working days

Megger PAT120 Landlords PAT Testing Kit

The Megger PAT120 Landlords PAT Testing Kit is designed to simply routine PAT testing and maintenance of portable appliance within rented accommodation. The kit comes with the dependable PAT120 PAT tester along with equipment and documentation needed to inspect appliances quickly, maintain accurate records and demonstrate a proactive approach to tenant safety.

The Megger PAT120 is suitable for testing Class I and Class II appliances, as well as extension and power leads commonly found in residential properties. Automatic test sequences help streamline inspections, allowing users to complete testing efficiently across multiple properties. Fixed PASS/FAIL indications make results easy to understand, while earth continuity, insulation resistance and substitute leakage testing ensure the key requirements of portable appliance testing are covered. The inclusion of both 250V and 500V insulation testing allows safe testing of standard appliances and surge-protected extension leads without risking damage to sensitive components.

Built to withstand regular transport between sites, the PAT120 features a robust rubber-armoured housing and toughened Gorilla glass display protection. Its battery-powered design removes the need for a nearby power source, making it particularly useful when carrying out inspections in vacant properties, communal areas or locations alike.

The accessories included in this landlord-focused kit help support both testing efficiency and compliance record keeping. A PAT register book and certificate pad provide a simple way to document inspections and maintain a clear audit trail. The Test Meter PRO socket tester enables rapid verification of socket wiring before appliance testing begins, helping identify potential installation issues. An IEC cloverleaf adaptor expands testing capability for appliances fitted with cloverleaf power connections, while the generous supply of pass, wrap-around and fail labels allows equipment to be clearly identified following inspection.

To enhance safety during maintenance and inspection work, the kit also includes a PL13 230V 13A plug lockout and padlock. This useful addition helps prevent accidental reconnection of equipment while faults are being investigated or repairs are pending. Moreover, the kit is supplied in a durable carry bag for easy transport between properties.

Part number: PAT120

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Simple pass fail indication & measurement
  • Rugged and hard wearing design
  • Battery powered and portable
  • Automatic test sequences for Class I, Class II and Extension/Power leads
  • Includes 250V Insulation testing for surge protected extension leads.
  • Protective outer casing with front cover and toughened glass

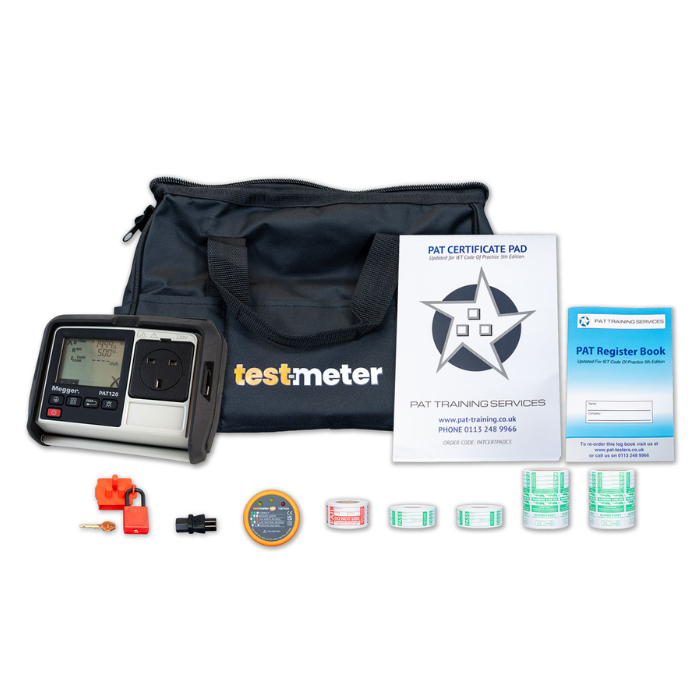

What's In The Box?

  • Megger PAT120 Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT120 Only): 1150g
  • Weight (Shipping): 2370g
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-062
