Megger PAT120 Small Business PAT Testing Kit

Megger
SKU: MEGGPAT120SBKIT
  • Ideal for businesses looking for a straightforward, cost-effective PAT testing package
  • Automatic test sequences to reduce testing time and simplify routine inspections
  • Rugged rubber-armoured construction with Gorilla glass protection
More Info
Typically ships in 3-5 working days

Megger PAT120 Small Business PAT Testing Kit

The Megger PAT120 Small Business PAT Testing Kit provides everything needed to carry out straightforward, professional PAT testing small business environments. Built around the reliable Megger PAT120 tester, this kit is designed for users who need a practical solution for maintaining electrical safety compliance without the complexity of advanced testing equipment.

Suitable for testing Class I and Class II appliances as well as extension and power leads, the PAT120 performs the essential tests required for routine portable appliance testing. Automatic test sequences help speed up inspections, while clear PASS/FAIL indications reduce the likelihood of user error and make results easy to interpret. Earth continuity, insulation resistance testing at both 250V and 500V, and substitute leakage testing ensure the tester covers the core requirements for regular workplace electrical safety programmes. The inclusion of a 250V insulation test is particularly useful when working with surge-protected extension leads, helping prevent unnecessary damage during testing.

The PAT120 features a rugged protective outer casing with toughened Gorilla glass and shock-resistant rubber armour, making it durable. Battery-powered operation allows testing to be carried out in locations where mains power is unavailable, offering flexibility when working across multiple sites.

This kit includes a comprehensive range of accessories to support efficient testing and record keeping. The IEC adaptor kit expands testing capability for equipment fitted with IEC connections, while the Test Meter PRO socket tester enables quick verification of socket wiring before appliance testing begins. A PAT register book and certificate pad help maintain accurate records and demonstrate compliance with workplace safety procedures. Large quantities of pass, wrap-around and fail labels are included to ensure tested equipment can be clearly identified and documented immediately after inspection.

Part number: PAT120

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Simple pass fail indication & measurement
  • Rugged and hard wearing design
  • Battery powered and portable
  • Automatic test sequences for Class I, Class II and Extension/Power leads
  • Includes 250V Insulation testing for surge protected extension leads.
  • Protective outer casing with front cover and toughened glass

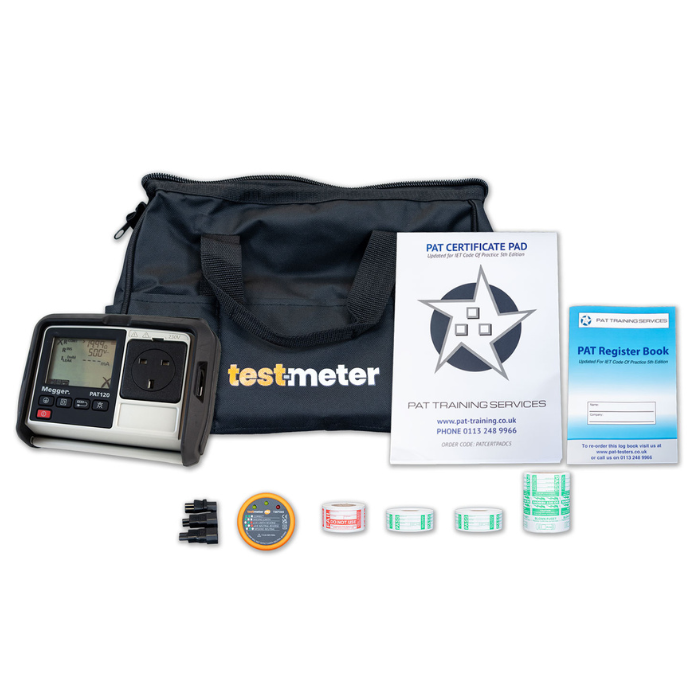

What's In The Box?

  • Megger PAT120 Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT120 Only): 1150g
  • Weight (Shipping): 2370g
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-062
