Megger PAT150 Small Business PAT Testing Kit

Megger
SKU: MEGGPAT150SBKIT
  • Includes Megger PAT150 with Class I, Class II, Class III and extension lead testing
  • Supports earth continuity, insulation, leakage and RCD testing
  • Includes over 1,400 pass and fail labels for clear asset identification
More Info
Typically ships in 3-5 working days

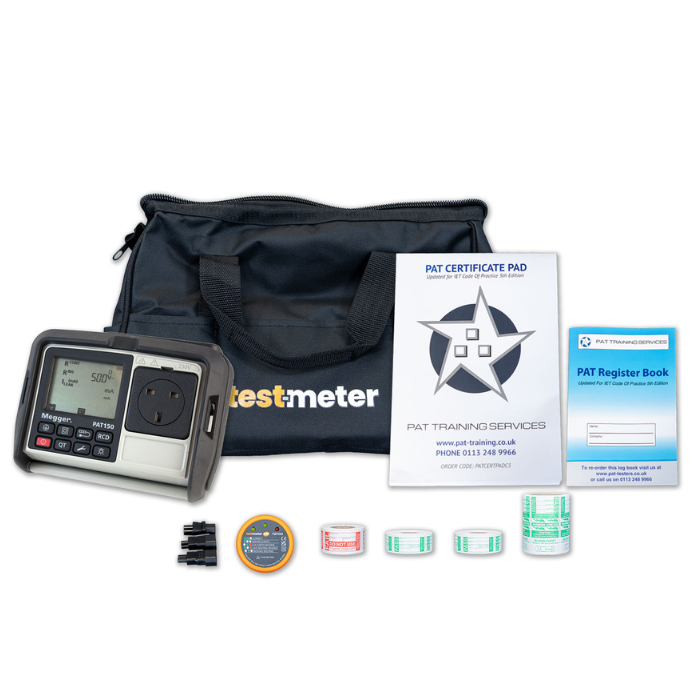

Megger PAT150 Small Business PAT Testing Kit

The Megger PAT150 Small Business PAT Testing Kit provides a practical and cost-effective solution for businesses to carry out routine appliance safety testing in accordance with the IET Code of Practice. The kit includes the Megger PAT150 tester that is capable of testing Class I, Class II, Class III (SELV) appliances and extension leads. It performs all the core tests required for portable appliance testing, including earth continuity, insulation resistance and substitute leakage testing. Additional mains-powered tests such as earth leakage, touch current and portable RCD testing allow users to assess a wider range of electrical equipment, helping to ensure appliances remain safe for continued use in the workplace.

The PAT150 tester has adjustable pass limits and configurable test durations to provide flexibility when working with different appliance types and testing policies. Users can also null the resistance of test leads to improve measurement accuracy, while live circuit measurement functions enable quick checks of mains voltage and socket polarity. Battery-powered operation makes the tester particularly useful when testing equipment in locations where access to a mains supply is limited, while its rugged rubber over-moulding and toughened Gorilla glass construction help it withstand the demands of regular field use.

Included in the kit are essential accessories that support efficient testing such as an IEC Adaptor Kit for testing appliances fitted with IEC leads, as well as a Test Meter PRO socket tester for quickly verifying socket wiring before testing begins. The supplied PAT register book and certificate pad make it easy to document inspections, record results and demonstrate compliance during audits or safety reviews.

A comprehensive selection of pass and fail labels is included to clearly identify tested equipment and maintain accurate asset records. The kit contains 1,000 standard pass labels, 250 pass wrap labels for cables and leads, and 200 fail labels for equipment requiring further attention. Everything is supplied in a durable Test-Meter kit bag, keeping equipment organised and ready for use whether testing on-site or across multiple locations.

Part number: PAT150

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Complies fully with the latest version of the IET Code of Practice
  • Simple pass fail indication & measurement with adjustable PASS limits
  • Rugged and hard wearing design
  • Rechargeable version available (Megger PAT150R)
  • Battery powered, portable design
  • Includes 250V Insulation testing for surge protected extension leads.
  • Automatic test sequences for Class I, Class II, Extension/Power leads
  • 10mA and 30mA Portable RCD lead testing options
  • Substitute and Mains powered leakage testing

What's In The Box?

  • Megger PAT150 tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargable model)
