Megger PAT150R Landlords PAT Testing Kit

Megger
SKU: MEGGPAT150RLKIT
  • Tests portable and fixed appliances, offering landlords greater flexibility
  • Offers both 250 V and 500 V insulation testing
  • Durable, rugged design built to withstand regular transport and uses across multiple properties
More Info
Typically ships in 3-5 working days

Megger PAT150R Landlords PAT Testing Kit

The Megger PAT150R Landlords PAT Testing Kit provides landlords and property managers with a straightforward solution for carrying out portable appliance testing across rental properties. The kit is built around the dependable Megger PAT150R PAT Tester which performs all the essential PAT tests required for routine appliance safety inspections, including earth bond continuity, insulation resistance, polarity and substitute leakage testing. Automatic test sequences for Class I and Class II appliances, as well as IEC and extension leads, reduce testing time and simplify the process. The tester also supports portable RCD testing and earth/touch leakage current measurements, providing additional functionality when more comprehensive safety checks are required. Results are displayed clearly on the backlit screen, complete with PASS/FAIL indications for fast decision-making.

Portability is particularly important for landlords moving between properties, and the PAT150R is designed with this in mind. Its rechargeable battery system and integrated charger eliminate the need to remove batteries for charging, allowing the tester to remain ready for use whenever inspections are scheduled. Minimal user input is required throughout testing, making it easier to complete appliance checks efficiently while maintaining consistent testing procedures.

The included accessories have been selected to support the day-to-day requirements of property inspections. The IEC Cloverleaf Adaptor enables testing of compatible appliances commonly found in rental accommodation, while the Test Meter PRO socket tester allows users to verify socket wiring before commencing PAT testing. A PAT Register Book and PAT Certificate Pad help maintain clear testing records and provide documented evidence of inspections. Pass, pass wrap and fail labels make it easy to identify tested equipment and maintain an organised appliance management system across multiple properties.

For added safety during maintenance or remedial work, the kit also includes a PL13 230V 13A Plug Lockout and padlock. This allows appliances to be isolated and secured against accidental reconnection while faults are investigated or repairs are carried out. Supplied in a durable Test-Meter kit bag, the Megger PAT150R Landlords PAT Testing Kit delivers a practical and cost-effective solution for managing electrical appliance safety within residential rental properties.

Part number: PAT150R

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Purpose-built PAT testing kit for landlords and property managers
  • Automatic Class I, Class II, IEC lead and extension lead test sequences
  • Performs essential PAT tests plus RCD and leakage current measurements
  • Rechargeable PAT tester with integrated battery charger
  • Includes plug lockout and padlock for safer isolation of faulty appliances
  • Supplied with documentation, certificates and appliance labels for complete record keeping
  • IEC Cloverleaf Adaptor supports testing of compatible household and office equipment
  • Portable kit bag for convenient transport between properties
  • Clear PASS/FAIL indications simplify appliance assessment

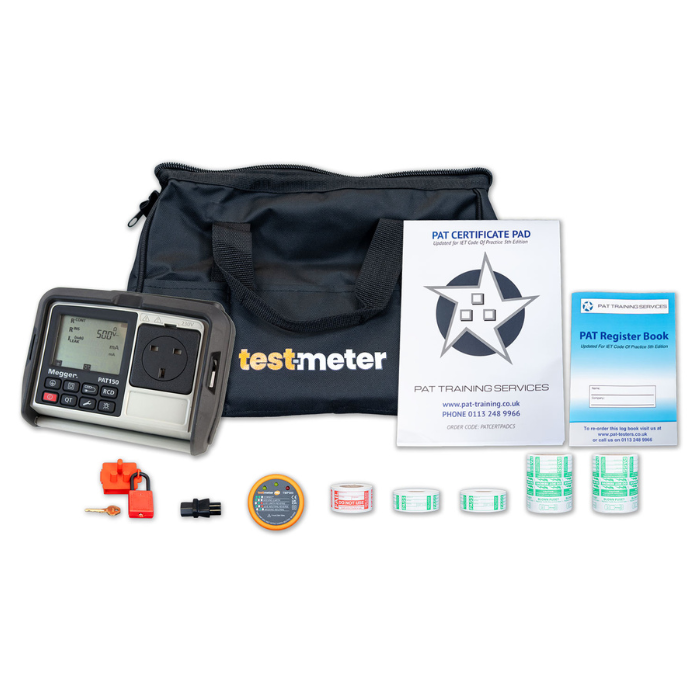

What's In The Box?

  • Megger PAT150R Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargable model)
