Megger PAT150R Small Business PAT Testing Kit

Megger
SKU: MEGGPAT150RSBKIT
  • Rechargeable and cordless PAT tester to test anywhere without needing a mains power supply
  • Performs comprehensive testing functions that cover appliances, extension leads, RCDs, insulation and more
  • Simple pass/fail results for fast and easy compliance testing
More Info
Typically ships in 3-5 working days

Megger PAT150R Small Business PAT Testing Kit

The Megger PAT150R Small Business PAT Testing Kit is designed carry out portable appliance testing efficiently and in accordance with current safety requirements. Built around the reliable Megger PAT150R PAT Tester, this kit provides everything needed to inspect, test and document electrical appliances, helping small businesses maintain compliance while reducing the need for outsourced testing services.

The Megger PAT150R is easy to use and performs all the essential PAT tests required for routine appliance safety inspections, including earth bond continuity, insulation resistance, polarity and substitute leakage testing. Automatic test sequences for Class I and Class II appliances, as well as IEC and extension leads, speed up the testing process and minimise operator input. For users with more demanding requirements, the tester can also carry out portable RCD testing and earth/touch leakage current measurements. Clear PASS/FAIL indications and a backlit display make results easy to interpret, even in poorly lit environments.

This kit is particularly well suited to businesses with a modest number of appliances to test. The rechargeable battery system allows the tester to be moved easily between locations without relying on mains power, while the integrated battery charger removes the inconvenience of removing and charging batteries separately. As a manual PAT tester without onboard memory, it is ideal for users who prefer simple operation and manual record keeping.

The included accessories support every stage of the PAT testing process. The IEC Adaptor Kit expands testing capability for IT equipment and appliances fitted with IEC connectors, while the Test Meter PRO socket tester enables quick verification of socket wiring before testing begins. A PAT Register Book and PAT Certificate Pad help maintain accurate testing records and provide evidence of completed inspections. The supplied pass, wrap and fail labels make it easy to identify equipment status, helping users maintain an organised and compliant testing programme.

Packed in a durable Test-Meter kit bag for convenient transport and storage, the Megger PAT150R Small Business PAT Testing Kit provides a complete, cost-effective PAT testing solution for organisations looking to manage electrical appliance safety in-house.

Part number: PAT150R

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔
  • Complete PAT testing kit designed specifically for small businesses
  • Automatic Class I, Class II and extension lead test sequences for faster testing
  • Performs advanced tests including portable RCD testing and leakage current measurement
  • Integrated rechargeable battery system with built-in charger
  • Clear PASS/FAIL indications and backlit display for easy result interpretation
  • Includes PAT register book, certificate pad and appliance labels for full documentation
  • IEC adaptor kit supports testing of IT and office equipment
  • Supplied in a portable Test-Meter kit bag for easy transport and storage

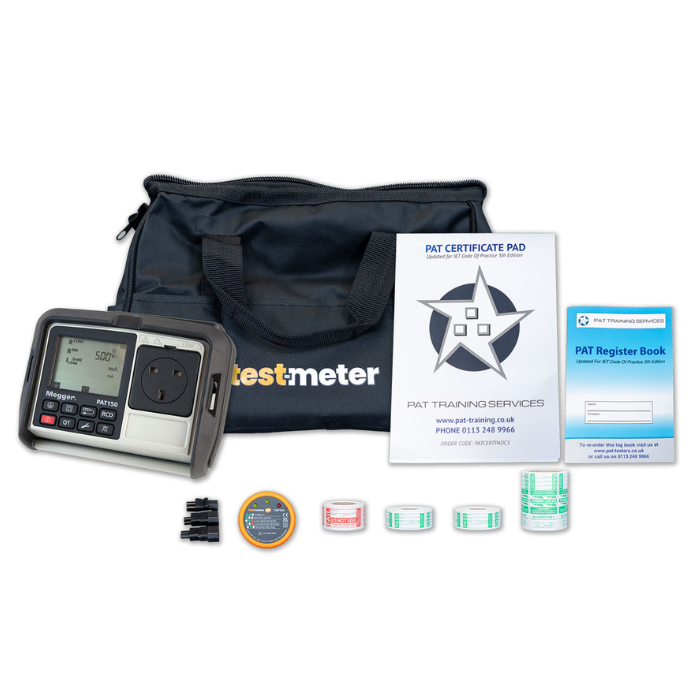

What's In The Box?

  • Megger PAT150R Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargable model)
