Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - Std Kit

SKU: METRMI3109STANDARD
  • Performs all electrical tests required for commissioning PV
  • Includes I-V curve tracer / calculation
  • Tests in accordance with IEC62446 and IEC61829
  • Ideal for troubleshooting and periodic maintenance on Solar PV
More Info
In Stock - Available Next Day

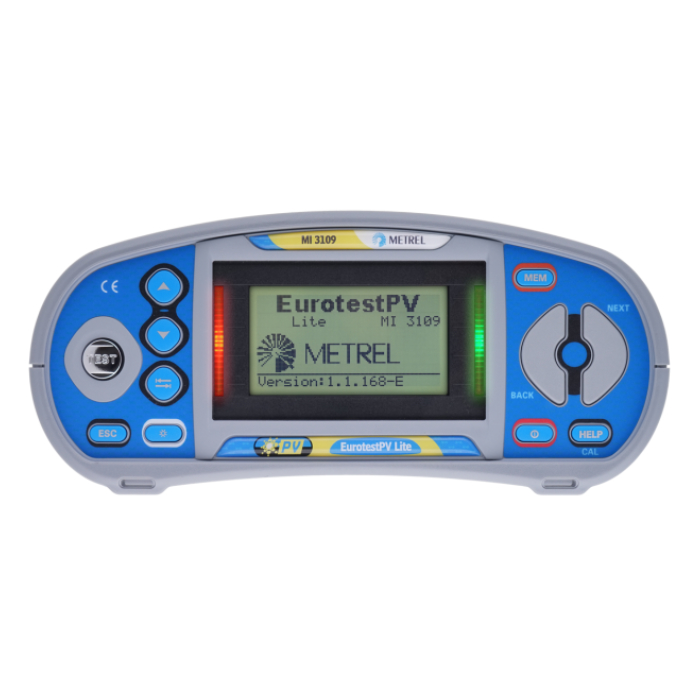

Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V Curve Tracer - Standard Kit

The Metrel MI3109 EurotestPV Lite Solar PV Tester and I-V curve tracer is an all-in-one Solar PV tester, performing all necessary tests required for commisioning and trouble shooting PV installations.

The EurotestPV Lite is built with a clear focus on PV testing and this is reflected its Autotest one-button programme, performing a complete set of tests needed for verification of PV installations according to EN62446 at the push of a single button.

In addition to including all the electrical safety tests required by BSEN62446, the Metrel MI3109PV Lite also performs I-V curve characteristic measurements.

Metrel EuroLink PRO software

The MI3109 Lite is supplied with Metrel's EuroLink PRO PC software for generating test reports and I-V curve graphs.

The Metrel MI3109 EurotestPV Lite Standard Set also contains a range of useful accessories including Universal PV and PV Continuity test leads, test probes, crocodile clips and PV MC3/4 male/female adapters, in addition to a carrying strap and soft carry case to protect the equipment in the field.

The Metrel MI3109 EurotestPV Lite Multifunction Tester is also available as the MI3109 Lite Pro Kit which, in addition to all supplied accessories with the Standard Kit, also comes with the EurotestPV Remote Unit, (for remote logging of panel irradiance and temperature), Irradiance Probe, Temperature Probe, PV Safety Probe and an additional carry bag.

Key Features

  • Autotest feature for quick and easy sequence testing on Solar PV systems
  • Performs insulation and continuity testing on Solar PV systems
  • Measure Open Circuit Voltage and Short Circuit Current using supplied DC clamp
  • I-V curve tracing of PV modules and strings
  • Irradiance  and Module temperature probes available (optional extras)
  • Efficiency of PV module, inverter, PV system calculation (AC only)
  • Calculation to STC values and efficiency calculations
  • Graphical representation of module’s I-V curve
  • Store and download test results into Eurolink PC Software
  • Optional PV Remote Unit for simultaneous measurements of solar irradiation and temperature of PV module (supplied in MI3109 Pro Kit)

Metrel Solar PV Tester and I-V Curve Tracers comparison table

  Metrel MI3109 Metrel MI3109 PRO Kit Metrel MI3108ST Metrel MI3108 PS PRO Kit
Auto Tests (Auto PV (ISC, Uoc, Ins= Ins-)
Auto-sequences Pass/Fail System Evaluation
Automatic Test sequences (Multi-test sequence)
Three phase (3-phase system phase sequence) Optional Optional
Z Line/ Loop impedance
RCD
Earth Resistance 2-wire and 3-wire/Ground Resistance
Power measurements
Harmonics: THD Voltage and Voltage Harmonics
Graphical user interface Scope

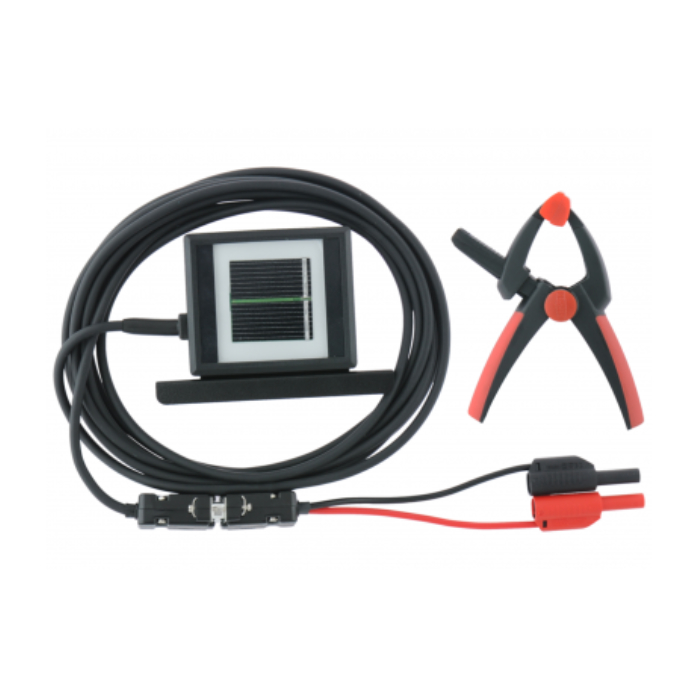

PV Reference Cell Optional Optional

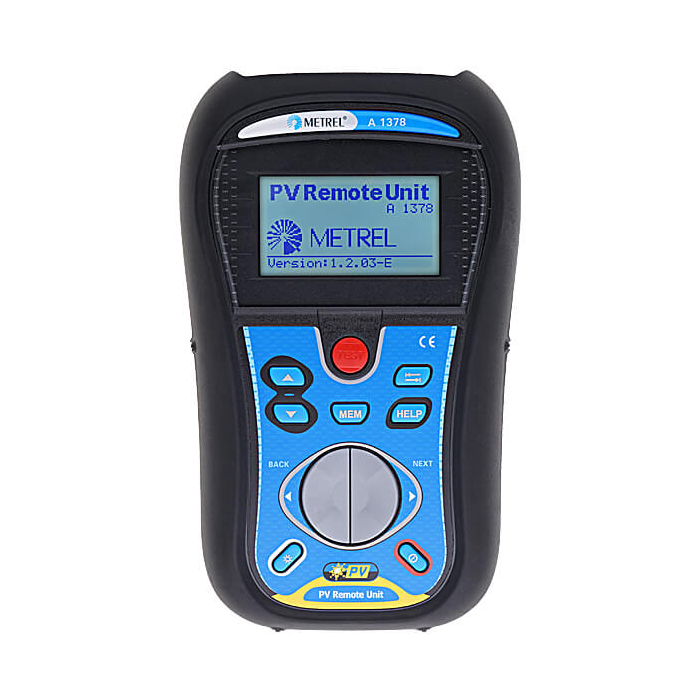

Metrel A1378 EurotestPV Remote Optional Optional
PV Safety Probe Optional Optional

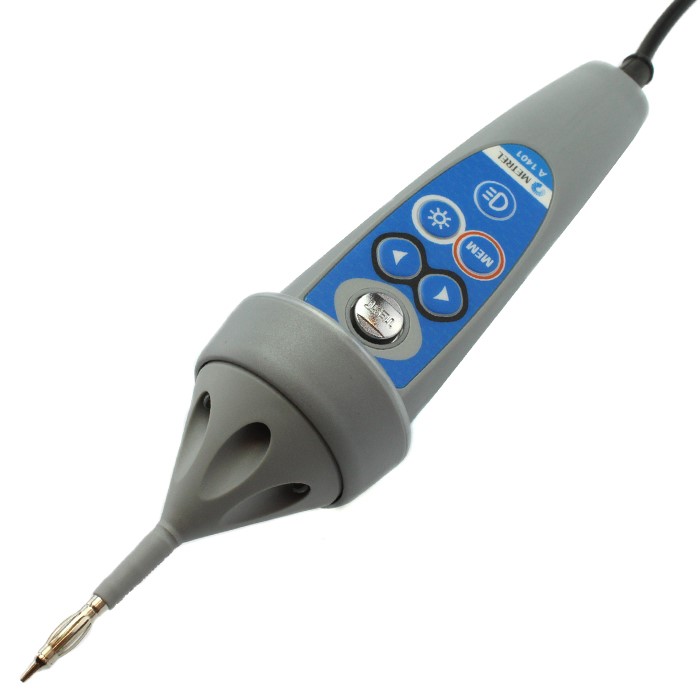

Tip Commander
Plug Commander
Generator Current Clamp
RIFD Reader

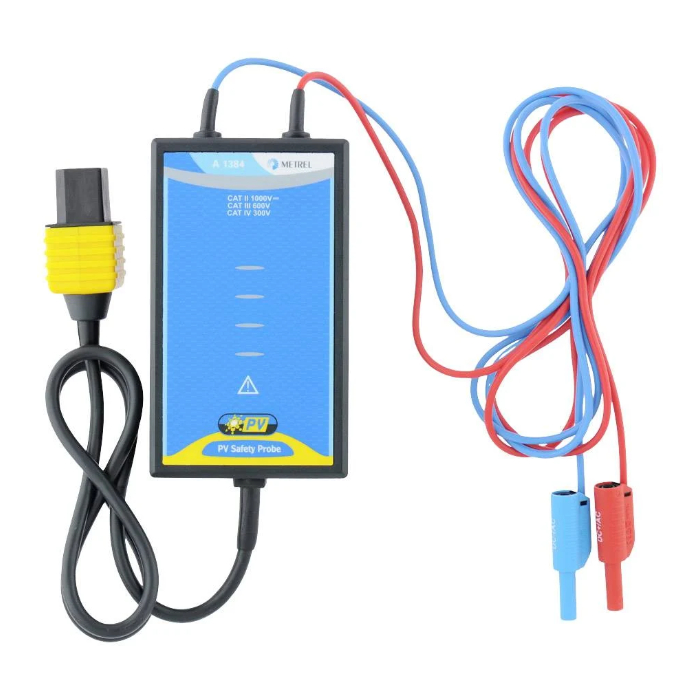

PV Safety Probe
Pyranometer

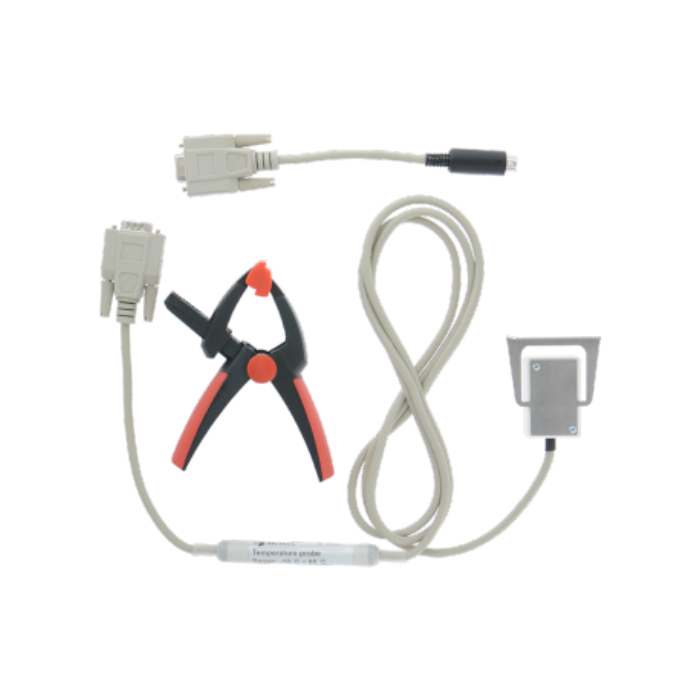

Temperature Probe
Power Supply adaptors x2
Mains plug cable 1.5m
UK Mains came for charging adapter x2
Universal PV Test lead, 3 x 1.5m
PV Continuity Test Lead 1.5m x2 x2 x3 x3
Test Probes Red, Blue and Green Red, Blue and Green Red, Blue and Green Red, Blue, Green and Brown
Crocodile Clips Red, Blue and Green Red, Blue and Green Red, Blue and Green Red, Blue, Green and Brown
PV MC3/4 Male/Female adaptors
AC/DC Current Clamp
Power supply adaptor, AA batteries x6 x6 x6 x12
USB and RS232 PS/2 Cable
PC SW EuroLink PRO
Soft Carrying bag x1 x2 x1 x1
Carry Strap x1 x1 x1 x2
Short Instruction Manual
Instruction Manual and Handbook on CD
Calibration Certificate

What's In The Box?

  • MI 3109 EurotestPV Lite
  • Soft carrying bag
  • 3 x 1.5m Universal PV test lead
  • 2 x 1.5m PV Continuity test lead
  • 3 x Test probe and crocodile clip
  • PV MC3/4 male/female adapters
  • AC/DC current clamp
  • Power supply adapter + 6 AA NiMH batteries
  • USB and RS232 - PS/2 cable
  • PC SW EuroLink PRO
  • Carrying strap
  • Instruction manual / handbook (Book and CD)
  • Calibration certificate
Specification

Photovoltaic Installation Measurements

Voltage: Measuring range/ Basic accuracy

  • Measuring Range: 0 VDC - 999 VDC/ Basic Accuracy ±(1% of reading + 2 digits)
  • 0 VAC - 999 VAC/ ±(1.5% of reading + 3 digits)
  • I-V m.: 0 VDCC-999 VDC/ ±(1% of reading + 2 digits)

Current: Measuring range/ Basic accuracy

  • Panal m.: 0.0mA - 300ADC/ ±(1% of reading + 2 digits)
  • Invert. M.: 0.0mA - 300AAC/ ±(1.5% of reading + 3 digits)
  • I-V m.: 0.00 A - 15 ADC/ ±(1% of reading + 2 digits)

Power: Measuring range/ Basic accuracy

  • Panal m.: 0 -199.9kW/ ±(2.5% of reading + 6 digits)
  • I-V m.: 0 - 14.99 kW/±(2 % of reading + 3 digits)

U/ I Curve: Measuring range/ Basic accuracy

  • 1000V/ 15A/ 15kW

Irradiation: Measuring range/ Basic accuracy

  • 000 - 1.75 kW/m2 / ±(4% of reading + 5 digits)

Temperature

  • -10ºC to +85ºC

Electrical Installations Measurements

Insulation Resistance (EN 61557-2): Measuring range/ Basic accuracy

  • U= 50, 100, 250VDC/ ±(5% of reading + 3 digits)
  • R: Up to 199.9MΩ/ ±(5% of reading + 3 digits)
  • U= 500VDC, 1kVDC/ ±(5% of reading + 3 digits)
  • R: Up to 999MΩ/ ±(5% of reading + 3 digits)

Continuity, 200mA (EN 61557-4): Measuring range/ Basic accuracy

  • 0.00 Ω to 1999Ω/ ±(3% of reading + 3 digits)

Continuity 7mA: Measuring range/ Basic accuracy

  • 0.0Ω to 1999Ω/ ±(5% of reading + 3 digits)

General Specifications

  • Main Unit Display: 128 x 64 dots matrix display with backlight
  • Remote Unit Display: 128 x 64 dots matrix display with backlight

Power Supply

  • Main Unit 6 x 1.2 V NiMH batteries, type AA
  • Remote Unit: 6 x 1.2 V NiMH batteries, type AA
  • Over voltage category: CAT II / 1000 VDC; CAT III / 600 V; CAT IV / 300V
  • Protection Class: Double Insulation

CDM Port

  • Main Unit: RS232 and USB
  • Remote Unit: RS232

Dimensions

  • Main Unit: 230 x 103 x 115mm
  • Remote Unit: 140 x 230 x 80mm

Weight

  • Main Unit 1.3KG
  • Remote Unit: 1KG
