Radiodetection Genny4 Signal Generator

SKU
RADDETGENNY4
  • Ground-breaking dual frequency output
  • Signal Boost for greater distances/depths
  • Reverse compatibility with CAT3 and Genny 3 accessories
More Info
inc VAT £550.80 ex VAT £459.00
Typically ships in 2-4 working days


Product Details

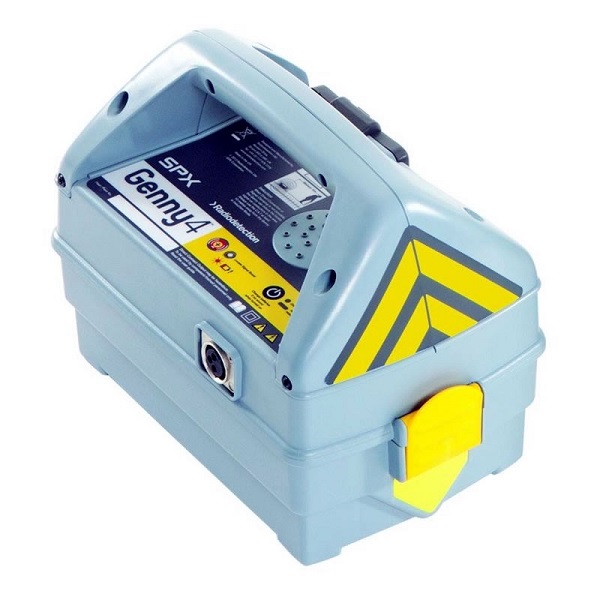

Radiodetection Genny4 Signal Generator

Featuring an innovative integrated logic design, the The Radiodetection Genny 4 provides a revolutionary dual-frequency signal output. Together with the familiar 33 kHz locate signal for general purpose utility tracing, the Genny 4 can also transmit a second frequency designed to locate smaller cables such as telecoms, data and street lighting. For more complicated applications, the Genny 4 also features a new power boost function that enables the frequency signal to travel further and deeper into the ground, whilst coupling onto utilities more easily.

Autotest button performs a suite of network tests

All Radiodetection CAT4 and Genny4 products are Network Rail approved – please click here to view the Network Rail Certificate.

Radiodetection Genny4 Key Features

  • Small Cable Locating - Simultaneous dual frequency alongside intuitive location methods assist C.A.T4 users to locate smaller diameter cables such as telecoms/data twisted pairs, CATV supplies, spurs and drop-offs that have traditionally been harder to locate, posing frequent strike risks.
  • High Strength Neodymium Magnet - allows for easy attaching of the Genny4 onto buried utility cables through metallic street furniture such as lampposts, motoring signs etc. Moreover the Genny4 is compatible with coated designs, due to the new dual-frequency signal output.
  • Genny4 Signal Boost – alongside the standard power mode, the Genny 4 features a ‘Signal Boost’ feature that can magnify the output signal up to 10 times, allowing utility location over greater distances and depths.
  • Accessory Storage Tray - Conveniently stores Genny 4 accessories, including the supplied magnet, earth stake and direct connection leads.
  • Reverse Compatibility – Both C.A.T4 and Genny 4 are backwards compatible with all C.A.T3 and Genny 3 accessories.
What's In The Box?
  • Radiodetection Genny4 Signal Generator
  • Direct Connection Leads
  • Earth Stake
More Information
Specification
  • Signal output power: 0.1W
  • Signal boost output power: 1.0W
  • Induction mode signal characteristic: 33kHz
  • Direct connection/clamp signal characteristic: 33kHz and small diameter locate frequency. Automatic impedance matching on connection
  • Batteries: 4 x LR20 (D) 1.5V alkaline
  • Warranty: 12 months
Icon Filename Type Size Download
pdf CAT 4 Product Brochure pdf 1.5 MB Download
pdf CAT 4 User Manual pdf 2.4 MB Download
pdf CAT4 Network Rail Certificate pdf 1.5 MB Download
