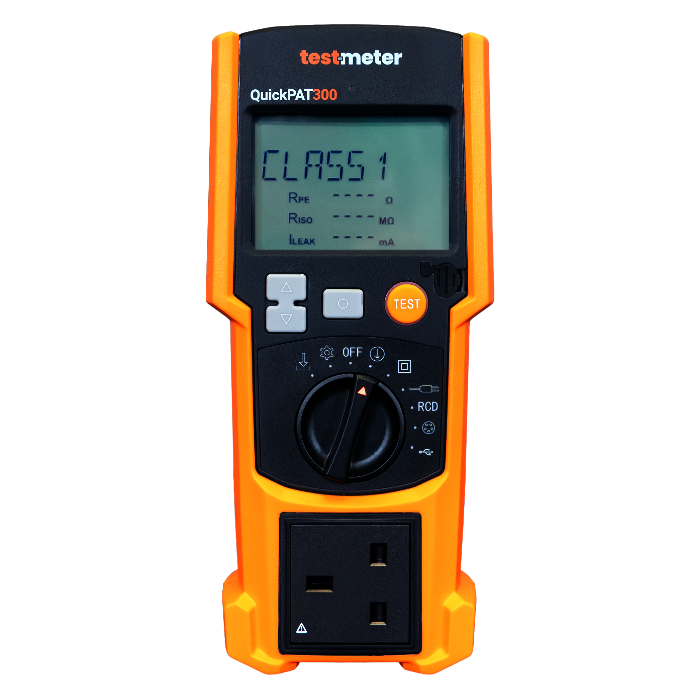

Test Meter QuickPAT300 PAT Tester

Test Meter QuickPAT 300 PAT Tester

The Test Meter QuickPAT300 PAT Tester is the most advanced model in the QuickPAT range, designed for specialist users who need in-depth diagnostic capability and superior testing performance. Building on the features of the QuickPAT200, it adds differential leakage, touch leakage, RCD testing and USB device verification, making it one of the most comprehensive handheld PAT testers available today.

The QuickPAT300 features differential and touch leakage testing, which provides a more accurate assessment of equipment containing filters, switch-mode power supplies or sensitive electronics. These tests are particularly relevant in IT environments, laboratories, workshops and industrial settings where substitute leakage alone may not give a complete view of electrical safety. The QuickPAT300 also supports full RCD trip-time measurement at 30mA and 150mA at both 0° and 180°, further expanding the tester’s capability and ensuring protective devices operate safely within required parameters.

Since USB device testing has increasingly become important in modern workplaces, the QuickPAT300 can also verify USB power supplies and powered equipment quickly and reliably. Optional accessories allow 3-phase leakage measurements, extending the tester’s reach into heavier industrial applications.

Powerful and easy to use, the QuickPAT300 comes with a bright numerical display, intuitive rotary selector and an internal memory that is capable of storing up to 1,500 test records. Despite its advanced functions, it remains lightweight at just 990g and provides up to 2,500 tests from a single set of AA batteries.

The QuickPAT300 is designed to work seamlessly with the test limits outlined in the 5th Edition IET Code of Practice and the BS EN 50699 Recurrent Tests of Electrical Equipment standard. Once the appropriate pass thresholds are selected on the tester, it will automatically assess readings against the published requirements, giving a clear and immediate pass or fail indication.

For more information about how the QuickPAT range can help you, be sure to check out our blog post.

Comparing QuickPAT100, 200 and 300 PAT Testers

Test Meter part number: HDT5011

Key Features

• Advanced handheld PAT tester with expanded diagnostic capability
• Includes all QuickPAT200 functions plus additional tests
• Differential leakage measurement for accurate assessment of complex electronics
• Touch leakage testing for comprehensive safety evaluation
• RCD testing with full trip-time measurement at 30 mA and 150 mA (0° and 180°)
• USB power supply and powered device verification
• Optional accessories for 3-phase leakage measurement
• Bright, easy-to-read numerical display
• Intuitive rotary selector for straightforward operation
• Internal memory storing up to 1,500 test records
• Lightweight design (approx. 990 g)
• Long battery life with up to around 2,500 tests from one set of AA batteries
• Automatic pass/fail assessment against selected limits based on relevant standards
• Designed to work with 5th Edition IET Code of Practice test limits
• Compatible with BS EN 50699 Recurrent Tests of Electrical Equipment criteria
