Testo 110 Single Channel Thermometer

SKU: TESTO110
  • Measures temperature from -50˚C to 150˚C (depending on probe)
  • Testo Smart App connectivity
  • Audible alarms if data values are exceeded
More Info
In Stock - Available Next Day

Testo 110 Single Channel Thermometer

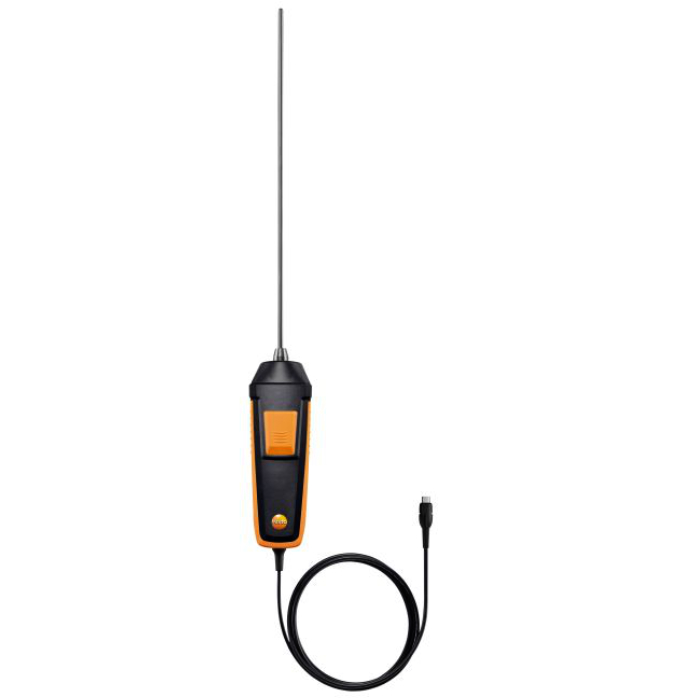

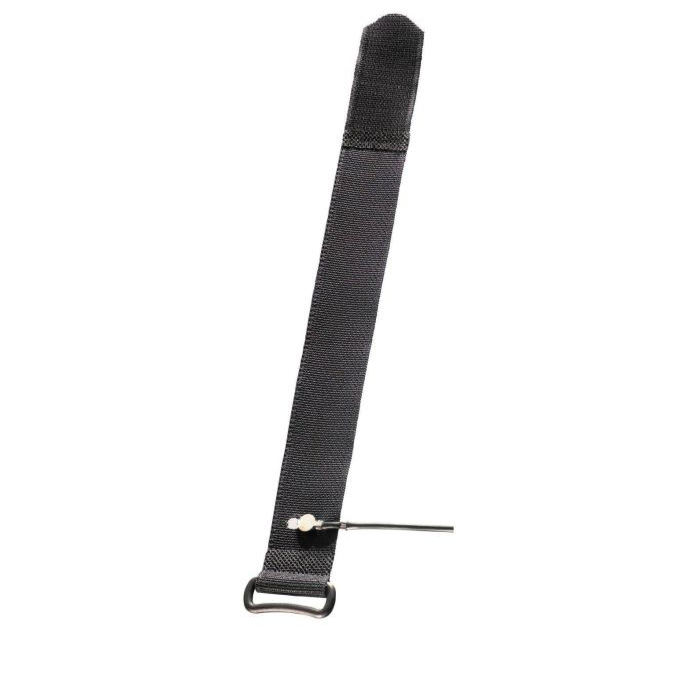

The Testo 110 Single Channel Thermometer when used alongside the optional NTC (Temperature range: -50ºC to 150ºC) or Pt100 (temperature range: -200ºC to 800ºC) probes allows users to measure temperature simply, fast and precisely, particularly in laboratories and in food environments.  Using the Testo Smart App users are able to use a smart device as a second screen to configure, view graph history and data storage. The Testo 110 has an audible alarm alerting users if a limit value has been exceeded.

The Testo 110 used alongside the optional NTC and Pt100 probes allows users to test and measure accurately and in a wide range of environments such as laboratories and food environments.

The unit is HACCP compliant and certified according to EN 13485 allowing use in the food sector and with a protection class rating of IP40. Used alongside the optional Topsafe protective cover further enhances the protection of the Testo 110 front water and dust ingress.

Testo Smart App

The Testo Smart App supports the user being able to configure the measuring instrument. Users are able to view graphical measure value curve. Using a smart device with the downloaded app, users are able to turn their smart device into a second screen.

The Testo Smart App allows for operation, measurement and documentation of all compatible Bluetooth enabled Testo measuring instruments. With its intuitive measurement menus, quick configuration, the Testo Smart App is simple to use and allows for uncomplicated documentation to be completed. Measurements can be found quickly and easily with data shown in graphical and tabular curve display.

The App allows for data to be stored alongside customer information. Reports can be easily generated, including photos as PDF/CSV files and emailed directly from the smart device to colleagues or customers.

Data can be transferred to a PC using Testo's PC software DataControl. The App benefits from continuous updates and extensions.

Testo part number: 0563 0110

Key Features

  • Temperature Range: -50ºC to 150ºC
  • Accuracy: -20ºC and 80ºC ±0.2°C
  • Compatible with NTC and Pt100 probes
  • Testo Smart App connectivity
  • Audible alarm when limit values are exceeded
  • HACCP compliant and certified according to EN 13485

What's In The Box?

  • Testo 110
  • TUC probe socket
  • 3 X AA batteries
  • Transport bag
  • Calibration protocol
Specification

Pt100 Specification

  • Measuring Range: -200ºC to 800ºC (depending on probe)
  • Accuracy ±1 digit: According to the probe accuarcy
  • Resolution: According to the probe accuracy

NTC Specification

  • Measuring Range: -50ºC to 150ºC
  • Accuracy: ±0.2°C (-20 to +80°C)/ ±0.3°C (Remaining Range)
  • Resolution: 0.1ºC

General Specifications:

  • Operating temperature: -20ºC to 50ºC
  • Storage temperature: -20ºC to 50ºC
  • Battery type: 3 x AA batteries
  • Battery life: 100 hours
  • Dimensions: 135 x 60 x 28mm
  • Weight: 187g
  • Protection class: ip40 (With TopSafe: IP65)
  • Housing material ABS + PC/TPE
Label Type Size Download
pdf Testo Compact Class Brochure - Jan 2023 pdf 3 MB Download
