Testo 570s Smart Digital Manifold Vacuum Kit

Testo 570s Smart Digital Manifold Vacuum Kit

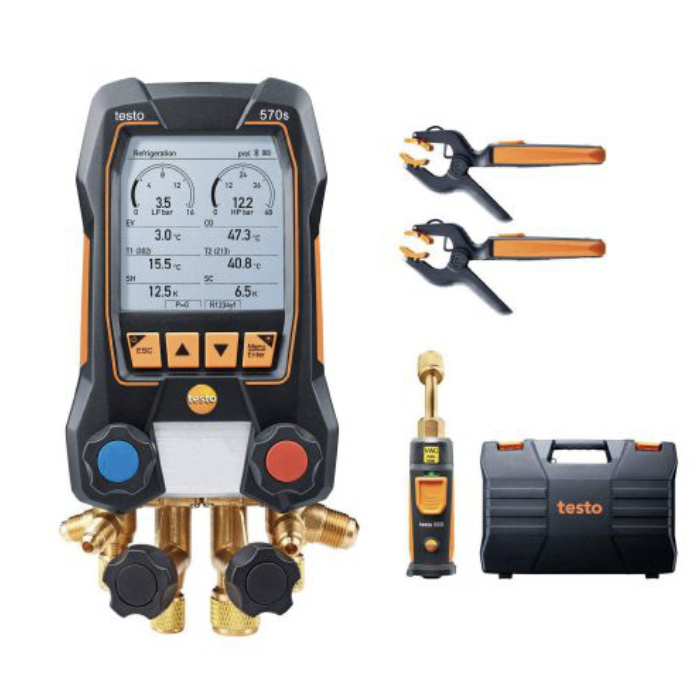

The Testo 570s Smart Digital Manifold Vacuum Kit provides users with a four way valve lock with Bluetooth® connection digital manifold. Included in the kit is the Testo 570s Smart Digital manifold, two Testo 115i clamp temperature probes and a Testo 552i vacuum probe. The kit contents can be transported securely, in the robust case provided with space for Testo 570s and accessories.

Testo 570s Smart Digital Manifold

The Testo 570s Smart Digital Manifold isBluetooth® enabled providing users with a four way valve block providing an optimal solution for long term measurements on refrigeration and air conditioning systems as well as heat pumps. The Testo 570s is also suitable for use with A3 and A2L refrigerants. All measurement data can be viewed at a glance and a graphically thanks to the large display.

The Testo 570s allows users to measure temperature from -50ºC to 150ºC and measuring pressure from -1 to 60 bar with a high level of accuracy, providing users with a reliable tester for short and long term data measurements.

With a battery life of up to 360 hours of run time with rechargeable batteries (USB-C) with a large data memory for measurement the Testo 570s provides user with battery life for muliple days in the field. The battery life is further preserved by the auto off function after ten minutes of inactivity.

Testo 552i Wireless Bluetooth Vacuum Smart Probe

The Testo 570s Vacuum kit includes two Testo 552i app controlled wireless vacuum probes, allowing users to quickly identify vacuum by graphical display in the app or on the digital manifold screen. users can be alerted of critical values using the app. Automatic connection via Bluetooth® to the smart app or digital manifold. The integrated 45º angle allows easy installation at any service port.

The single service port of the 552i allows for simple measurement of system evacuations. The probe is IP54 rated providing a robust housing and offering protection from water and dust ingress.

Testo 115i Clamp Temperature Probe

The Testo 115i allows users to measure temperature on refrigeration, air conditioning and heating systems and wirelessly transfer data to a smart device. When used alongside the Testo 570s, The 115i can calculate individual refrigeration system parameters. The 115i can also be used to measure flow and return temperatures.

Measurement data can be analysed and transferred to the Smart Probes App. Measuring points can up to 100m apart thanks to the Bluetooth® range

Testo Smart App and Smart Probe App

The Testo 570s is compatible with the Testo Smart App which allows the operator to view anomalies to be detected quickly and reliably. Documentation and transfer of data is quick and easy. Users are able conduct remote operation or use the second a smart device as a second screen. Users van digitally create reports complete with photos as PDF/CSV files on site and forward them via email straight away to customers or colleagues.

The Testo Smart Probes App can be downloaded for free from the App Store or Google Play and works with all instruments in the Testo Smart Probes range. The App displays real-time readings on screen for a whole range of variables. Up to six Smart Probes can work in tandem and information can be saved in Excel or as a .pdf report (including pictures). Advanced analysis is available and the Testo Smart Probes range represents a major advance in system inspection and evaluation.

Testo 570s Digital Manifold Kits

The Testo 570s Digital Manifold is available as a standalone product or as part of a kit. Kit contents are listed below:

Key Features

Testo 570s Digital Manifold

• Digital manifold with a four-way valve lock
• Bluetooth® capability
• Large data memory
• Conduct long term measurements for refrigeration , air conditioning systems and heat pumps
• Optional temperature, vacuum and current probes can be automatically connected with Bluetooth
• Highly accurate pressure of 0.25% fs
• Measurements displayed on the large screen
• Compatible with the Testo Smart App
• Large 360 hour battery life
• Auto off function
• IP54 protection rating
• Suitable for use with A2L and A3 refrigerants
• Reliable tester for short and long term data measurements.

Testo 115i

• Temperature range: -40˚C to 150˚C
• Accuracy: ±1.3˚C (-20˚C to 85˚C)
• Resolution: 0.1˚C
• Clamping diameter: 6mm to 35mm
• Suitable for refrigeration and HVAC applications
• Wireless Bluetooth® communication over 100 metres
• Works with free Testo Smart Probes app
• Battery life of 150 hours

Testo 552i

• Swift vacuum measurement
• Graphical display in App or Digital Manifold
• Integrated 45˚ angle for easy installation
• Connects automatically to free Testo Smart App or Manifold
• 130m Bluetooth® Range
• Operation through single service port
• Designed to avoid unnecessary leaks
• Compatible with Testo 550s and 557s Digital Manifolds
• Robust housing
• Rated IP54
