Tramex Concrete Coatings Kits

SKU: TRAMCCKITS-CONF
  • Choice of three concrete inspection kits
  • Designed for accurate, non-invasive instant measurements
  • Measures up to 6.9% moisture content in concrete
More Info

Tramex Concrete Coatings Kits

The Tramex Concrete Coatings Kits are supplied with either a CME5 Concrete Moisture Meter or a CMEX5 Concrete Moisture Encounter X5. The analogue CME5 and digital CMEX5 are designed to provide rapid, non-destructive accurate moisture content measurements. Suitable for solid floors including concrete and screed, each kit comes complete with several accessories for enhancing tester functionality.

A non-destructive device, the Tramex CME5 Concrete Encounter Moisture Meter performs tasks fully in line with ASTM F2659. It includes a concrete moisture content range of range of 0% to 6%, equivalent scales for anhydrite screed (0 to 1.9) and equivalent scales for concrete screed (0 to 4).

  • Measures concrete moisture content up to 6%
  • Non-destructive device
  • Carbide Method moisture content equivalent for Concrete 0 to 4
  • Carbide Method moisture content equivalent for Anhydrite 0 to 1.9
  • 20mm approximate (3/4") depth of penetration

The Tramex CMEX5 Concrete Moisture Encounter X5 however is a non-destructive unit which utilises Gravimetric testing as a baseline. Specifically for concrete floors and slabs, it provides precise and swift quantitive measurements of the moisture content within a range of 0 - 6.9%. For cementitious substrates, the meter provides Carbide Method (CM) equivalent readings alongside comparative readings also as per ASTM F2659. The CM measuring range for concrete is 0 - 4.3 while the Gypsum floor screed range is 0 - 12.

  • Measures concrete moisture content up to 6.9%
  • Non-destructive device
  • Moisture counter for wood 5 to 30%
  • Comparative moisture content equivalent for Gypsum floor screed 0 to 12
  • Carbide Method moisture content equivalent for Anhydrite 0 to 2.7
  • Carbide Method moisture content equivalent for Concrete 0 to 4.3
  • Relative Humidity range of 0 → 99%
  • Humidity accuracy of 0% → 99%RH +/- 2% @ 25°C / 77°F
  • 20mm approximate (3/4") depth of penetration

The Tramex Concrete Coatings Tech Inspection Kit comes complete with an additional Tramex DL-RHTA Feedback Datalogger. Suitable for long-term monitoring of air temperature and relative humidity, it has a relative humidity range of 0 to 100% RH and an air temperature measurement range of -40˚C to 125˚C. With enough space for 100,000 different data points this temperature and humidity data logger can connect to a smart device via internal Bluetooth at a range of up to 50m. Furthermore, it is possible to measure temperature and humidity via an external plug-in sensor and contact temperature via another external probe with a range of -30˚C to 80˚C.

  • Measures air temperature in a range between -40˚C to 125˚C
  • Includes a humidity range of 0 to 100% RH
  • Impressive internal memory of 100,000 data points
  • Connects to Tramex Feedback DataLogger App

Applications

It is important to make regular moisture content measurements throughout the drying period of a new or existing concrete floor (or floor screed). This ensures that the floor has reached a sufficient aridity in order to accept treatments, adhesives or final floor material. Furthermore, it also important to identify moisture related problems and determine when sealants are required.

Problems associated with moisture within concrete

Unnecessary moisture content within concrete floor slabs and screeds can lead to a multitude of problems across all types of floor coverings such as degradation of adhesion, delaminating of the floor covering, condensation, blistering, movement and deterioration of the covering.

Featured Accessories

App available for Android and iOS

Visualise readings and send data through the Tramex Meters App available for free and compatible with both Android & iOS devices. GeoTag test results, create, save and share photos, reports & charts, as well as see your meter screen on your smartphone when extending to hard to reach places.

CTP Contact Temperature Probe

For use with the FeedBack DataLoggers, a plug-in accessory probe for measuring and logging surface temperature over time. It can also be used to identify dew point circumstances.

IRT2 Infrared Thermometer

A handheld, dual laser, non-contact Infrared Thermometer with 12:1 distance to spot ratio and audible and visible high/low set point alarms. Useful for measuring & displaying surface temperatures within a range of -50°C to 650°C (-58˚F to 1202˚F), it features an accuracy of approximately 1 to 1.5%

E5-HBS Extension Handle

Built for use with the Tramex CME5 and CMEX5 moisture meter, this accessory performs tasks in high places, or low to the ground as the extendable handle also reduces the need for crouching or kneeling. The handle has a Min. length of 30cm and Max. of up to 80cm.

Tramex Concrete Inspection Kit Comparison

  Tramex Concrete Coatings Tech Kit (CCTK) Tramex Concrete Coatings Inspector Kit (CCIK)
Free App available for Android and iOS
E5-HBS Extension Handle
CME5 Concrete Moisture Encounter 5 -
DL-RHTA Feedback Datalogger -
CTP Contact Temperature Probe -
CMEX5 Concrete Moisture Encounter X5 -
IRT2 Infrared Thermometer -

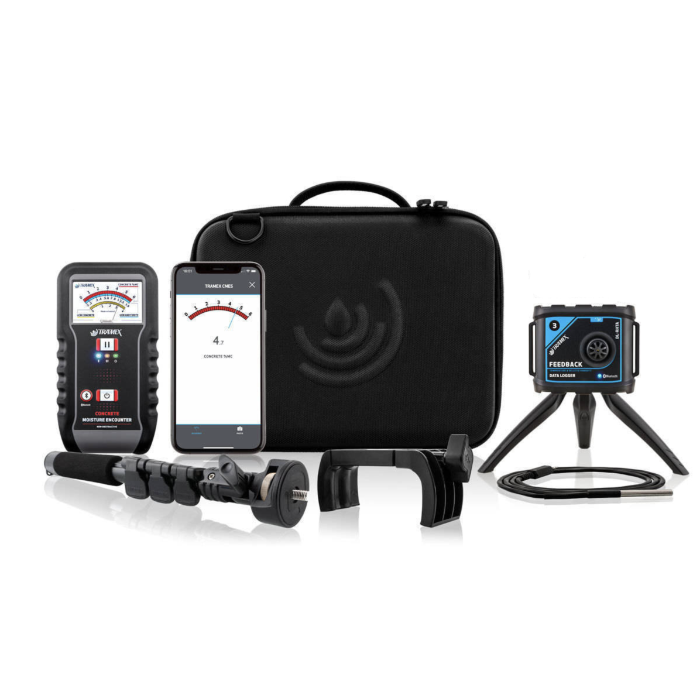

Tramex Concrete Coatings Tech Kit Includes:

  • CME5 Concrete Moisture Encounter 5
  • DL-RHTA Feedback Datalogger
  • Free App available for Android and iOS
  • CTP Contact Temperature Probe
  • E5-HBS Extension Handle

Part number: CCTK

Tramex Concrete Coatings Inspector Kit Includes:

  • CMEX5 Concrete Moisture Encounter X5
  • Free App available for Android and iOS
  • IRT2 Infrared Thermometer
  • E5-HBS Extension Handle

Part number: CCIK

Which Tramex Installation Moisture Kit Is Right For You?

Tramex have established an incredible range of hugely impressive moisture meter kits, each designed to make flooring installation or inspection considerably easier. Be it establishing moisture levels at the time of installation, preparing slabs for coating applications or even determining the precise location of encroaching moisture, Tramex have the right kit for the job. But which kit do you need?

Each kit is supplied with either the Tramex CME5 Concrete Encounter Moisture Meter or the Tramex CMEX5 Concrete Moisture Encounter X5. The CME5 is an analogue unit, capable of non-destructive moisture measurements in concrete and screed. It features a concrete moisture content range of 0% to 6% and equivalent scales for anhydrite screed (0 to 1.9) and concrete screed (0 to 4). Thanks to the Bluetooth connection it is fully compatible with the Tramex App available on both iOS & Android.

Alternatively, the Bluetooth enabled CMEX5 offers a wealth of other features in addition to taking non-destructive moisture measurements. Specifically designed for concrete floors and slabs, using Gravimetric testing as a baseline the CMEX5 has a concrete moisture range of 0 - 6.9% and equivalent scales for gypsum floor screed (0 to 12) and concrete screed (0 to 4.3). Featuring a built-in ambient relative humidity (RH) sensor and in-situ RH / Pin Probe connections, by inserting a Tramex Hygro-i2 RH probe you can instantly change the instrument into Hygrometer Mode. Test ambient conditions of temperature, mixing ratios and dew point with a RH range of 0 to 99% and a humidity accuracy of ±2%. Furthermore with the addition of the handheld or hammer probe,  the CMEX5 becomes a resistance type pin meter which can determine the moisture content of wood or wood based items.

Flooring Installation Quick Check Kits: With two choices available, the standard (IQCK) and Plus version (IQCPK), these sets are ideal for testing moisture content of concrete floor & ambient dew-point conditions at the time of installation. The Plus kit includes an upgraded Tramex Infrared Thermometer and the Tramex CMEX5 as opposed to the CME5 included with the standard kit.

Concrete Coatings Kits: Split into two kits, the Installer Tech Kit (CCTK) and Inspector Kit (CCIK) are for use before applying any sort of coating to a concrete floor. These sets provide instant, non-destructive quantitive moisture measurements alongside similar crucial information. The CCTK kit includes a Tramex Feedback Datalogger for long term monitoring of ambient relative humidity, dew point and temperature. Whilst the CCIK kit is supplied with an Infrared Thermometer for determining surface temperatures against dew-point conditions to avoid contestation related issues.

Flooring Inspection Kits: The ultimate in flooring inspection pre or post installation, this range of kits includes four sets. Each is supplied with either a CME5 or CMEX5 Concrete Moisture Encounter Meter. This is the choice for you should a job require a much more in-depth inspection. This series is designed for instant, non-destructive quantitive moisture testing of concrete & wood flooring and relative humidity and dew point testing.

  • Flooring Installer Tech Kit (FTK)
  • Flooring Inspector EZ Kit (FZK)
  • Flooring Inspector Kit (FIK)
  • Flooring Master Kit (FMK)

These kits are loaded with a multitude of advanced accessories such as a Feedback Datalooger, Contact Temperature Probe or Hygro-i2 Relative Humidity Probe, Infrared Thermometer, Heavy Duty Pin-Type Wood Probe, ME5 Moisture Encounter 5 and so much more. For a full breakdown of what is included in each set, please consult our Tramex Flooring Inspection Kits product page.

Concrete Determinator: What sets The Determinator apart from the other choices is that the standalone unit is actually itself an accessory for a Moisture Meter. However, don't let the term accessory fool you, this is still a vital piece of kit. The Determinator extends the capabilities of the entire Tramex Concrete Moisture Encounter range, proving in-situ moisture content readings and determining whether moisture is originating from below or above. The standalone set (CDK) is supported by two alternative kit choices, the Tech Kit (CDTK) including a CMEX5 Moisture Meter and the Inspector Kit (CDIK) boasting a CMEX5, IR Thermometer, Hygro-i2 Relative Humidity Probe and much more. Please see our Tramex Concrete Moisture Probe - The Determinator page for more information.

Tramex Kit Tramex App CMEX5 Meter CME5 Meter Datalogger Unit Contact  Probe ME5 Hygro Probe Infra-Red Thermometer Extension Handle
Installation Quick Check
- IQCK
- - - - - -
Installation Quick Check Plus
- IQCPK
- - - - - -
Concrete Coatings Tech
- CCTK
- - - -
Concrete Coatings Inspector
- CCIK
- - - - -
Flooring Tech
- FTK
- - - -
Flooring EZ
- FZK
- - - - - -
Flooring Inspection
- FIK
- - - -
Flooring Master
- FMK
- -
The Determinator
Standalone
- - - - - - - - -
The Determinator
Tech
- - - - - - -
The Determinator
Inspector
- - - -
