Trend VDV II Plus Voice, Data and Video Cable Verifier with AnyWARE Cloud R158008

Trend Networks
SKU: TRENDVDVIIPLUS
  • Voice, Data and Video Cable Verifier
  • Compatible with Trend AnyWARE App and Cloud
  • 0.3 - 450m Length range
More Info
In Stock - Available Next Day

Save up to 30% on TREND Networks products: Tone & Probe, VDV II, VDV II Plus, VDV II Pro, PoE Pro and FiberMASTER Mini OTDR.
Discounts are already applied to the price displayed. Promotion ends on 30th April 2024.

Trend VDV II Plus Voice, Data and Video Cable Verifier with AnyWARE Cloud R158008

The Trend VDV II Plus Voice, Data & Video Cable Verifier with AnyWARE Cloud R158008 allows for the installation, maintenance and troubleshooting of data, voice and video cabling. Complete with Coax (F-Type) 6 Pin (RJ11/12) and 8 Pin (RJ45) connectors for verification of low voltage copper cables, the Trend VDV II Plus performs a number of tests for Miswires, Opens, Shorts and Split pairs, with further testing for UTP and STP cabling with support for all common LAN cables (TIA 568A/B wiring). The large 2.9" back lit display shows test results instantly on screen. The 0.3 to 450m length range helps to check the integrity of copper cables.

The VDV II offers voltage protection with cable testing disabled should <2V be detected offering audible and visual warnings to prevent damage to the tester. The unit provides a Media Service Detection by identify analogue (PBX) and digital (ISDN) telephone services.

Trend AnyWARE App and Cloud

Then Trend VDV II Plus is compatible with the free AnyWARE mobile app where test results can be stored in real time and then uploaded to AnyWARE Cloud with a simple push of a button where users can generate professional PDF reports to send to customers and colleagues. The Trend VDV II Plus allows users to attach photos to test results allowing for these to be included in any reports generated.

With free unlimited data storage and continuous backup users are able to store test results without the worry of losing data. The Cloud runs in a web browser that is compatible with PC, Mac, Linux, Android and iOS.

The analogue tone generator of the VDV II Plus offers multiple tones which can be used with most analogue tracing probes when finding faulty or mislabelled cabling. The port blink function on the unit will identify the switch port that the cable is connected to.

The Trend VDV II Plus is battery operated and is enclosed in a robust and rugged outer shell, with an included carry case offering further protection.

Trend VDV II comparison table

The Trend VDV II is available in three options listed below:

  Trend VDV II Trend VDV II Plus Trend VDV II Pro
Voice, Data and Video Cable Verifier ✔ ✔ ✔
Coax (F-type), 6 Pin (RJ11/12) and 8 Pin (RJ45) Connectors ✔ ✔ ✔
Tests for Miswires, Opens, Shorts and Split Pairs ✔ ✔ ✔
Tests UTP and STP cabling ✔ ✔ ✔
Analogue Tone Generator ✔ ✔ ✔
Voltage Protection ✔ ✔ ✔
Instantaneous Result ✔ ✔ ✔
Compatible with Optional Numbered Remotes ✔ ✔ ✔
AnyWARE Cloud Connectivity and reporting via the AnyWARE App ✔ ✔ ✔
Larger 2.9" Display   ✔ ✔
Backlit screen   ✔ ✔
Network Switch Port Flashing   ✔ ✔
Cable Length   ✔ ✔
Distance to Open / Cut Pairs   ✔ ✔
Carry Case & Test Leads   ✔ ✔
10M/100M/1G/2.5G/5G/10G Ethernet Speed Detection     ✔
Distance to Open / Short (TDR)     ✔
PoE Detection with Voltage per Pair     ✔
Analogue and Digital Phone Service Detection     ✔
Analogue/Digital Tone Generator     ✔

Key Features

  • Coax (F-type), 6 Pin (RJ11/12) and 8 Pin (RJ45) Connectors
  • Tests for Miswires, Opens, Shorts and Split Pairs
  • Tests UTP and STP cabling
  • Analogue Tone Generator
  • Voltage Protection
  • Instantaneous Results
  • Compatible with Optional Numbered Remotes
  • AnyWARE Cloud connectivity and reporting via the AnyWARE App
  • Large 2.9" back lit display
  • Network switch port flashing
  • Cable length
  • Distance to Open/Cut pair
  • Carry case and test leads included
  • 0.3 to 450m length range

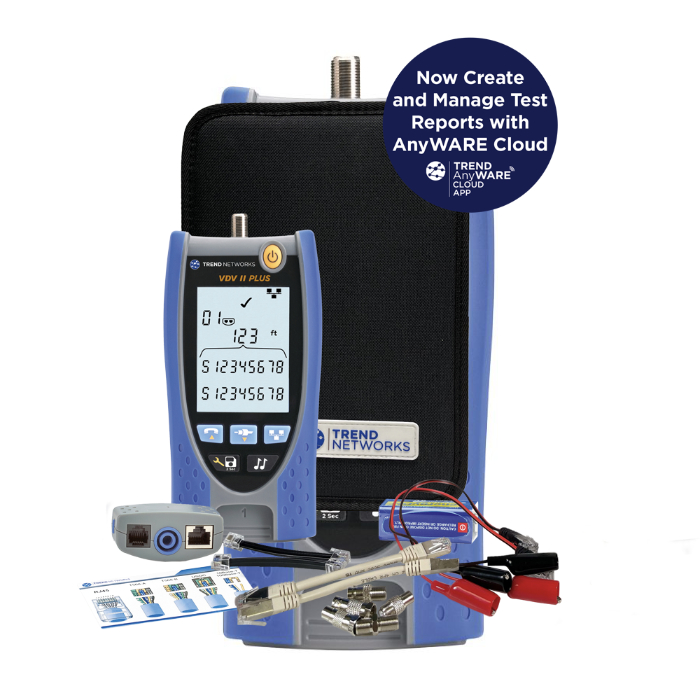

What's In The Box?

  • Voice, Data and Video Cable Verifier
  • Dual port remote unit
  • Coax Remote unit
  • Alkaline battery
  • Multi language user guide
  • 2 x screened RJ45 to RJ45 cable 150mm
  • 2 x RJ11/12 to RJ11/12 cable 100mm
  • 1 x F-Type plug to F-Type plug cable 230mm
  • 1 x F-81 barrel splice
  • 1 x BNC female to F-type male adaptor
  • 1 x BNC female to F-type female adaptor
  • 1 x RCA female F-type male adaptor
  • 1 x RCA female to F-type female adaptor
  • 1 x wallet wiring card
  • 1 x carry case
Specification
  • Dimensions: 160 x 76 x 36mm
  • Weight: 0.26kg
  • Battery type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)
