Trend VDV II Pro Voice, Data & Video Cable Verifier with AnyWARE Cloud R158005

Trend Networks
SKU: TRENDVDVIIPRO
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

In Stock - Available Next Day
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 345 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • Document proper operation when installing, maintaining and troubleshooting data, voice and video cabling
  • PoE and Ethernet detection
  • Utilises Time Domain Reflectometry (TDR) to measure cable length and provide distance to fault information

Related Categories

Copper and Fibre Data Cable Testers
Description

Trend VDV II Pro Voice, Data & Video Cable Verifier with AnyWARE Cloud R158005

The Trend VDV II Pro Voice, Data & Video Cable Verifier (R158005) eliminates guesswork and provides proper documentation and operation when installing, maintaining and troubleshooting data, voice sand video cabling. The VDV II can perform standard tests for copper cabling with a number of connections such as; Coax (F-type), 6 Pin (RJ11/12) and 8 Pin (RJ45) connectors. The VDV II Pro uses Time Domain Reflectometry (TDR) length testing and troubleshooting to pinpoint cable faults eliminating guess work when conducting testing by accurately measure the cable length and provide the distance to fault information.

AnyWARE App and Cloud

Using the AnyWARE cloud operators can standardise the workflow with comprehensive testing and documentation. The software allows for professional test reports to be produced and storage of data is both free and unlimited. The self hosted cloud access runs in a web browser and is compatible with PC, Mac, Linux, Android and iOS. Users have peace of mind that data won't be lost thanks to the clouds continuous back ups. The cloud provides operators with the ability to manage projects for different teams in different locations at the same time.

With free unlimited data storage and continuous backup users are able to store test results without the worry of losing data. The Cloud runs in a web browser that is compatible with PC, Mac, Linux, Android and iOS.

The Trend VDVII provides testing for misfires, Opens, Shorts and Split. The port identification function will help the user identity the switch port that the cable is connected too.

The Pro tester provides PoE detection with voltage information and displays the network speed of Ethernet up to 10 Gb/s and duplex (Half/Full) status of a network port. The Pro model VDV II provides a digital tone generator to trace cables.The verifier is protected from voltage, with cable testing disabled should >2V be detected and the user notified with audible and visual warnings.

The large 2.9" back lit screen provides users with a clear screen even in difficult environments with a 0.3 to 450m length range helps to check the integrity of copper cables. The Trend VDV II Plus is battery operated and is enclosed in a robust and rugged outer shell, with an included carry case offering further protection.



Trend VDV II comparison table

The Trend VDV II is available in three different options shown below:

  Trend VDV II Trend VDV II Plus Trend VDV II Pro
Voice, Data and Video Cable Verifier ✔ ✔ ✔
Coax (F-type), 6 Pin (RJ11/12) and 8 Pin (RJ45) Connectors ✔ ✔ ✔
Tests for Miswires, Opens, Shorts and Split Pairs ✔ ✔ ✔
Tests UTP and STP cabling ✔ ✔ ✔
Analogue Tone Generator ✔ ✔ ✔
Voltage Protection ✔ ✔ ✔
Instantaneous Result ✔ ✔ ✔
Compatible with Optional Numbered Remotes ✔ ✔ ✔
AnyWARE Cloud Connectivity and reporting via the AnyWARE App ✔ ✔ ✔
Larger 2.9" Display   ✔ ✔
Backlit screen   ✔ ✔
Network Switch Port Flashing   ✔ ✔
Cable Length   ✔ ✔
Distance to Open / Cut Pairs   ✔ ✔
Carry Case & Test Leads   ✔ ✔
10M/100M/1G/2.5G/5G/10G Ethernet Speed Detection     ✔
Distance to Open / Short (TDR)     ✔
PoE Detection with Voltage per Pair     ✔
Analogue and Digital Phone Service Detection     ✔
Analogue/Digital Tone Generator     ✔



Key Features

  • AnyWARE cloud compatibility
  • Multimedia support
  • UTP and STP testing
  • TDRV length testing and troubleshooting
  • Selectable 4-Pair/2-Pair
  • Large backlit screen
  • Media service detection
  • Tone generator
  • PoE detection
  • Ethernet detection
  • Storage and Protection of remote unit
  • Voltage protection
  • Attach images to test results
  • Ethernet link speed
  • Accurate fault finding saving both time and money
  • Instant results
  • No need for separate testers
  • Validate voice and data services faster
  • Protection from voltage for the tester
  • Cable tracing
  • Port identification

What's In The Box?

  • Voice, Data and Video Cable Verifier
  • Dual port remote unit
  • Coax Remote unit
  • Alkaline battery
  • Multi language user guide
  • 2 x RJ45 to alligator clip cable 390mm
  • 2 x screened RJ45 to RJ45 cable 150mm
  • 2 x RJ12 to RJ12 cable 100mm
  • 1 x F-type plug to F-type plug cable 230mm
  • 1 x F-81 barrel splice
  • 1 x BNC female to F-type male adaptor
  • 1 x BNC female to F-type female adaptor
  • 1 x RCA female to F-type male adaptor
  • 1 x RCA female to F-type female adaptor
  • 1 x wallet wiring card
  • 1 x carry case
Specification
Show Trustpilot Reviews
Specification
Yes
  • Dimensions: 160 x 76 x 36mm
  • Weight: 0.26kg
  • Battery type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)
Reviews
Trustpilot

Accessories

  1. Trend Amplifier Probe - R180001
    Trend Amplifier Probe - R180001
    SKU: TRENDR180001
    £57.00 (ex VAT)
    £68.40 (inc VAT)
    In Stock
  2. Trend 158051 RJ45 Identifiers for VDV II
    Trend 158051 RJ45 Identifiers for VDV II
    SKU: IDEAL158051
    £55.00 (ex VAT)
    £66.00 (inc VAT)
    In Stock
  3. Trend 158053 Coax Remote Units for VDV II
    Trend 158053 Coax Remote Units for VDV II
    SKU: IDEAL158053
    £58.00 (ex VAT)
    £69.60 (inc VAT)
    In Stock
  4. Trend VDV II Accessory Main And Coax Remote #1
    Trend VDV II Accessory Main And Coax Remote #1
    SKU: IDEAL158055
    £44.50 (ex VAT)
    £53.40 (inc VAT)
    Typically ships in 1-3 working days

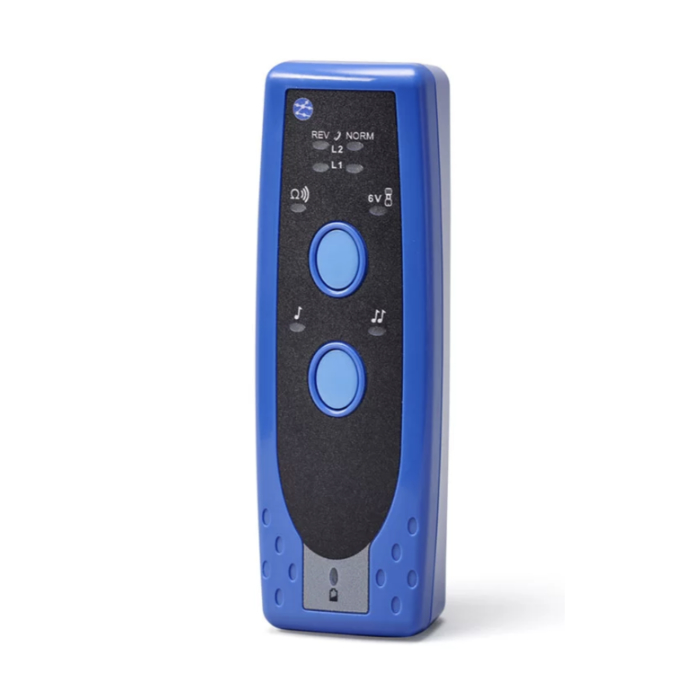

  5. Trend Tone Generator - R180002
    Trend Tone Generator - R180002
    SKU: TRENDR180002
    £54.00 (ex VAT)
    £64.80 (inc VAT)
    Typically ships in 2-3 working days

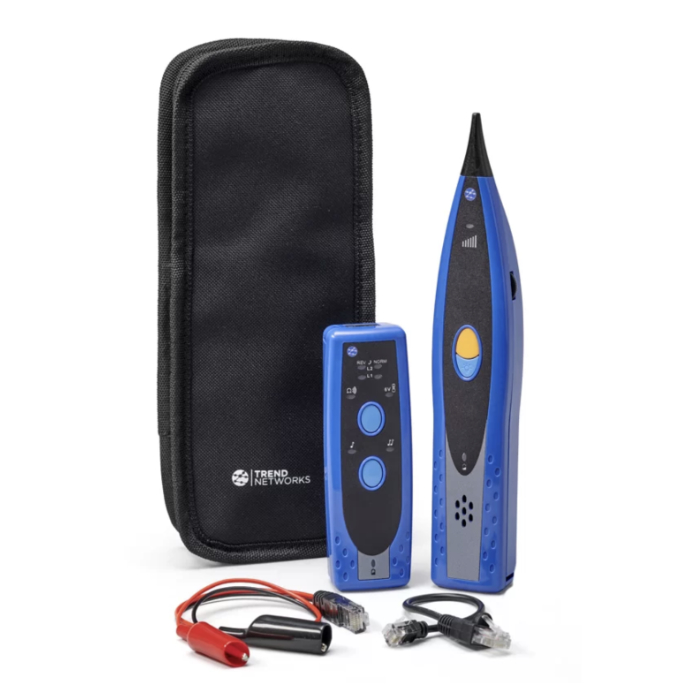

  6. Trend Tone & Probe Kit - R180000
