Key Features
  • Perfect accessory for PEL & Qualistar Power Quality Analysers
  • 140mm clamping diameter, 450mm length
  • 100mA to 10kA AC measurement range

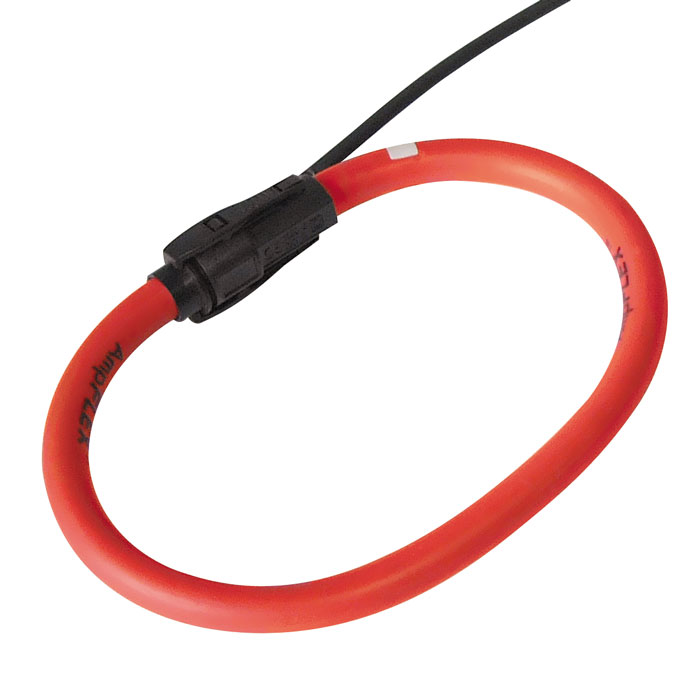

Chauvin Arnoux A193-450 Power Quality Clamp

An ideal accessory for PEL and Qualistar Power Quality Analysers, the Chauvin Arnoux A193-450 Power Quality Clamp offers a clamping diameter of 140mm, a length of 450mm and a measurement range of 100mA to 10kA AC.

With an IEC 61010 rating of 1,000V CAT III / 600V CAT IV, the A193-450 is an ideal accessory for use with any Chauvin Arnoux Power Quality Analyser.

Chauvin Arnoux Power Quality Clamp Options

Model Measurement Range Clamping Ø / Length IEC 61010
MN93 500mA to 200A AC 20mm 600V CAT III / 300V CAT IV
MN 93A 0.005A to 100A AC 20mm 600V CAT III / 300V CAT IV
MA193 100mA to 10kA AC Ø 70 mm / 220 mm 1,000V CAT III / 600V CAT IV
PAC93 1A to 1,000A AC, 1A to 1,300A DC 1 x Ø 39mm, 2 x Ø 25mm 600V CAT III / 300V CAT IV
A193-450 & A196-450 100mA to 10kA AC Ø 140mm / 450mm 1,000V CAT III / 600V CAT IV
A193-800 100mA to 10kA AC Ø 250mm / 800mm 1,000V CAT III / 600V CAT IV
C193 1A to 1,000A AC 52mm 600V CAT IV
E3N 50mA to 10A AC/DC, 100mA to 100A AC/DC 11.8mm 600V CAT III / 300V CAT IV
