Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser w/ 4 x FREE CLAMPS and Software
SKU: CA8336BUNDLE
- Provides comprehensive snapshot of power quality and energy consumption
- Measures voltage, frequency, power, energy, harmonics, transients and more
- Handheld design with 5 voltage & 4 current channels, large TFT screen & built-in memory
- 'Try Before You Buy' available on this product
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£3,465.00
£4,158.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
For a limited time, get a FREE Chauvin Arnoux DataView Reporting Software (worth £393.95) and 4 x A193-450 Flexi Clamps (worth £620) when you buy the Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser. Subject to availability.
Chauvin Arnoux CA8336 Qualistar+ Power Quality Analyser
Perfect for extended power quality analysis or swift one-off measurements, the Chauvin Arnoux CA8336 Qualistar+ Power Analyser offers a simple and effective method of gauging a system’s power quality and overall energy usage.
This portable device is handheld, compliant with CAT III 1000V & CAT IV 600V and is suitable to leave for analysis over a longer time period. The CA8336 can be used to easily conduct corrective or preventative work, improving overall power quality and energy efficiency to save you money.
The CA8336 is feature-packed, allowing easy analysis of all electrical and associated power factors. It boasts 5 voltage & 4 current channels, a large full-colour TFT screen and PC connectivity, whilst offering peak detection and capturing parameters, transients, alarms and waveforms simultaneously, making it ideal for your power analysis needs.

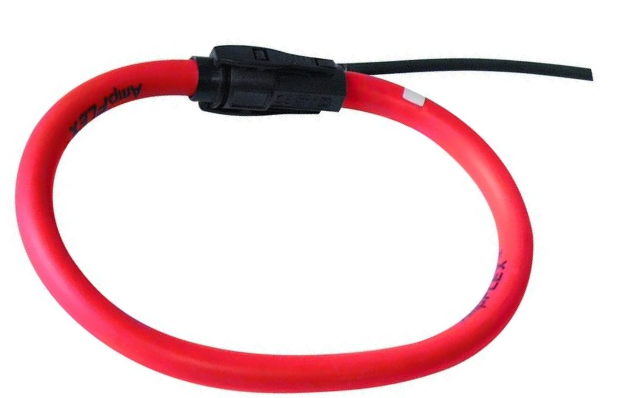

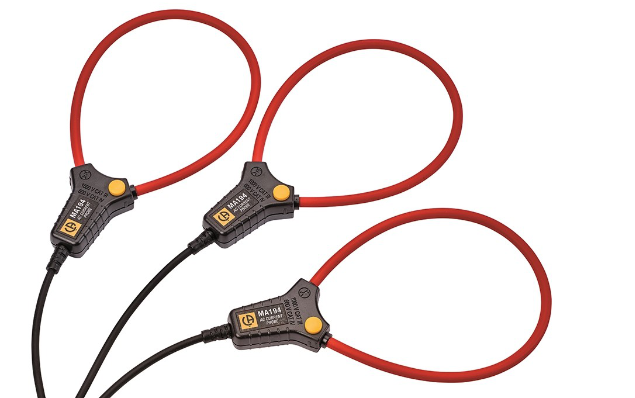

The CA8336 Qualistar+ Power Analyser is compatible with a range of Chauvin Arnoux clamps, with the manufacturer recommending their MN93, MN93A, MA193, PAC93, A193-450, A193-800, C193 and E3N current clamps to carry out current measurements.
| Model | Measurement Range | Clamping Ø / Length | IEC 61010 |
|---|---|---|---|
| MN93 | 500mA to 200A AC | 20mm | 600V CAT III / 300V CAT IV |
| MN 93A | 0.005A to 100A AC | 20mm | 600V CAT III / 300V CAT IV |
| MA193 | 100mA to 10kA AC | Ø 70 mm / 220 mm | 1,000V CAT III / 600V CAT IV |
| PAC93 | 1A to 1,000A AC, 1A to 1,300A DC | 1 x Ø 39mm, 2 x Ø 25mm | 600V CAT III / 300V CAT IV |
| A193-450 & A196-450* | 100mA to 10kA ac | Ø 140mm / 450mm | 1,000V CAT III / 600V CAT IV |
| A193-800 | 100mA to 10kA AC | Ø 250mm / 800mm | 1,000V CAT III / 600V CAT IV |
| C193 | 1A to 1,000A AC | 52mm | 600V CAT IV |
| E3N | 50mA to 10A AC/DC, 100mA to 100A AC/DC | 11.8mm | 600V CAT III / 300V CAT IV |
*A196-450 is IP67-rated version of A193-450 clamps, suitable for use with the CA8435.
Below, we have included a comparison table showing the key features of each of the Chauvin Arnoux CA series analyers. This table is intended to help you make an informed purchasing decision.
| CA 8331 | CA 8333 | CA 8336 | CA 8436 | |
|---|---|---|---|---|
| # of channels | 3U/4I | 3U/4I | 4U/4I | 4U/4I |
| # of inputs | 4V/3I | 4V/3I | 5V/4I | 5V/4I |
| IEC 61000-4-30 | N/A | EN50160 reports | EN50160 reports | EN50160 reports |
| Voltage (TRMS AC+DC) | 2V - 1000V | 2V - 1000V | 2V - 1000V | 2V - 1000V |
| Voltage ratio | Up to 500kV | Up to 500kV | Up to 500kV | Up to 500kV |
| Current (TRMS AC+DC) | ✔ | ✔ | ✔ | ✔ |
| MN clamps | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC |
| C193 clamps | 1A to 1,000 AAC | 1A to 1,000 AAC | 1A to 1,000 AAC | 1A to 1,000 AAC |
| AmpFlex or MA clamps | 100mA to 10,000AAC | 100mA to 10,000AAC | 100mA to 10,000AAC | 100mA to 10,000AAC |
| PAC93 clamp | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC |
| E3N clamp | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC |
| J93 | 50A to 3,500 AAC/5000 ADC | |||
| Current ratio | Up to 60kA | Up to 60kA | Up to 60kA | Up to 60kA |
| Frequency | 40Hz to 69Hz | 40Hz to 69Hz | 40Hz to 69Hz | 40Hz to 69Hz |
| Power | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), PF, DPF, cos f, tan f |
| Energy | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh |
| Harmonics | ✔ | ✔ | ✔ | ✔ |
| THD | ✔ (0-50th order) | ✔ (0-50th order) | ✔ (0-50th order) | ✔ (0-50th order) |
| Expert Mode | ✔ | ✔ | ✔ | |
| Transients | 50 | 210 | 210 | |
| Flicker | PST | PST | PST & PLT | PST & PLT |
| Unbalance | Yes | Yes | Yes | Yes |
| Recording - min/max | Yes | Yes | Yes | Yes |
| of a selection of parameters at max. sampling rate | 4 hrs to 2 weeks | Afew days to sevearl weeks | 2 weeks to several years | 2 weeks to several years |
| Alarms | 4000 to 10 different types | 10000 to 40 different types | 10000 to 40 different types | |
| Peak | Yes | Yes | Yes | Yes |
| Vectorial representation | Automatic | Automatic | Automatic | Automatic |
| Display | Colour 1/4 VGA TFT - 320 x 240 | Colour 1/4 VGA TFT - 320 x 240 | Colour 1/4 VGA TFT - 320 x 240 | Colour 1/4 VGA TFT - 320 x 240 |
| Capture of screens & curves | 12 | 12 | 50 | 50 |
| Electrical safety | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV |
| Ingress protection | IP53 | IP53 | IP53 | IP67 |
| Languages | 27+ | 27+ | 27+ | 27+ |
| Battery life | up to 13 hours | up to 13 hours | up to 13 hours | up to 13 hours |
| Interface | USB | USB | USB | USB |
| Power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply |
| EN50160 report | Yes - DataView Software | Yes - DataView Software | Yes - DataView Software | |
| Dimensions/weight | 240 x 180 x 55 - 1.9kg | 240 x 180 x 55 - 1.9kg | 240 x 180 x 55 - 1.9kg | 270 x 250 x 180mm / 3.7kg |
| Warranty | 3 years | 3 years | 3 years | 3 years |
We know the importance of getting the right instrument for the job, so we now offer a "Try Before You Buy" option on many of our products to help you make a more informed buying decision. Simply give us a call or click here to find out more.
Chauvin Arnoux CA8336 Key Features
- Handheld & simple to use
- Gain a snapshot and full analysis of electrical systems
- Easy access to functions and measurement tools
- Voltage and current inputs equipped with coloured identification rings
- Large colour TFT screen
- Battery life of approx. 13 hours
- CAT III 1000V and CAT IV 600V
- Measures voltage, frequency, power, energy, harmonics, transients, flicker, inrush & more
- 10000 alarms
- Peak detection
- PC connectivity
- True InRush function
What's In The Box?
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
